Competitive Price Multi Spindles Raintech CNC Tube Sheet Drilling Machine for Sale

Competitive Price Multi Spindles Raintech CNC Tube Sheet Drilling Machine for Sale

US$52,000.00
1-4 Sets
US$51,500.00
5-9 Sets
US$51,000.00
10+ Sets

Basic Info.

Model NO.
CNC Tube Sheet Drilling Machine
Structure
Bench Drilling Machine
Layout
Horizontal
Controlling Mode
CNC
Number of Shaft
6
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
CNC or Not
CNC
Function
Drilling Milling Machining
Machine Type
Drilling Equipment
Pipe Material
Carbon Steel
After-Sales Service Provided
Online Support
Processing
Vertical Milling Machine
Feature
Safety
Table Size
2000*1600
Key Words
Micro Hole Drilling Machine
Transport Package
Packages
Specification
4550 x 3050x 3520mm
Trademark
RAINTECH
Origin
China
Production Capacity
100 Sets/Month

Packaging & Delivery

Package Size
160.00cm * 150.00cm * 140.00cm
Package Gross Weight
102.000kg

Product Description

Competitive Price Multi Spindles Raintech CNC Tube Sheet Drilling Machine For Sale
Product Description
The PHD series is a gantry moving CNC high-speed drilling and milling machine, mainly used for drilling, shaving, chamfering, grooves inside holes and milling of flanges, heat exchangers, tubeplates, rotary supports and other workpieces. It can be used for internal cold high-speed drilling with hard alloy drill bit or external cold drilling with high speed steel twist drill bit. Drilling depth of 10D (10x diameter) can be achieved with special crown drill bit. The machining process is NC and easy to operate. It can realize automatic, high precision and many kinds of mass production.



Product Parameters
Model PHD1616 PHD2016 PHD2020
Processing range
LxW(mm) 1600x1600 2000x1600 2000x2000
Thickness(mm) 15-300
Sliding feeding spindle Number Spindle 1
Spindle Model BT40/BT50
Spindle speed(RMP) 30-4500
Feed Stroke(mm) 260
Tapping diameters(mm) M20
Motor Power Spindle servo motor 7.5/11KW
X Axis 2*2.3
Y Axis 2.3
Z axis 2.3
Positional accuracy(mm) 0.1
Repeatable Positional accuracy(mm) 0.08
Control mode Siemens 808D cnc system/PLC+upper computer

Product Application:
PHD Series machine is mainly used for drilling and milling of connection plates and anchor plates in steel structures, iron towers, bridges, machining and other industries. Drilling and milling of tube sheets, baffles and flanges in pan frying, petrochemical, pressure vessel and other industries; it can drill through holes, blind holes, stepped holes, hole end chamfering and light milling.

CONSISTS OF THE BELOW ITEMS
Machine Body
Working table
Moving Gantry

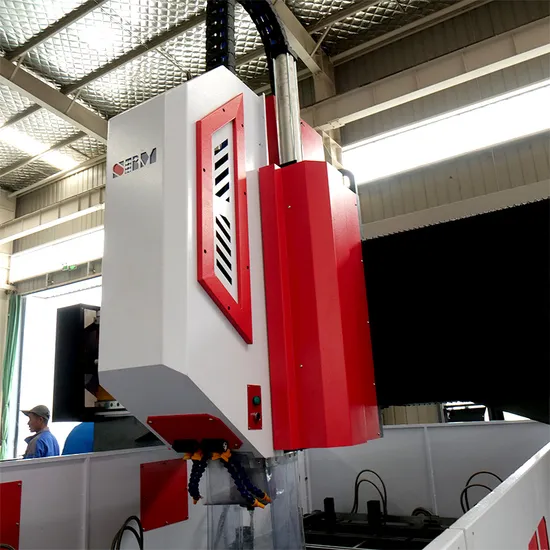

Vertical sliding pillow type power head
Hydraulic system
Pneumatic system
Cooling system
Centralized lubrication system
Electrical control system
Automatic chip removal system
WORKPIECE



Features:
The main spindle adopts square slide pillow, material is casting iron , more stable to avoid any vibraition when in high speed rotation.Z axis special design :servo guide rail and drilling bit on same center line Machine bed completely T slot structure , the T slot quantity and distance will depends on the smallest workpiece size of user,The whole machine is completely welded by thick plate after quenching , weight is heavier than PSD series,This model suitable for big flanges with less holes , can add chuck self centering for easy fix of flanges Double drives on both sides of the bed, double screw rods, double guide rails, wider gantry, larger and more stable gantry base, independent electrical control cabinet outside the gantry, using Siemens control system
Our customer visit

Feedback from our customers


certificate and patents

Company Profile
Shandong Raintech Sans Technology Co., Ltd. is a high-tech enterprise that integrates product development, designing, production, sales and service in metal roll forming and coils processing industry.
Our Products :including various kind of metal profile roll forming machines, such as solar strut panel roll forming machine, automobile bumper roll forming machine, green house structure roll forming machine, truck beam roll forming machine, highway crash barrier roll forming machine, etc. Tube mills and coils slitting line, cut to length line
Our History: Our factory established in 2008 by one of our company founder Mr. Xu, who was as leader of china roll forming technology research team in SINOMRCH more than 10 years. Since 2008, we started design , engineering and manufacturing of all kinds of roll forming lines, including many difficult lines at same level of world advance technology. At the same time, we also design and produce cut to length line, slitting line and tube mills on the high level quality in china.
Our Technical Strength : We have advance and earliest technology on metal forming and processing . Since 2008, have been succeed in many difficult lines which require high precision, high speed, and big strength used in railway, highway, metro system, electrode plate,solar structure , automobile etc. We have our special design on machine structure and rollers design, punching and cutting design to assure the speed , accuracy and life of machine. We are coincidental for bigger challenge in future on keep advanced in this field
Our Team :
We own an professional oversea marketing team leads by our CEO Ms. Rain
Main technical support team lead by Mr.Xu and after-sales service team with engineers.
We also have local service team in some countries all over the world
Our Service : We provide complete process on quality control, machine trial , TUV, SGS BV inspection before dispatch. And provide free installation and training at customer site. And moreover, we have our own professional local service team in some countries such as India, Egypt , Italy etc.
Our Goal : we have been devoted to the more advance technology in metal roll forming and processing field , trying our best to be the first level of roll forming technology in the world famous manufacture list Packaging & Shipping


FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.
2.Q: What are the payment terms?
A: L/C; T/T or other.
3.Q: How long is the delivery time?
A: 30 Days.
4.Q:How long is the warranty period?
A: 1 Years.
5. Q:Are you factory?
A: Yes. We accept to visit our factory before placing an order for our cnc machines.
