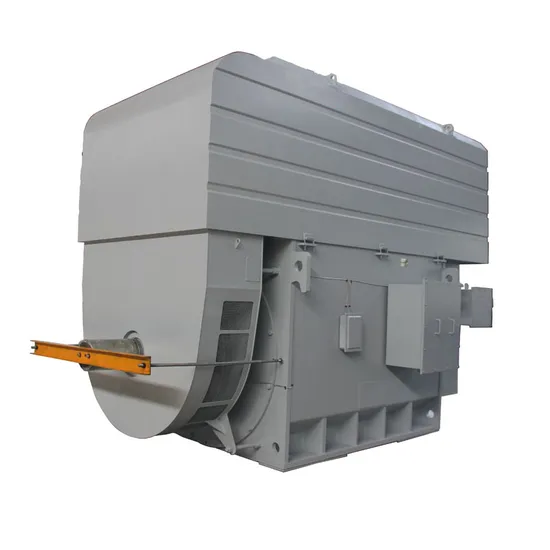

Large Sized High-Voltage Wound Rotor Slip Ring Motor

Product Description

The large high-voltage slip ring motor is a wound-type three-phase asynchronous motor. The power class, installation size and electrical performance of this type of motor are in compliance with relevant IEC standards. The basic installation method of the motor is the horizontal bottom angle (IMB3), the working system is the continuous working system (S1), and the wound rotor is made of Class F insulation material.
Large high-voltage slip ring motor bearings are divided into two types, rolling bearing and sliding bearing, depending on the motor power and speed. The rated frequency of the motor's power supply is 50Hz, the rated voltage is 6000V/10000V, and the basic type of protection is IP54. The motor slip ring housing can be protected to IP22 or IP23. Other voltage, frequency and degree of protection motors are also available upon request.
Large-scale high-voltage slip ring motor increases the setting and bearing temperature measuring device. It can also add heating device inside the motor. The shaft extension of the motor generally uses tangential keys. The motor carbon brush is not lifting structure. The front and rear bearing chambers of the motor are all There are oil filling and oil draining devices.
Large high voltage wound rotor slip ring motors can be used to drive a variety of different machines, such as compressors, pumps, crushers, cutting machines, transport machinery and other mechanical equipment, in the mining, machinery industry, petrochemical industry, power plants It is used as a prime mover in various industrial and mining enterprises. The motor used to drive the blower, coal mill, rolling mill and winch should indicate the purpose and technical requirements when ordering, and adopt special design to ensure reliable operation.
Center height range: H355 ~ 1000mm
Power range:185kW ~ 12000kW
Number of poles: 4/6/8/10/12
Rated voltage: 6000V/6600V/10000V/11000V
Rated frequency: 50HZ/60HZ
Protection level: IP54 or IP55
Insulation class: F
Work system: S1 (continuous)
Cooling method: IC611/IC616
Installation form: IMB3
Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)
Altitude: no more than 1000m
This type of motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).
The large high-voltage wound rotor slip ring motor can increase the large starting torque at a small starting current. The motor is suitable for applications where the capacity of the feeder line is insufficient to start the squirrel-cage rotor, the starting time is long, the starting is frequent, and the small-range speed regulation is required. This series of motors has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, convenient installation and maintenance.
The motor products manufactured by our company have obtained the ISO9001 quality management management system certification, passed the CCC/COC, China energy-saving product certification, and passed the certification certificates of CE/UL/IRIS/CAS and other European and American countries. The company strictly improves the quality and efficient motor products and services for users in strict accordance with the requirements of relevant product standards.
Main process flow of the motor
Motor stator: casing processing → punching press → iron core seating → coil making → weaving → dipping paint drying
Electronic rotor: blank shaft processing → iron core press installation → iron core cast aluminum → rotor string shaft → weave → dipping paint drying → dynamic balance
Motor assembly: stator rotor assembly → machine test → motor appearance coloring → packaging storage
