New Arrival Bode 1000cc Ssv Efi CVT EPA UTV 4X4

Product Description

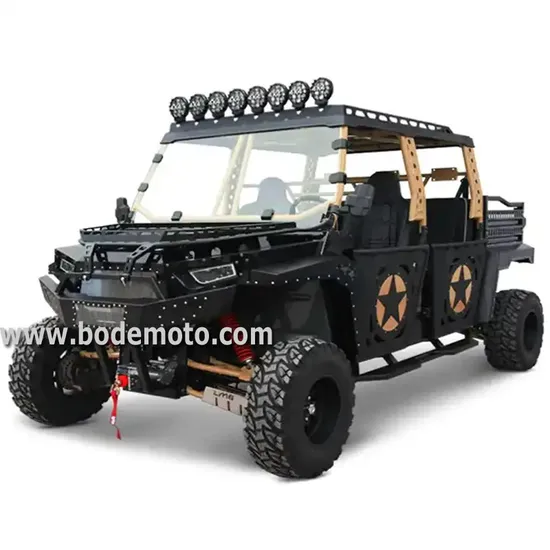

New Arrival Bode 1000cc SSV EFI CVT EPA UTV 4x4

40ft HQ Container 6Units
Packing Size 4000*1960*1290mm
Gross Weight 1030kg
CF 1000 CC Engine
CF 1000CC ENGINE TYPE:
V-TWIN CYLINDER, LIQUID COOLED, 4-STROKE, SOHC, 8-VALVE
ENGINE DISPLACEMENT: 963 CC
FUEL SYSTEM: BOSCH® EFI
MAX POWER OUTPUT: 71 HP @ 7000 RPM
MAX TORQUE: 60 FT. LBS. @ 6500 RPM
IGNITION: ECU
STARTING: ELECTRIC
TRANSMISSION:
CVTECH® AUTOMATIC
P/R/N/H/L
Dimensions
Overall Length×width×Height 3930 mm ×1950 mm ×2285mm
Cargo Box Dimensions
820 mm ×1480mm ×390mm
Dump 25° Estimated Dry Weight 968 kg
Front/Rea Box Capacity 50kg/200kg
Fuel Capacity 30L
Wheelbase 2990 mm
Front Tread 1670 mm
Rear Tread 1590 mm
Ground clearance 350 mm
Brakes
Front/Rear Barkes 4-Wheel Hydraulic Disc with
Additional Spesifications Dual-Bore Front and Rear
Cargo System Electric dump bed
Doors Metal Half Door
Lighting 4 D-series lights
Mirrors Rear mirror
Roof Metal Roof
Tires/Wheels
Electronic Power Steering Standard
Front Tires 29×9-14
Rear Tires 29×11-14
Wheels Cast Aluminum
Steering Rack & pinion Steering
Suspension
Front Suspension Dual A-arm
Rear Suspension Dual A-arm with Stabilizer Bar
Rear Suspension Dual A-arm with Stabilizer Bar
1.Q: what is UTV? A: UTV is the abrreviation of Utility Vehicle,namely a vehicle,which can be used as a tranportation tool in forest,hilly area,farm,and mine field,it can be also used in sports and relex,fire contro,patrol and security system.

2.Q: What can TNS UTV do for you?
A: Our UTV owns the whole characters which the the other UTV has.Its functions are as follows:
1) cargo loading in forest,hilly and farm area,such as log,rick and some animal.
2) Transportation tools
3) Guarding system

3.Q: How about the after sale system of your products?
A: Generally,we promise one year's free maintanance for the main parts such as engine,and six months for the easily broken parts.And we also provide suitable instruction to send our engineer to your country to help solve the problem if needed.

4.Q:Can we use our own logo and design?
A: Of course you can.But usually you provide the logo design and we do the stickers for you,if just for samples,we will add some extral fee for it consindering the whole cost.

5.Q:If we want to visit your factory,which is the nearest international and domestic airport?
A: Our factory is located in Yongkang city,zhejiang province,here are three airports you can chose:Yiwu,hangzhou and shanghai.And you can also take fast train to JInhua west station,and we can pick up you fron there. Both yongkang west and east station is available.
We supply you 6 month for warranty time, during the warranty time, we supply you free parts!!!
