US$100.00-500.00
|
1 Piece
(MOQ)
|
Basic Info.
Output Type
AC Single Phase
Certificate
RoHS/CE/Noise/EU-V/EPA/Carb/EMC/SGS/ISO
Lubrication Oil
SAE 5W/30
Engine Type
Ohv 4 Stroke, Air-Cooled, Single Cylinder
Voltage
230V/240V/115V/120V/
Transport Package
Brown Carton Packing
Specification
500*440*480mm
Production Capacity
5000000/Month
Product Description
Detailed Photos
Product Parameters
Unit parameters |

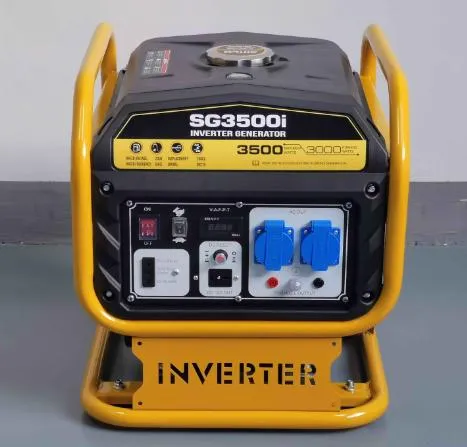

Unit type | SG3000i/ Open shelf inverter generator |
Appearance size / net weight | L593*W592*H502 /45KG(Installation of wheels) |
Engine parameters | SH210 |
waveform | Pure sine waveform,Distortion rate <3THD,PF=1 |
AC output | Rated power | 3.0KW-European |
maximum power | 3.5KW-European |
Rated voltage | 230V50Hz-European |
Rated current | 15A-European |
DC output | DC12V8A |
Tank volume | 15L\440g/Kw.h (Rated load) |
Electronic speed regulation | 2800-3800rpm |
European panel (3.03.2.03.06.0103) | Electric door lock,Digital instrument,2-European socket,DC12V socket,USB5V socket,switch,Grounding terminal |
American panel (3.03.2.03.06.0109) | Electric door lock,CO Alarm,Digital instrument,1-USA20A6,1-USA30A4,DC12V socket,USB5V socket,20Aoverload protection,Parallel terminal,Grounding terminal |
Protector | Intelligent protection of frequency converter |
Noise Level(No load~Full load)(LwA)/7M | 65~75dB(A) |
Engine parameters |
Type | 4-Stroke,OHV air-cooled gasoline engine |
Dimensions | 397*330*260(L×W×H) |
Displacement | 208cc |
Cylinder bore stroke | φ70mm x 54mm |
Compression ratio | 8.5:1 |
Maximum output power | 7HP/3600 rpm |
Minimum fuel consumption rate | ≤374g/kW.h |
Startup mode | Manual start + electric start |
Ignition mode | T.C.I |
carburetor type | Butterfly valve + electronic speed regulation |
Spark plug type | F6RTC |
Type of air cleaner | Polyurethane foam plastic filter element |
Output mode | Horizontal axis / counterclockwise (front) |
Fuel and oil | Fuel model | RQ90aboved |
Fuel oil | SAE5W/30 |
oil capacity | 0.6L |
Company Profile
WENZHOU SINCO POWER TECHNOLOGY CO., LTD. was founded in March 2019. Our president is the original founder of a well-known leading enterprise in Rui'an city. After 30 years efforts, "Ruixing" has become a very famous brand in the world. Our team members has a 20 years experiences in manufacturing of Gasoline/ Diesel Generator, Engines, Water Pumps, Pump body, which had built up over 3 million power equipments in the past 20 years and had already got a high reputation in terms of quality in generator/ water pump industries. SINCO equip with advanced production lines for casting, metal plate processing, machining and coating, which is a modern enterprise that integrates scientific research and development, production, sales and service, and import and export trade of gasoline & diesel,engine, generator set, water pump set and water pump. As one of the leading company in terms of company scale, technical strength and product quality within the industry, SINCO has established stable cooperation with international well-known companies and has obtained a series of relevant certifications such as ISO9001, CE, GS, EMC, NOISE, EC-V, EPA, CARB, etc.
.
CERTIFICATE
PRODUCTION LINE
EXHIBITION
PACKING AND DELIVERY
After Sales Service1. Supply you top quality products with competitive price under the same quality level, different products according to your
different market demands.
2. Strictly control the whole production process and guarantee punctual delivery, test each of our products one by one before
packing to ensure the quality.
3. Supply you a good pre-sale, in-sale and after-sale Service. We're not just working partners, but also Friends and Family.
4. We have engine engineer,water pump engineer, generator engineer,strong technical team.
5. When you come to our Factory, we will try our best to supply you all services to make you feel like at home.
We promise that:
every unit you purchase from Sinco will come with warranty of one-year or 1000hours which comes first. During this period,
any damage caused by us will get free spare parts for repair. Even out of warranty period, you can still contact us for spare parts
purchase for maintenance and repair.FAQ1. Are you a manufacture or trading company?
We are a manufacture specilized in producing gasoline&diesel engine/generator/pump set, water pump.
2. What kind of certificate can you offer?
ISO, CE,GS,EPA,CARB,NOISE,EC-II, ROHS
3. Can you accept OEM?
Yes, we can accept OEM.
4. What is your warranty period?
Our warranty: 1 year Or 1000 hours whichever comes first.
5. What's your delivery time?
30-40 days for container order and 20 days for sample order.
