Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.5~1.0m³
Keywords
Chinese Excavator Digger
Name
6 Ton Excavator Digger
Bucket Digging Force
48.3kN
Application
General-Purpose Excavator
Origin
Xuzhou, Jiangsu, China
Production Capacity
500000units/Year
Packaging & Delivery
Package Size
601.00cm * 204.00cm * 265.00cm
Package Gross Weight
6000.000kg
Product Description
Product Description

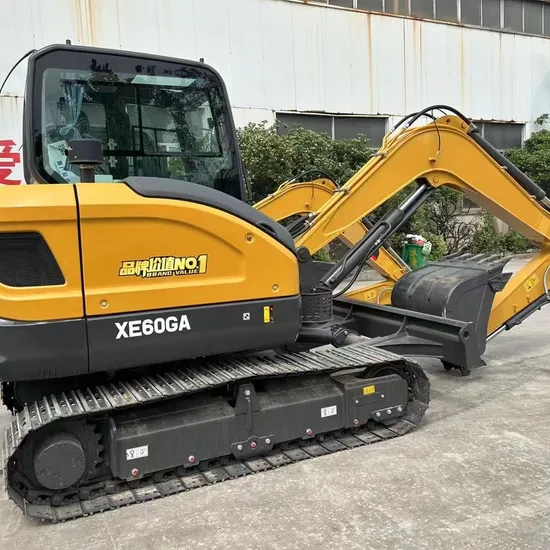

Top Brand 6 Ton 0.25cbm Bucket Capacity Mini Excavator XE60GA on Sale
Efficiency and Power: The XE60GA is powered by a custom low-speed, high-torque engine that works in harmony with its hydraulic system, resulting in a 5% improvement in fuel efficiency. The fuel tank capacity is increased by 18%, extending the machine's operational range between refuels.
Enhanced Structure and Performance: The excavator features an enlarged body and chassis, paired with a large-capacity bucket for increased stability and power during operations. A standard bulldozer blade and hydraulic lock are included for added stability and operator safety.
Advanced Control and Comfort: Equipped with a newly optimized second-generation main valve for smoother control and more precise micro-operations. The maintenance-free rotary motor offers a 13% increase in torque, easing rotational tasks. The spacious deluxe cab comes with a one-touch start, high-definition touchscreen, and a multi-mode sound system, enhancing operator comfort and convenience.
Optimized Operator Environment: The XE60GA has undergone whole vehicle NVH optimization, reducing vibration and noise for a quieter, more comfortable operator environment. It includes a high-power automatic climate control system with surround air distribution and a fully sealed, positive-pressure cab with a standard fresh air system.
Maintenance and Versatility: The large hood opening provides easy access to the radiator, engine filters, and internal components for convenient maintenance. The XE60GA offers multiple bucket sizes and is compatible with various attachments like breakers and augers, catering to diverse working conditions.
Product Parameters
Description
|
| Unit
| Parameter value
|
Operating weight
|
| Kg
| 6000
|
Bucket capacity
|
| m³
| 0.4-0.52
|
Engine
| Model
| /
| BB-4BG1TRP
|
No. of cylinders
| /
| 4
|
Output power
| kw/rpm
| 72.7/2200
|
torque/speed
| N.m
| 337.6/1600
|
Displacement
| L
| 4.329
|
Hydraulic system
| Main pump
| /
| 2
|
Rated flow of main pump
| L/min
| 2×123
|
Pressure of prime valve
| MPa
| 31.4/34.3
|
Pressure of travel system
| MPa
| 34.3
|
Pressure of swing system
| MPa
| 25
|
Pressure of pilot system
| MPa
| 3.9
|
Oil Capacity
| Fuel tank capacity
| L
| 250
|
Hydraulic tank capacity
| L
| 130
|
Engine oil capacity
| L
| 14
|
Appearance size
| Overall length
| mm
| 7770
|
Overall width
| mm
| 2512
|
Overall height
| mm
| 2880
|
Width of platform
| mm
| 2512
|
Length of crawler
| mm
| 3660
|
Overall width of chassis
| mm
| 2490
|
Width of crawler
| mm
| 500
|
Track length on ground
| mm
| 2910
|
Crawler gauge
| mm
| 1990
|
Clearance under counterweight
| mm
| 964
|
Min. ground clearance
| mm
| 478
|
Min. tail swing radius
| mm
| 1805
|
Height of track
| mm
|
|
Working scope
| Max. digging height
| mm
| 8641
|
Max. dumping height
| mm
| 6181
|
Max. digging depth
| mm
| 5538
|
Max. vertical wall digging depth
| mm
| 4727
|
Max. digging reach
| mm
| 8296
|
Min. swing radius
| mm
| 2335
|
Worker
| Length of boom (Standard)
| mm
| 4600
|
Length of arm (Standard)
| mm
| 2510
|
Bucket capacity (Standard)
| m³
| 0.52
|
Length of boom (Optional)
| m³
| /
|
Length of arm (Optional)
| m³
| /
|
Bucket capacity (Optional)
| m³
| 0.4
|
