Fuel Delivery 2.5" Unloading Diesel Oil Gas Station Pump

Product Description

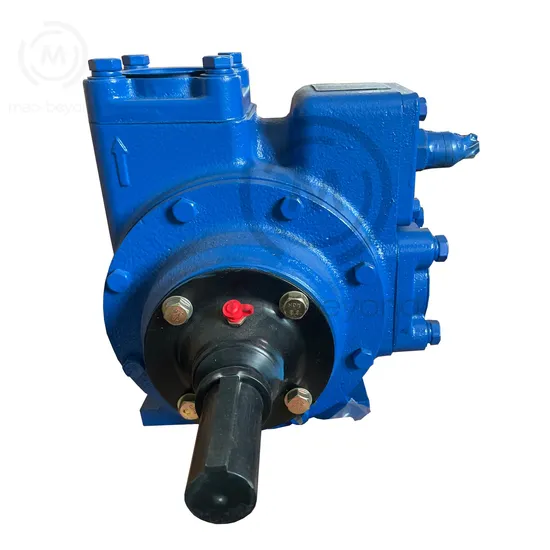

Product Description YB series rotary vane pump
YB series Self-priming roatry vane pump with internal by-pass valve, The pumps use a motor with sliding vanes to draw the liquid. The material of construction is nodular iron with sliding vanes built in a special self lubricating material . Due to its effficiency, the pumps can handle viscous and alsr volatile liquids and require less horsepower than other equivalent pumps. The pumps are capable of higher flow-rates at lower number pf revolutions than other designs.
The pumps are widely used on mobile applications or fixed installations. With cardan shafts or hydraulic motor the pumps can be installed on any kind of tank truck or they are coupled to electric or diesel engine on metal bases to be used either on terminals, heavy duty dispensers, pumping/metering skids. mobile transfer units.
Advantage:
• Durable pumps for fast and quiet operation. • Sliding vane design provides sustained performance and trouble free operation, high reliability. • Adjustable relief valve protects pump from excessive pressure. • T-type strainers are available to protect pumping system from damage caused by welding slag and other matter in the piping and tanks.
Application:
Fuel oil delivery truckFleet refuelingLube oil Aviation refuelersTransport of Petro Chemicals, gasoline, biofuels, solvents and many more.
Detailed Photos
Product Parameters

Model	YB-50	YB-65	YB-80	YB-100
Size	50mm/2"	65mm/2.5"	80mm/3"	100mm/4"
Pump Speed	400-640RPM	400-640RPM	400-640RPM	400-640RPM
Max. Flow Rate	150-300L/M	300-500L/M	600-1000L/M	1500-1900L/M
Vacuum	0.5Bar
Working Pressure	5Bar
Motor Power	2.2KW	4KW	7.5KW	18.5KW
Dimension	44×35×35cm	46×34×37cm	49×42×42cm	58×55×61cm
Net Weight	31kg	40kg	68kg	160kg
Gross Weight	34kg	47kg	74kg	178kg
Package	1PC/Wooden Case

Workshop

Company Profile
Certifications
Exibition
FAQ If you are not sure which model meets your requirement.
1. About Flow meter---what is the medium that you need to measure? What is the flow rate? Pipe diameter?
2. About Pump---what is the medium that you need to pump? Diesel, petrol, lpg gas or others? What is the pipe diameter, flowrate, power etc. ?
3. About Nozzle---what is the medium that you need to pump? What is the size ? thread NPT or BSPF ?
4. About LPG compressor---what is the intake pressure, discharge pressure, flowrate, power, voltage etc.? What is the volume of the flow meter?
