US$25,000.00-32,000.00
|
1 unit
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Certification
CE, ISO 9001
Saw Blade Dia
140~400mm&Nbsp;
Grinding Speed
1mm~15mm/S
Voltage
AC 380V-50Hz/220V-60Hz
Processing Efficiency
4~20 S/Tip
Transport Package
Water Proof + Wood Carton
Specification
2750mm*1200mm*1850mm
Production Capacity
5000units/Year
Product Description

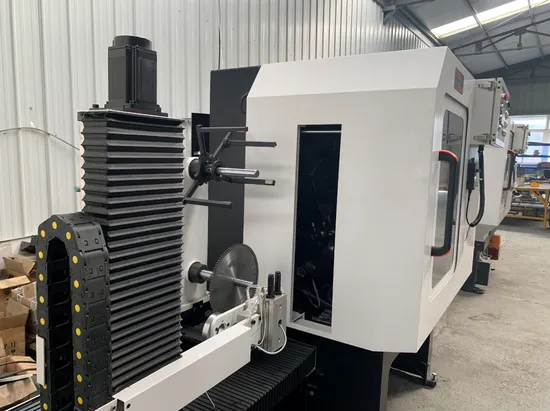

ATZ400 CNC TOP Sharpening Machine with Robot High-level productivity & precision grinding machine for carbide tools.
Advantages of saw blade sharpener • More precision- grinding precision: <0.025mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
• More Function- grinding TOP of saw blade
CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.
3-D Graphics Grinding Machine
Technical Premeter
Saw Diameter | 140~400mm |
Bore Diameter | 15.88~50mm |
Plate Thickness | <8mm |
Top Angle | -10°~+26° |
Bevel Angle | -45°~+45° |
Pitch | <60mm |
Kerf | <6mm |
Wheel Power | 1.1KW |
Wheel Size | 125mm*32mm*25mm |
Wheel Speed | 4200RPM |
Wheel Linear Velocity | 28m/s |
Grinding Speed | 1mm~15mm/s |
Processing Efficiency | 4~20 s/tip |
Grinding Accuracy | <0.025mm |
Coolant Tank | 150L |
Cooling Water Flow | 70L/min |
Input Voltage | 380V 50Hz(OR 220V 60Hz) |
Power | Approx 3.8KW |
Dimension | 2750mm*1200mm*1850mm |
Weight | 1900kg |
Configuration
Ball Screw | IF(Germany) |
Roller Guide | HIWIN(Taiwan) |
Pneumatic Parts | SMC(Japan) |
Servo Motor | Inovance |
PLC | Inovance ARM600 |
Harmonic Drive | Inovance |
FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.025mm,the service life is upto 7-15 years. 3. Whats your cooperation companys?
