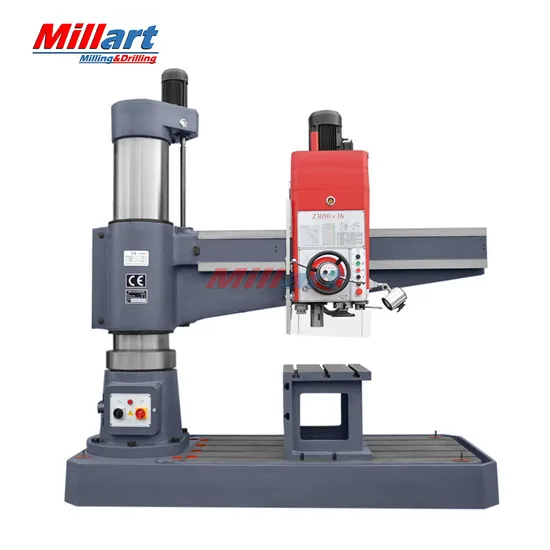

Universal Radial Drilling Machine Price Z3050X16/1 Z3050X20/1 Hydraulic Radial Column Drill Machine

Universal Radial Drilling Machine Price Z3050X16/1 Z3050X20/1 Hydraulic Radial Column Drill Machine

US$7,300.00-8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3050X16/1 Z3050x20/1
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Drilling Capacity
50mm
Column Diameter (mm)
350mm
Spindle Travel(mm)
315
Transport Package
Wood Case
Specification
CE ISO900 rohs
Trademark
L & T
Origin
Tengzhou China
HS Code
84592900
Production Capacity
30 PC/Month

Product Description

Universal Radial Drilling Machine Price Z3050X16/1 Z3050X20/1 Hydraulic Radial Column Drill Machine
Feature:
Gather mechanical-electrical-hydraulic functions, use extensively.
With wide range of speed and feed, with manual,power and fine feeds.
The feed of machines are very easily engaged and disengaged at any time.
With safe and reliable feed safety machine, all parts easy operation and change.
All controls centralized on the head stock easy operation and change.
Clamping for assemblies and speed change of spindle achieved by hydraulic power.
Main parts are made by machine center with high precision and efficiency, ensuring reliability and high quality.
Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
Spindle parts are made by special high quality steel heat treatment ensuring high strength and durability.
Main gears are all precision grind, ensuring high precision and low noise.
Technical parameter:
Model Z3050×16/1 Z3050×20/1
Max.drilling dia (mm) 50 50
Distance from spindle nose to base (mm) 320-1220 320-1220
Distance from spindle axis to column (mm) 350-1600 350-2000
Column diameter (mm) 350 350
Spindle travel (mm) 315 315
Spindle taper MT5 MT5
Spindle speeds range(r.p.m) 25-2000 25-2000
Spindle speed step 16 16
Spindle feeding rate(mm/min) 0.04-3.2 0.04-3.2
Spindle feeding step 16 16
Worktable dimensions (mm) 630x500x500 630x500x500
Base dimensions (mm) 2400x1000x200 2400x1000x200
Rocker rotary angle 360 degree 360 degree
Main motor power (kw) 4 4
Lifting motor power (kw) 1.1 1.5
Weight (kg) 3500 3650
Overall dimensions (cm) 260×112×260 300×112×260

Standard accessories:
Box type worktable
Taper sleeve
Foundation bolt
Drill chuck
Wrench

Optional accessories:
Spindle guard
Machine vise
