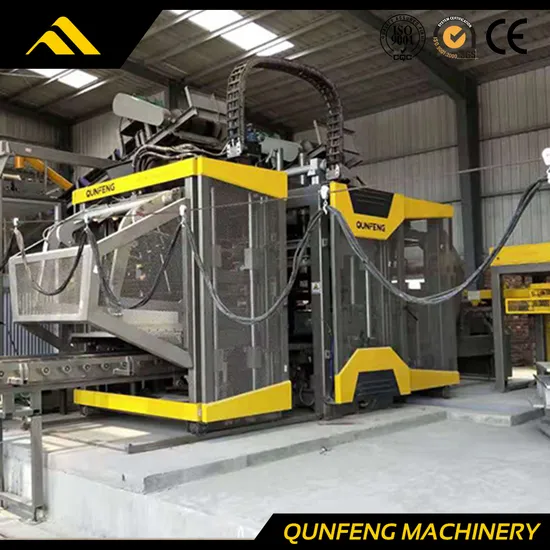

Advanced Seaworthy Block Forming Machine QS2000

Advanced Seaworthy Block Forming Machine QS2000

US$265,000.00-318,000.00 1 Set (MOQ)

Basic Info.

Model NO.
QS2000
Certification
CE, ISO
Customized
Customized
Automatic Grade
Automatic
Type
Vibration Molding
Transport Package
Standard Seaworthy Packing
Trademark
Qunfeng
Origin
China
HS Code
8474809090
Production Capacity
300 Sets a Year

Product Description

Product Description
The 'Supersonic' series intelligent block machine is an ultra-efficient model collaboratively developed by Qunfeng and German engineers. It is tailored to fulfill a wide range of customer needs including special-shaped cement products, hollow bricks, paving bricks, curb stones, and solid bricks, among others. This innovative machine boasts features such as user-friendly operation, high capacity, top-notch quality, exceptional stability, and low operating costs.
Features
1. Efficient Servo Vibration
The adoption of a servo motor with a forced synchronous mechanism ensures:
A. Increased Output: QS series block machines, with their rapid dynamic response and short molding cycles, achieve an 8% higher production rate compared to machines using ordinary motors.
B. Maintenance Cost Savings: Equipped to handle large loads, the servo motor is ideal for block production requiring swift load fluctuations and quick starts. Coupled with a cooling system, it remains undamaged even in high-temperature environments.
C. Noise Reduction: By adjusting the phase angle of the eccentric block, residual vibration and noise are swiftly minimized.
2. Automatic Mould Lifting Frame
The mold frame adjusts via an automatic lifting mechanism and auxiliary screw rod positioning, allowing for quick and easy mold changes.
3. Enhanced Material Hopper
The door operation, driven by a reducer, offers more stability and speed, thus boosting production efficiency.
4. German Industrial Design:
Engineered to meet high industrial standards, ensuring superior quality and elevated security levels.
5. Intelligent Control
Utilizing Siemens PLC and other globally recognized brands for sensors and electrical components like Germany's Turk, the control system is both simple and intuitive. It features a comprehensive fault alarm system and automatic diagnosis, reducing troubleshooting time by 30%.
6. Efficient Hydraulic System
Incorporating an imported high-dynamic proportional valve and high-performance vane pump, the hydraulic system allows for easy parameter adjustments, high pressure resistance, low noise, energy efficiency, and effortless maintenance.
Additionally, it offers pressure multi-point detection, digital oil temperature display, and oil blockage alarms.
7. Multi-Purpose Block Machine
With interchangeable molds, this versatile machine can produce a variety of blocks and bricks, including hollow blocks, paving bricks (with or without face color), solid bricks, curbstones, and slope protection bricks.
8. Advanced Material Feeding Device
To accommodate diverse block production needs, a range of material feeding carts are available, such as 360° rotary feeding carts and quick swing shaft feeding carts.

Technical Data
Technical data QS2000
Dimension(Main Machine) (mm) 4950X3010X4755
Rating pressure (MPa) 21
Vibration Table vibration
suitable height for block( mm) 45~220
Power ( kW ) 95.2
