Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Certification
CE, ISO9001: 2000, SGS
Engine Model
Laidong 3TE25
Traveling Tracking Force
15KN
Bucket Digging Force
11.5KN
Undercarriage width
1050mm
Transport Package
Nude in Container
Specification
3800*1050*2280mm
Origin
Shangdong China(Mainland)
Production Capacity
1000 Sets One Year
Product Description

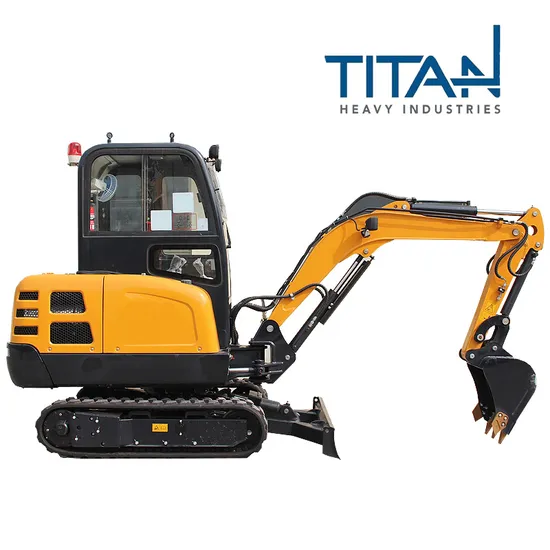

OEM Titanhi Mini Excavator Equipped With Double Fuel Filter To Guarantee Fuel Purity
Product Description
Main Features Small size and easy to transport, could be loaded onto light truck or small trailer, four sets could be loaded into one 20GP container to save freight cost. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency Famous brand hydraulic system parts ensure the stable quality. equipped with double fuel filter to guarantee fuel purity to protect engine. boom deflection design meet narrow work condition, reinforced rubber track to protect road extend hydraulic line for various attachments. comfort seat make operator easy to work. Cabin with heater is optional. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.
Engine |
Model | Laidong 3TE25 18.1kW/2000rpm |
Type | Direct injection, wind cooled, natural intake |
No. of cylinder | 3 |
Main Performance |
Main Speed | r/min | 10-12 |
Traveling Speed | km/H | 2.8 |
Grade ability | KN | 70(35°) |
Traveling Tracking Force | KN | 15 |
Bucket Digging Force | KN | 11.5 |
Arm Digging Force | KN | 9.3 |
Overall Dimensions |
Overall Length | mm | 3800 |
Overall Width | mm | 1050 |
Overall Height | mm | 2280 |
Counterweight Ground clearance | mm | 485 |
Track Length | mm | 1630 |
Track Width | mm | 230 |
Undercarriage Width | mm | 1050 |
Undercarriage ground clearance | mm | 235 |
Dozer Blade | mm | 1050*240 |
Operation Paramters |
Operation Weight | KG | 1800 |
Bucket Capacity | m³ | 0.06 |
Max. Digging Radius | mm | 3860 |
Max. Digging Depth | mm | 2050 |
Max. Diiging Height | mm | 3370 |
Max. Dumping Height | mm | 2390 |
Max. Dozer Cutting | mm | 270 |
Max. Dozer Lifting | mm | 235 |
Boom Deflexion Radius | ° | 75/45 |
Tail Swing Radius | mm | 1125 |
Front Min. Swing Radius | mm | 1720 |
Attachment
Packing&Shipping
Application
TL10E excavator with compact design, it is suitable to be used for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse.
OUR SERVICE
Pre-Sales Service
(1) Inquiry and consulting support.
(2)Sample testing support.
(3)View our Factory.
After-Sales Service
(1)Training how to instal the machine, training how to use the machine.
(2)Engineers available to service machinery overseas.
FAQ
Q:Why choose Titan?
1) Titan: an experienced loader manufacturer with over 11 years.
2) Titan TEAM: customers-focused,you'll get reply within 5 minutes.
3)Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
Q:What is Titan warranty?
1) Titan after-sales: life-long, meantime offer one year and one month warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.
Q:What about Titan delivery term?
10-14 days after down payment received.
Q:What about the payment term?
30% advance payment,70% balance by T/T.
