Plastic PVC Horizontal Heating Cooling Powder Mixing Machine for Spc Floor Production Machine

Product Description

Equipment parameters

No.	Item	Parameters
1	Working Condition	380V/3P/50Hz (or customization)
2	Processing Material	PVC, Calcium powder mixed material
3	Mixer Unit Model	SRL-W1000/3000
4	Mixer negative pressure transfer speed	1.75T~2T/h
5	Vacuum pump power	11KW
6	(Hot Mixer)Total volume	1000L
7	Effective volume	700L
8	The largest feeding amount at one time	350-400
9	Spindle speed	0-600r/min
10	Mixing time/batch	10-12min
11	Discharging method	Pneumatic
12	Heating method	Friction Heat
13	Material temperature	110ºC
14	Discharge compressed air pressure	0.49Mpa
15	Feeding holes	4*Ø300
16	Straight diameter of the discharge port	φ250
17	Temperature measurement method	K-type thermocouple-temperature controller
18	Motor	160kw inverter control
20	(Cold Mixer)Total volume	3000L
21	Effective volume	2000L
22	The largest feeding amount at one time	500KG
23	Output	2000KG/h
24	Spindle speed	60r/min
25	Mixing time/batch	8-10min
26	Heating method	Water cooling
27	Material temperature	50ºC
28	Temperature mesurement method	K-type thermocouple-temperature controller
29	Compressed air pressure for discharging	More than 0.49Mpa
30	Number of feeding holes	φ300
31	Motor	30kw
32	Raw material storage bin	3 m³
33	Mixer feeding method	Vacuum feeder
34	Storage bin feeding method	Screw feeder

Product Description

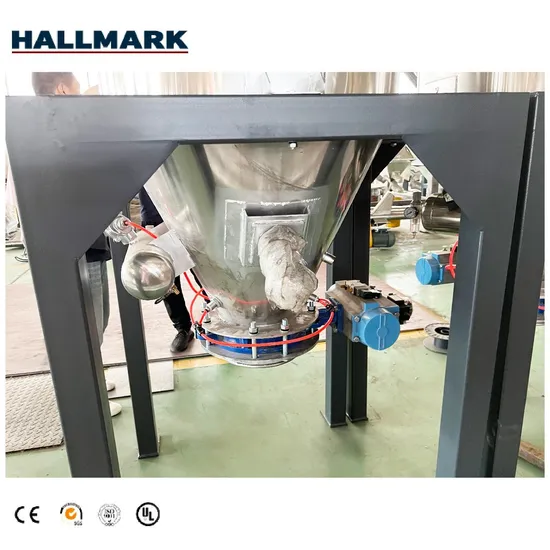

Mixing Machine for SPC Flooring Production Line The PVC mixer unit is for mixing PVC powder, CaCO3 and other additives. This equipment is widely used in PVC
sheet production and profile production.The high speed PVC mixing machine is composed of plastic mixer (hot mixer),
cooling mixer and control cabinet. It will guarantee the mixer could use for long time under the high friction.The mixing
blades are passed the static and dynamic balance testing. And the main shaft adopts fine sealing to prevent material
leakage. Equipment details list
