Blkma U-Shape Automatic Duct Line 5 / Air Duct Machine Manufacturer

Blkma U-Shape Automatic Duct Line 5 / Air Duct Machine Manufacturer

US$50,000.00
1-4 Sets
US$44,000.00
5+ Sets

Basic Info.

Model NO.
ADL-5U-1300
Condition
New
Customized
Customized
Theory
Pulse
Application
Industry, Duct
Type
Pipe Production Line
Voltage
220V/240V/380V/415V/440V/etc.
Power
30 Kw
Max Coil Weight
7 T
Weight
13 T
Max Width of Sheet Metal
1300 or 1500 mm
OEM
Available
Certification
CE
Transport Package
Standard Package
Specification
12000*5500*1500 mm
Trademark
BLKMA
Origin
China
HS Code
8462219000
Production Capacity
200 Sets/Month

Product Description

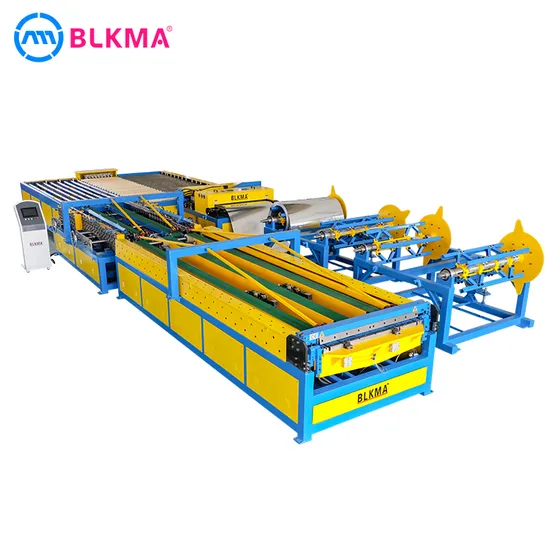

Blkma U-Shape Automatic Duct Line 5 / Air Duct Machine Manufacturer

U shape auto duct line 5 is mainly for TDF/angle steel duct processing with daily working capability of
1000-2500 square meters. The production line can automatically complete uncoiling, leveling, beading,
angle punching, shearing, locking, TDF forming and folding.
Main importeded Configuration: Basic Configuration:
1. Beijing Huade + Taiwan hydraulic system
2. Japan Mitsubishi CNC system
3. Japan Omron encoder
4. Taiwan Hiwin linear guideways
5. Schneider electrical system
1. Two electric coil cradles, 4 material trays (7 t each roll)
2. One rack
3. One host (line 2 host)
4. Two stainless steel roller convey platforms
5. One fixed joint locking machine
6. One duplex TDF flange forming machine
7. One duplex angle steel flange forming machine
8. One servo feeding platform
9. One hydraulic folding machine
10. One set of computer controlling system

Main Technical Parameters:
Model Sheeting
thickness
(mm)
Max width
(mm)
Max
working
speed
(m/min)
Max
weight
of coil
(T)
Dimension
L*W*H
(mm)
Power
(kw)
Weight
(T)
ADL-5U-1300 0.5-1.2 1300 15 7 12000*5500*1500 30 13
ADL-5U-1500 0.5-1.2 1500 15 7 12000*6300*1500 30 14

Detailed Images:
Working Schematic Diagram & Working Flow:

FAQ:
1. Are you manufacturer or trading company?
We are manufacturer.

2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our
factory for learning operation. Besides, there are detailed installation and operating instructions
attached, it is very simple. We have telephone and email support at 24 hours per day.

3. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance
before the shipment.

4. OEM is available?
Yes.

5. What's your package?
There're two package methods. One method is that machines will be fixed directly in a whole
container without wooden box when total machines dimensions need a container, in this
situation, machines will be transported by FCL (full container load). Another method is that
machines will be packaged with wooden box when total machines dimensions are small which
does not need a whole container, in this situation, machines will be transported by LCL (less
than container load).
Both of these two package methods are safe.
