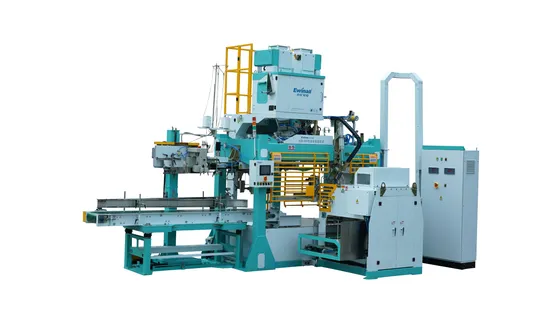

5-25kg Rice Bean Fully Automatic Plastic Packing Machine

5-25kg Rice Bean Fully Automatic Plastic Packing Machine

US$60,000.00-75,000.00 1 Set (MOQ)

Basic Info.

Model NO.
QZB -900L
Automatic Grade
Automatic
Application
Rice, Flour
Type
Filling and Sealing Machine
Forming Species
Plastic Packing
Forming Function
Filling, Seal
Driven Type
Pneumatic
Material Type
Grain
Packaging
Cartons
Packaging Material
Bamboo, Wood
Weighing Range
5-25kg
Bag Material
Plastic
Speed
15bags/Min
Transport Package
Wooden Box
Specification
3000mm*3000mm*3000mm
Trademark
Ewinall
Origin
China
HS Code
842330
Production Capacity
1000 Sets/Year

Product Description

Feeding type Feeding by gravity
Weighing Range(kg) 5-25kg
Structural Features Cylinder type,three sensor
Suitable Material granule
Weighing Precision ±0.1%~±0.2%
Packing Speed(bag/h) 400-700
Form TN-s
Air Pressure 0.5-0.7Mpa
Total Air Consumption 9m³/h
Total Power Consumption AC380V±10% 50Hz three-phase five-wire system 6kw
Environment Temperature 0-40ºC
Ambient humidity Less than 90%RH at 40ºC,higher humidity is permitted at lower temperature
Dimension(mm)
L*W*H
5500*3800*3200

Main Spare parts OF QZB-900L
No Item Name Item Brand Type
1 PLC Omron(Japan) Electro Part
2 Touch Screen Delta(Taiwan)
3 Frequency Converter Eaton(Germany)
4 Low voltage electrical Eaton(Germany)
5 Limit switch Omron(Japan)
6 Photoelectric / proximity switch Turck(Germany)
7 Vacuum pressure switch SMC(Japan)
8 Load cell Mettle Toledo(USA)
9 Relay IDEC(Japan)
11 Vacuum chuck Patents special Mechanical Part
12 Vacuum pumb Zhongde(China)
13 Cylinder Airtag
14 Electromagnetic valve SMC(Japan)
15 Ordinary motor Zhenyu(China)
16 servo motor Delta(Taiwan)
17 Planetary reducer Delta(Taiwan)
18 Rack and pinion Made in China
