Fiber-Optic Vibration Sensor for Physical Security System

Fiber-Optic Vibration Sensor for Physical Security System

US$921.00-1,443.00 1 Set (MOQ)

Basic Info.

Model NO.
DD-J-Z
Application
Home, Industry, Special Equipment, Traffic
Usage
Personal
Certification
CE
Transport Package
Carton
Trademark
DD-FENCE
Origin
China
Production Capacity
100set/Month

Packaging & Delivery

Package Size
92.00cm * 77.00cm * 56.00cm
Package Gross Weight
70.000kg

Product Description

Product Description Vibration Optical Fiber Alarm System

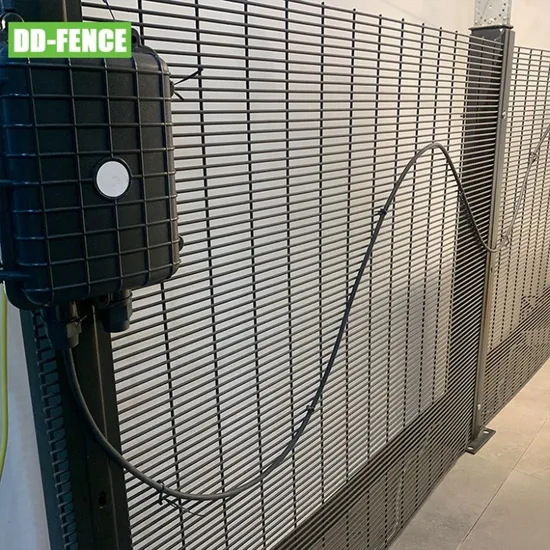

An alarm system that uses vibration to judge intrusion. Its detection element is a long special cable containing electronic components, which can be wound around the fence railings. The vibration of the railings caused by climbing can trigger the detector. The equipment connected with the detector can judge the position, thus giving alarm to the safety watchman.
When intrusion occurs, the system will alarm immediately and locate the alarm position when the cables vibrate slightly by knocking, climbing, trampling, touching, shaking and extrusion.
According to the different practical application environment, the system can be applied not only to various types of surface fences such as iron art, wire mesh fence and other metal fence
Working voltage 12VDC
Alarm response time <3 s
Warning power consumption <1W
Length of defense zone ≤1000 meters
Alarm power consumption <1.5W
Working temperature -30ºC--70ºC
Communication interface LAN
Response time ≤2S
Vibrating optical cable interface FC/APC
Working wavelength 1510-1590nm
MTBF 2000h (Grade C)
Number of equipment defense zones ≤2
Power surge protection Electric capacity: 10KA 8/20μs
Clamping voltage: 40VDC
Electric shock capacity of linkage relay: 0.2A 110VDC
0.3A 125VAC
0.5A 30VDC

Company Introduction
As one of the leading manufacturers on perimeter fencing products, DD-FENCE has more than Ten years running experience, and enjoy a high reputation in China fencing industry. Now our business covers: Steel or Aluminum Fencing, Cast Aluminum or Cast Iron fencing, as wells as kinds of swing or sliding gates.
