Basic Info.
After-sales Service
1 Year
Worktable Size
3000*1320mm*2PCS
Overall Dimensions
11000*2100*2050mm
Transport Package
Exported Standard
Specification
11000*2100*2050mm
Production Capacity
2000 Set/Year
Product Description
Product Description

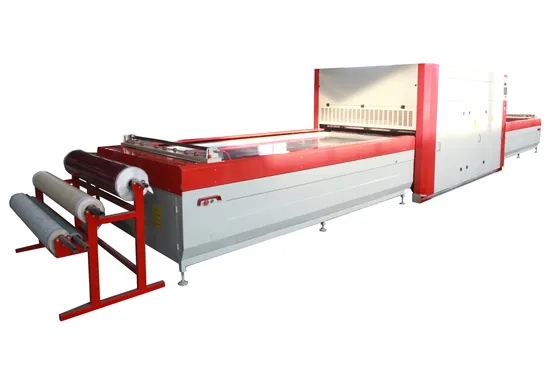

Positive and negative pressure vacuum laminating machine
The positive and negtive pressure vacuum laminating machine's working temperature is low ,reducing the degree of diwscolorration of the film skin. For work ,there are basically no pull angle son the four corners of th workplace ,and the degree of the workpiece is small. Working with less glue ,and the probability of film peeling is very low.
TM3200
Detailed Photos
Features:
1. The temperature of positive and negative pressure is low, and the discoloration of the membrane is small. The negative pressure machine uses high temperature heating and baking, and the discoloration of the membrane is serious.
2. There is basically no pull angle on the four corners of the workpiece made by positive and negative pressure. It uses a silicone plate to press the membrane down, so there is no such thing as a pull angle. If the temperature, the distance between the pendants, and the suction speed of the negative pressure machine are too large, pull angles will be formed, which is time-consuming and laborious to handle, troublesome, and easy to produce scrap.
3. The workpiece made by positive and negative pressure has a small degree of deformation. The positive and negative pressure itself relies on pressure to press the workpiece down to make it flat. In addition, the temperature is low, so the probability of deformation is even lower.
4. Positive and negative pressure are three kinds of pressure to press the membrane, and the probability of the membrane opening is very low. The negative pressure machine has only one kind of negative pressure to absorb the membrane. If the temperature and polishing are not good, the edge will be opened.
5. The amount of positive and negative pressure glue is much less than that of the negative pressure machine. As long as there is a little glue, it can be adhered.
Product Parameters
worktable size | 3000*1320mm*2pcs |
working height | 36mm |
total power | 55kw |
overall dimensions | 11000*2100*2050mm |
weight | 17000kg |
Power supply | three-phase 380V, 50Hz |
Our company also produce other models of vacuum laminating machines.Please be free to contact me . Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice. We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers. About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you.
Certifications
Our Customers
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?Our machines have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sliding table saw,CNC beam saw machine, wood drilling machine, CNC router ,vacuum laminating machine, sanding machine, hot press machine and so on can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese , English , Español , Português , Français , Русский язык , Italiano , Deutsch , Nederlands and so on .
