Ew3 5 Axis CNC Router Machine Carving Center with Moving Column Gantry for Wood & Foam

Ew3 5 Axis CNC Router Machine Carving Center with Moving Column Gantry for Wood & Foam

US$25,000.00-40,000.00 1 set (MOQ)

Basic Info.

Model NO.
EW3
Spindle Layout
Spindle Over
Spindle Number
Single-Spindle
Feed Mode
Mechanical
Controlling Mode
CNC
Certification
CE, ISO, SGS BV TUV
Customized
Customized
Condition
New
Color
Customized
After-sales Service
One Year
Working Area
1300*2000
Table Structure
Weld Steel Movable Table
Magazine
Disc-Type Atc Hsk F63
Working Voltage
AC220V/60Hz 3p or AC380V 60Hz 3p
Control System
Taiwan Syntec 5 Axis Control System
Spindle
10kw, Italy Spindle, Water-Cooled
Inverter
Delta Inverter
Servo Motor
Japan Yaskawa Servo Motor
Reducer
Japan Shimpo
Table Surface
T-Slot Table and Aluminum Table Coated with PVC
Transport Package
Standard Export Wooden Case
Specification
CE, FDA, ISO, SGS
Trademark
BLUE ELEPHANT
Origin
Shandong, China
Production Capacity
200 Sets Per Month

Product Description

Product Description
Description:

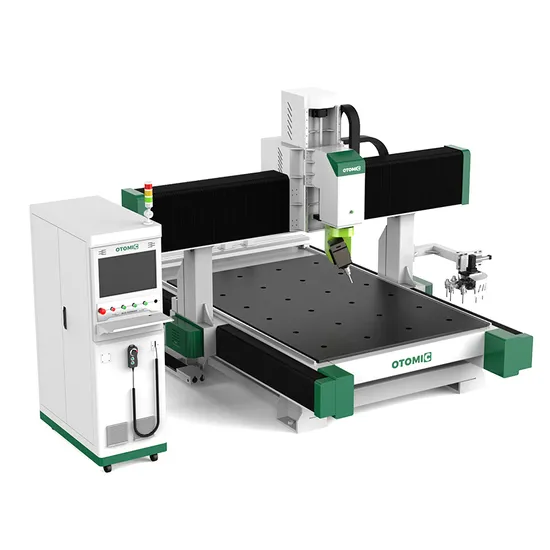

The moving column gantry 5 axis CNC machining center adopts a dynamic column structure. That means the workpiece is fixed on the workbench, and the column and gantry move along the direction of the bed. Therefore, it can provide larger processing space and higher stability. And it is widely used for processing foam and wood in mold manufacturing industry.
Features:
1. The moving column gantry 5 axis CNC machining center has a large working table, which is suitable for processing large workpieces and 3D molds.
2. The dynamic column structure provides larger processing space. So it can achieve high-precision and complex surface processing, improve production efficiency and reduce the need for manual operations.
3. The moving column gantry 5 axis CNC machine allows the workpiece to be accurately machined in five different directions without re-clamping the workpiece. It greatly shorten the processing cycle and reduce material waste.
4. The moving column gantry 5 axis CNC machining center is widely used in aerospace, automobile manufacturing, mold manufacturing, etc. It is one of the indispensable and important equipment in modern manufacturing industry.
Detailed Photos
Technical parameters
Item Description
X, Y, Z axis travel X axis:1300-2000mm
Y axis:2000-6000mm
Z axis:300-600mm
5 axis cutting head HITECO/LX500
Magazine Carousel tool changer with 8pcs HSK F63
Driving system X axis 1.3kw; Y axis 1.3kw*2; Z axis 1.8kw Japan YASKAWA servo motors
Control system SYNTEC 610-E5 5 axis control system with RTCP functions
Spindle HITECO 10KW/Changchuan 14KW
Inverter 15kw Delta inverter
Linear guide X, Y axis: Taiwan 35#
Z axis: Taiwan 30#
Reducer Japan SHIMPO *3
Water cooling system Water cooler
Cables Germany Igus cables with CE, cUL certificate

Sample & Application
Application:
1, Mold industry: various large metalloid moulds, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold, and wooden mold train
2, Instrument industry 3-d surface engraving and shape cutting of large-scale instruments
3, sign, plastics, wood, molds, etc
4, Furniture, general woodworking manufacturing
Exhibition
Certifications
Our Service
Our service
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Company Profile
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
Why are our products so welcome among customers all over the world?
1.Our company has more than 10 years' experience in manufacturing cutting and engraving cnc router machine.

2.Our machine has achieved CE,FDA,CIQ,which ensures the quality and its longer life time makes customers feel at ease to use it.

3. Reinforced and thickened machine body makes transportation absolutely safer. Packaging & Shipping
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment
FAQ:
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminum, Copper, and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience. As only the machine made by ourselves, the quality can be trusted, and the most important thing is that we can do better after-sales service. We know how to fix the problem of every part easliy, so welcome to visit to our factorv.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to payd the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non- Standard machine and customized machines according to clients specific requirements, it will be 15 to 30 days.
Welcome to contact us and visit our factory!
