Reliable Supplier Portable Lifting Truck Crane 360 Degree Rotation

Reliable Supplier Portable Lifting Truck Crane 360 Degree Rotation

US$3,000.00-30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
JIB crane
Application
General Industry
Rated Loading Capacity
up to 10ton
Place of Origin
Shaoxing, Zhejiang
Certification
ISO9001:2008
Protection
IP55/IP65
Transport Package
Container or Bulk Ship Seaworthy Packings
Specification
ASTM
Trademark
NANTE
Origin
China
HS Code
8426300000
Production Capacity
1, 000 Sets/Year

Product Description

Reliable Supplier Portable Lifting Truck Crane 360 Degree Rotation
Product Description

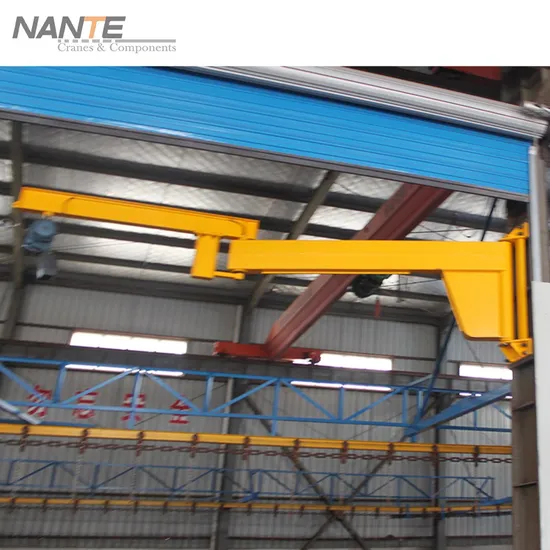

The benefits of a Jib Crane make it an essential and cost effective piece of equipment for all kinds of industrial settings. We have a wide selection of new and used Wall-Mounted Jib Cranes and Swing Jibs. They are designed for applications where a free-standing Jib Crane may not be suitable, for example, if there is limited floor space. A Wall-Mounted Crane can be operated in much tighter spaces, and can be folded out of the way when not in use. All that is needed is a suitable wall area, and you're ready for installation.
Wall-Mounted Jib Cranes are the most cost effective option, in part because they're one of the easiest kinds of crane to install. The only requirement is that the wall is able to take the weight of the crane - your qualified engineer will be able to advice on this. Another option is to fit the crane onto an already existing building column, which are often used to support industrial buildings. Installing a Wall-Mounted Jib Crane is quick and simple, and the crane can easily be moved in future if you want to transport it to a different location. The crane's height can be set during installation - it can be placed wherever it needs to be on the wall to suit your needs. You can specify the chain length required when ordering.
Before making an enquiry on a wall mounted jib crane you will need to take in to consideration the following points to gain an accurate quotation:
SWL- Capacity of the crane Height from the floor to the underside of the Jib Arm Height of Lift (hook Path) Jib Arm Length Slewing Radius Are there any height restrictions? Hoist specifications and options. ------------Design and manufacturing features---------------
Design Code:
NANTE's wall mounted jib crane follows the design code of FEM, CMAA, ISO EN, BS, GB standard.
Boom:
KPK Track, C track and I beam can be selected for the wall mounted jib crane's arm.
Hoist:
Chain hoist can be selected. compact structure, smooth operation, accurate positioning, high Safety reliability, and Maintenance-friendly.
Control Panel:
Follow IEC standard, IP55 powder coating high quality enclosure, socket plug-in for easy connection, DIN standard terminal, international brand for the inverter, MCB, Contact and electrical devices on the panel
Festoon System:
Double line Galvanized C track system with flexible flat cable, one line for hoist power and signal transmission, one line for the pendent control trolley movement. No-welding claw is design for the brackets of the festoon system fixing.
Safety Protection Functions:
NANTE wall mounted jib crane include a lot of protection functions, like Overheat protection for the lifting, load cell type overload limit switch, up&down position limit switch, cross limit switch for the cross travel and long travel. Phase sequence relay, and other optional functions, like crane monitoring system, LED load displayer.
Controls:
NANTE Jib crane can offer both options of remote control and pendent control
Anti-corrosive Treatment:
Shoot Blasting follow ISO8501-1 SA2.5 class, roughness follow ISO 8503 G class, clearness follow 8502-3 Level II. Use top brand like Hempel, International, and Jordon's Rich zinc epoxy painting for the prime, middle layer coating. Use polyurethane topcoat for the finished layer coating. All NANTE painters are trained or inspected by NACE or FROSIO level II Inspector Product Parameters
Technical Data of Wall Mounted Jib Crane
Capacity 250kg 500kg 1000kg
Rotation Radius(m) 2 ~ 8 2 ~ 8 2 ~ 6
Height of Lifting(m) 2 ~ 10 2 ~ 10 2 ~ 10
Rotational Angle(m) 180° 180° 180°
Control Method(m) Pendent or Remote control
Rotation Method(m) Manual
Lifting Speed(m/min) 8/2 8/2 4/1 or 8/2

Company Profile
FAQ
Q1: Are you Manufacturer or Trading Company,
A1:We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department,
Q2: Which standard of your crane and crane components apply to?
A2: Our Crane can design and manufacture base on FEM, CMAA, ISO EN, GB standard.
Q3: How do you ensure your product quality?
A3: All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.
Q4: How can I make payment?
A: We accept T/T bank transfer, L/C, Paypal.
Q5: How can I assembly the cranes in my factory?
A: We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
Q6: What is the warranty period, and how can I claim warranty If my crane have any issue?
A: Our warranty period is 12 months after cargo leave China port. If the crane have any issue, our after-sales team and engineer will help you solve the issue by email or Video conference. If the defect is caused by quality issue, we will ship the spare parts to you by air to help you fixed it as soon as possible.
Q7: Do you accept OEM business:
A: Sure, we do many OEM productions for some famous crane brand and customers around the world.
Q8: What about shipping:
A: We recommend small batch by the way of air or LCL, but large delivery by the way of container or bulk vessel.
Q9: what about delivery time?
A: different capacity crane and components have different estimated delivery time, generally speaking, around 4 weeks to 8 weeks.
Q10: What is your company policy if we want to distribute NANTE product in our market?
A: Firstly, thank you for your interest to promote NANTE brand, we have distributors in 50+ countries, pleaes no hesitate to contact us for the detail discussions, as we have different policies for the different target markets. Surely, you are welcomed to visit our factory and let's talk face to face.
