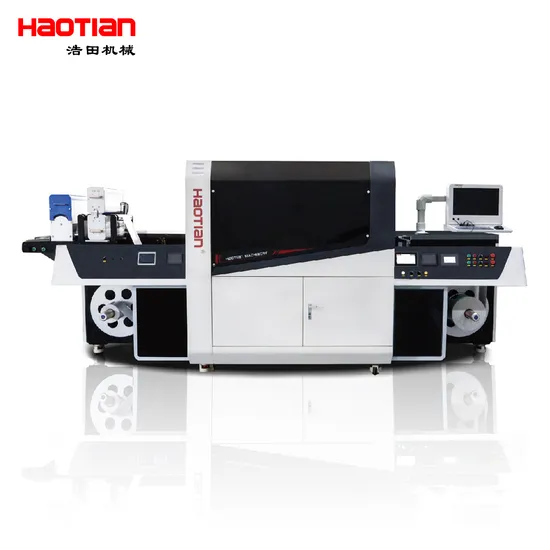

Seven Color Label Digital Printing Machine

Seven Color Label Digital Printing Machine

US$314,286.00-364,286.00 1 Piece (MOQ)

Basic Info.

Model NO.
HTS-220/330-7C
Printing Color Group
Cmyk+W+O+V
Applicable Materials
Semigloss, Film, Universal Label Roll PAC
Paper Feed Width
220mm/345mm(Maximum)
Actual Printing Width
216mm/324mm(Maximum)
Transport Package
Packing in Non-Air Wooden Case
Specification
Approximately 3.5 tons
Trademark
HAOTIAN
Origin
Baiyun District, Guangzhou City, Guangdong Provinc
HS Code
8443322190
Production Capacity
50m/Min

Packaging & Delivery

Package Size
430.00cm * 204.00cm * 182.00cm
Package Gross Weight
3500.000kg

Product Description

THE MAIN TECHNICAL PARAMETERS
ModelHTS-200/300-7CThickness of printing stockRoll material sin 0.4-0.8mm.
Printing speed/min(max)50m/minRoll diameter of charging or dischargingMaximum diameter:650mm
Temperature range18-30°CMachine size (L*W*H)4300mm x 2040mm x 1820mm
Storage temperature
for ink
16-32°CN put powerThree-phase 380VAC 50/60HZ 10KW.
Humidty range40-60%Accepted file formatPDF,JPEG,BMP and other common file formats
N put gas supply0.6-0.8 MpMaterial typeSemigloss,Film,Universal Label Roll PAC
Width of paper feeding216mm/324mmComputer hardwareMain board with HTS-PRIMEZ370-A:
graphics card with HT5-GTX1070-08G.
Printing width220mm/330mmResolutionDP1600x600dpi or 600x1200dpi DPI/rate1200dpi25m/min,240dpi 12.5m/min
Machine weigh3.5tunsapproimatelyPrinting technologySingle PASS UV ink-jet technology,DDD technical.grade nozzle and 4-grade grade scale
InkCured UV printing inkmage processorRiP bundle,and synchronous printing and RiP for big data files are supported,saving RiP time
Color cell of printingCMYK+W+O+VDrying modet consists of 4 sets of LEDS and a set of 10KW UV amps to ensure that the material does not deform during curing
PERFORMANCE AND FEATURES1.cmyk+w+o+v Color Group, The Self-developed 7-color Separation System Has A Wider Printing Color Gamut,More Vivid Colors,And More Delicate Color Harmony Which Further Expands The Scope Of Printing Adaptation,And At The Same Time Saves On Printing Consumption.the Material Cost Also Greatly Reduces Its Ink Cost And it is Easy To Realize Full-color Printing Of Transparent And Non-transparent Materials.2.Variable Data Processing System, Easily Realize Variable Data Printing Such As Bar Code,QR Code,Serial Number, Dot Matrix Code,Etc.To Needs Of Anti-counterfeiting Traceability Orders.
3.The Patented Technology Of Automatic Nozzle Cleaning And Maintenance System (e-clean) Can Effectively Clean And Maintain The Nozzle Module reduce The Waste Of Maintenance Print head Ink And Human Factors To Damage The Print head ,Prolong The Service Life Of The Print head.
4.Mature And Stable Circulation ink Supply System, Modular Independent Positive And Negative Pressure Control, Segmented Filter Technology Shi nan's Top lnk Degassing Technology, To Ensure The Stability And Reliability of Ink Supply.
5. The Printing Section Adopts Dual-servo Tension Control, Front And Rear Feeding And Unwinding Tension Control, Stable And Reliable Tension Control System To Ensure Smooth Paper Feeding And Registration Accuracy.Print samples
Machine details
Enterprise certificate
Our company
Our workshop
Packaging and Shipping
Our exhibition
FAQ
1.Are you a manufacturer?
Yes, we have been in making printing machine over 20 years.
2.machine adjustment and installation
We can send technicians go to customers' country for machine installation and adjustment.
4. Quantity and quality guarantee
Quantity/Quality Discrepancy to destination port during transportation: In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination.
Guarantee period and after-sales services: 12 months since installation finish and machine normal working. During this guarantee period, We will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide spare parts at cost price.
Long-term service: We will charge the buyer the cost price of spare parts beyond guarantee time and provide long-term technical guide.
5. Validity: 60 days since the quote date
Thanks for your attention! Sincerely hope to work with you in near future!
