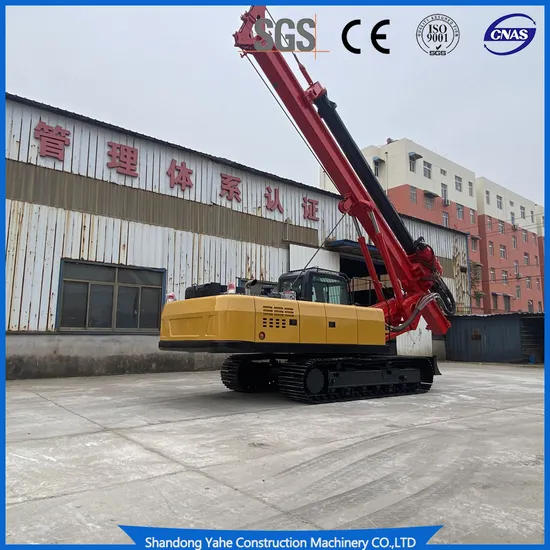

Full Hydraulic Core Drill Rig Machine with Cummins Engine/High Efficiency/Great Power

Full Hydraulic Core Drill Rig Machine with Cummins Engine/High Efficiency/Great Power

US$90,000.00-110,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DR-100
Drill Hole Diameter
>300mm
Drill Hole Depth
5-40m
Bit Type
Twist Bit and Barrel Drill
Drilling Way
Rotary
Type
Crawler or Wheel
Usage
Pile Driver, Drill Hole Flling Pile Construction
Engine
Cummins
Drilling Diameter
500-1800mm
Power Source
Diesel
Drilling Depth
30m
Drill Rod
Kelly Bar
Transport Package
Rotary Drilling Rig Package According to The Custo
Specification
12500mm*2800mm*3550mm
Trademark
DingLi
Origin
China
HS Code
8430509000
Production Capacity
20 Sets/Month

Packaging & Delivery

Package Size
11500.00cm * 2800.00cm * 3400.00cm
Package Gross Weight
24000.000kg

Product Description


Product Description
The maximum drilling depth is 20 meters, and the model has obtained many product quality and management certifications including ISO, CE, SGS, BV and so on. It is widely used in infrastructure and construction projects. This model is a crawler chassis, diesel powered, 360-degree rotating car body, equipped with Kelly drill pipe, spiral drill bit, barrel drill bit, reaming drill bit, etc.
1.Excellent performance, fast lifting, large lifting weight, drilling rig can be 360 degree rotary construction.
2.Full hydraulic system control can ensure that all indexes of pile foundation verticality, hole position, hole depth and sedimentation thickness meet the requirements of construction specifications.
3.Driving power is strong, the power head acts directly on the drill bit and keeps the torque unabated during piling.
4.The hole wall drilled by rotary drilling rig has good stability, complete hole cleaning after hole completion and fast construction progress.
Product Parameters
modelDR-100
Working modehydraulic oil cylinder pressure
Drilling diameter (mm)Φ500-Φ1800
drilling depth (m)5-20m
Diamension (mm)11500X2400X3350mm
Total weight (t)23T
Power head max output torque (KN.m)100KN.m
Rotary speed (r/min)10-50RPM
Main winch max lifting force120KN
Main winch max lifting speed50m/min
Assisting winch max lifting force15KN
Assiting winch max lifting speed50m/min
Mast sidewards inclination±4°
Mast forwards inclination
Max working pressure32Mpa
pilot pressure3.5Mpa
Travelling speed (km/h)4 km/h
Diesel engine power (KW)151KW ,cummins ,water cooling ,turbo charger
Detailed Photos
We have many certificates, support verification, we export more than 30 countries!
shipping picture
At present, there are three ways to transport rotary drilling rig: special equipment frame box, RO ro ship and bulk carrier. Generally speaking, they are the first two. Although the price is a little expensive, compared with bulk carriers, they are very safe. We will arrange port personnel to take reinforcement photos in each link. If customers need, we can send them by email.
EXHIBITION
We have been committed to participate in a variety of offline exhibitions, not only for the sale of our rig, but also for continuous learning. We are committed to the world, launched "rotary drilling rig, made in China!" Customer photo
Welcome customers from all over the world to visit our factory. We will provide accommodation for customers free of charge and give them operation demonstration on site. Customer satisfaction is our greatest hope.
working
Thank you for your feedback. We currently export to 40 countries around the world. Our biggest advantage is that we are a rotary drilling rig manufacturer, which can reduce the price difference made by middlemen and import independently!
FAQ
1.Q: Are you a manufacturer?
A: Yes, we are a professional rotary drilling rig manufacturer.
2.Q: What does your company produce?
A: The main products of our company include rotary drilling rig.
3.Q: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.
4.Q: What methods of payment do you accept?
A: We accept T/T, L/C.
5.Q: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price
