24 Points IR Multi Touch Aluminum Frame Interactive Whiteboard/Smart Board

Product Description

Packaging & Delivery

Packaging Details:	Carton package with peal bags inside
Delivery Detail:	3-5 working days

24 Points IR Multi Touch Student Using Aluminum Frame Interactive Whiteboard/Smart Board with Best Peice
Product Description
Features of IWB
1, 2/10 points touching
2, Fashion aluminium frame or colorful plastic design
3, Supporting 32 touch points and 10 finger touching
4, Providing SKD and PCB solution
Specification of 82'' Riotouch interactive whiteboard

	H series
General	Model	S - 82
	Exteral frame material	Aluminum ( gray ,black )
	Ratio	4:03
	Touch Technology	Infrared Touch
	Touch Points	24 Points Touch
	Interface	USB2.0 or USB3.0
	External size	1760*1280mm
	Active area (mm)	1627*1147mm
	Package size	186*7*138cm
	Net weight	26KG
	Gross weight	29kg
Performance	Resolution(Interpolation)	32767*32767
	Linearity Error	1.5mm
	Responsible time	8ms
	Response Speed	<20ms
	Input Method	Finger, teaching point, or opaque objects
	Touch Times	Unlimited
	Touch Activation Force	No minimum touch activation force is required with IR touch technology
	Minimum Touch Object	5mm
Environmental	Temperature	Operating: -20°C ~ 70°C
		Storage: -40°C ~ 85°C
	Relative Humidity	Operating: 90%(noncondensing at max 40°C)
		Storage: 90%(noncondensing at max 40°C)
	Altitude	Up to 7,000m
	Life Time	At least 7-year
Electrical	Operation Voltage	Typical +DC 5V, +4.75V to +5.25V
	Power Supply	USB, power ripple max.200mV rms
	Power	<2W, operating current<200mA
	Agency Approvals	CE, FCC Class B,RoHS
Accessories	Wall mount brackets	8
	Installation guide	1
	Extension USB cable	5m for standard
	IWB Pen without ink	3
	CD with the software	1
	Teaching point	Optional
	Mobile stand	Optional

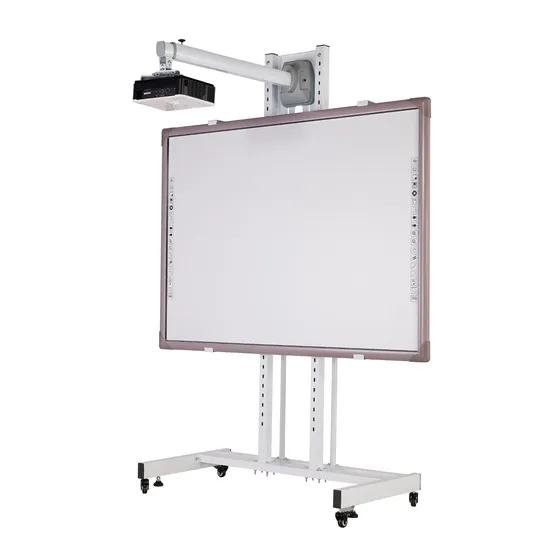

Interactive whiteboard or IWB refers to a large interactive display that connects to a computer and projector. A projector projects the computer's desktop onto the whiteboard's surface, where users can write by pen or finger. The board is typically mounted to a wall or on a floor stand, some users also like to call it electronic whiteboard or digital interactive board
RioTouch P series IWB employ infrared technology to enable finger, gloved hand or any other opaque object touch directly other than using a special pen.
Our service
1. Supply free teaching software and OEM service for VIP customers.
2. Cheaper Price with high quality products.
3. Fast delivery and excellent sale and after-sale service
4. 3 years warranty of touch frame is guaranteed
FAQ

1.Q: What's the warranty and service?
A: We provide OEM and ODM customized service,3 years warranty for SKD,1 year warranty for others
2.Q: How to assemble and use the products?
A: Please check the user's manual for reference
3.Q: Whether to provide any teaching software?
A: Yes, we provide free education software
4.Q: How to make the order?
A: Just contact us now, our enthusiastic salesman will follow you a.s.a.p.
