Cw61125q Metal Turning Horizontal Lathe Machine Tool with Lowest Price for Sale

Cw61125q Metal Turning Horizontal Lathe Machine Tool with Lowest Price for Sale

US$13,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CW61125Q
Type
Horizontal Lathe
Processing Accessory
Metal Parts
Guide Rail
Horizontal Guide Rail
Tool Holder
Vertical 4 Position Tool Post
Power Source
Mechanical Drive
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Export Standard Package
Specification
5100x2100x2150mm
Trademark
BAISHUN
Origin
China
HS Code
8458190000
Production Capacity
300 Sets Per Year

Product Description

Product Description
This series of horiozntal lathe machine tools are mainly used to undertake all kinds of turning work, it can turn all kinds of parts of the end,cylindrical, bore and metric thread, inch thread, modulus thread, diameter thread. Can be used on the turret to cut the taper alone, but also can be used on the knife with the vertical feed with the long taper motor. In addition can also bear the drilling, nesting, boring and other processes. The machine power, rigidity, and can use carbide cutting tools for thread cutting, to process a variety of ferrous metals and non-ferrous metals.

Product Parameters


Technical items
Model
CW6163
/
CW6263
CW6180Q
/
CW6280Q
CW6180B
/
CW6280B
CW61110Q /
CW62110Q
CW61125Q
/
CW62125Q
CW61125B CW61160B CW61160 CW61200 CW61250

Swing diameter over bed
630mm 800mm 800mm 1100mm 1250mm 1250mm 1600mm 1600mm 2000mm 2500mm
Swing diameter over carriage/cross slide 350mm 480mm 480mm 800mm 920mm 860mm 1200mm 1200mm 1600mm 2100mm

Swing diameter over gap/saddle
CW6163--
No gap
CW6180Q--
No gap
CW6180B--
No gap
CW61110Q--
No gap
CW61125Q--No gap

No gap
CW6263--
800mm
CW6280Q--
1000mm
CW6280B--
1000mm
CW62110Q--
1300mm
CW62125Q--1500mm
Max. Length of workpiece 1500mm; 2000mm; 3000mm;4000mm; 5000mm; 6000mm; 8000mm; 10000mm; 12000mm; 14000mm; 16000mm; 18000mm; 20000mm
Max. Weight of workpiece 2 tons 2 tons 2.5 tons 2.5 tons 2.5 tons 6 tons 6 tons 16 tons 16 tons 16 tons
Spindle hole diameter 105mm 105mm 105mm 105mm 105mm 130mm 130mm 130mm 130mm 130mm
Guide rail width 550mm 550mm 600mm 600mm 600mm 755mm 755mm 1100mm 1100mm 1100mm
Main motor power 11 kw 11 kw 11 kw 11 kw 11 kw 22 kw 22 kw 22 kw 22 kw 22 kw

Following is 32 tons load capacity heavy duty lathe machine
Model C61160 C61200 C61250 C61315
Max.swing over bed mm 1600 2000 2500 3150
Max.swing over carriage/tool post mm 1200 1600 2000 2600
Width of bed (Three lathe beds) mm 1600 1600 1600/2100 2100
Max.length of workpiece m 5-20 5-20 5-20 5-20
Max.weight of workpiece ton 32 32 32/75 75
Max.torque of face plate kg.m 8000 8000 8000 8000
Max.cutting capacity tool post kg.m 8000 8000 8000 8000
Section dimension of tool shank mm 70x70 70x70 70x70 70x70
Headstock
Progression of spindle speed Stepless Stepless Stepless Stepless
Range of spindle speed rpm 1~200
0.8-160
0.025-125
1~200
0.8-160
0.025-125
1~200
0.8-160
0.025-125
1~200
0.8-160
0.025-125
Diameter of chuck mm 1600 2000 2500 3150
Knife rest
Step. No of feed step 18 18 18 18
Range of longitudinal feed mm/r 0.125-48 0.125-48 0.125-48 0.125-48
Range of cross feed mm/r 0.063-24 0.063-24 0.063-24 0.063-24
Feed range of tool slide compound mm/r 0.063-24 0.063-24 0.063-24 0.063-24
Longitudinal rapid traverse speed mm/min 3000 3000 3000 3000
Cross rapid traverse speed mm/min 1500 1500 1500 1500
Max.travel of cross slide mm 670 800 1000 1250
Metric thread (thread pitch) mm 2-40 2-40 2-40 2-40
Inch thread mm 1-14 1-14 1-14 1-14
Module thread mm 1.5-20 1.5-20 1.5-20 1.5-20
Tailstock
Traversing capacity of sleeve mm 200 200 300 300
Rapid traverse of tailstock mm/min 3000 3000 3000 3000
Rapid traverse of sleeve mm/min 664 664 664 664
Power
Main motor power kw 75 75 90 118

Detailed Photos
1. CW6163/CW6263 Series Lathe Machine ( 2tons load capacity):
Swing over bed: 630mm;
Swing over cross slide: 350mm;
Processing length: it's up to customer's requirements;
Bed width: 550mm;
Load capacity: 2 tons;
Spindle bore: 105mm [Optional 130mm];
Main motor power: 11kw.
2. CW6180Q/CW6280Q Series Lathe Machine( 2tons load capacity):
Swing over bed: 800mm;
Swing over cross slide: 480mm;
Processing length: it's up to customer's requirements;
Bed width: 550mm;
Load capacity: 2 tons;
Spindle bore: 105mm [Optional 130mm];
Main motor power: 11kw.
3. CW6180B/CW6280B Series Lathe Machine( 2.5 tons load capacity):
Swing over bed: 800mm;
Swing over cross slide: 480mm;
Processing length: it's up to customer's requirements;
Bed width: 600mm;
Load capacity: 2.5 tons;
Spindle bore: 105mm [Optional 130mm];
Main motor power: 11kw.
4. CW61110Q/CW62110Q Series Lathe Machine( 2.5 tons load capacity):
Swing over bed: 1100mm;
Swing over cross slide: 800mm;
Processing length: it's up to customer's requirements;
Bed width: 600mm;
Load capacity: 2.5 tons;
Spindle bore: 105mm [Optional 130mm];
Main motor power: 11kw.

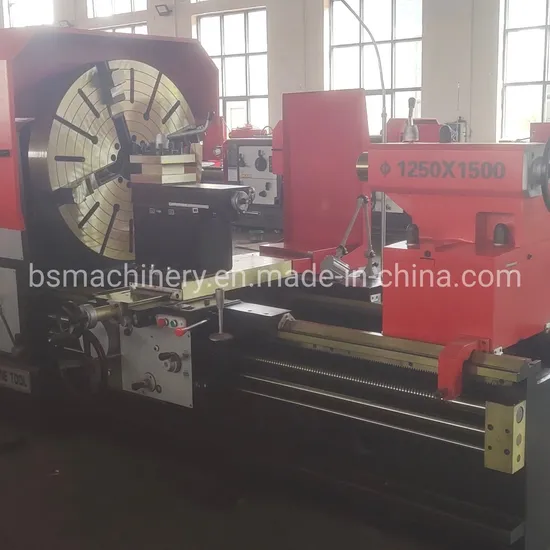

5. CW61125Q/CW62125Q Series Lathe Machine( 2.5 tons load capacity):
Swing over bed: 1250mm;
Swing over cross slide: 920mm;
Processing length: it's up to customer's requirements;
Bed width: 600mm;
Load capacity: 2.5 tons;
Spindle bore: 105mm [Optional 130mm];
Main motor power: 11kw.
6. CW61125B Series Lathe Machine( 6 tons load capacity):
Swing over bed: 1250mm;
Swing over cross slide: 860mm;
Processing length: it's up to customer's requirements;
Bed width: 755mm;
Load capacity: 6 tons;
Spindle bore: 130mm;
Main motor power: 22kw.
7. CW61160B Series Lathe Machine( 6 tons load capacity):
Swing over bed: 1600mm;
Swing over cross slide: 1200mm;
Processing length: it's up to customer's requirements;
Bed width: 755mm;
Load capacity: 6 tons;
Spindle bore: 130mm;
Main motor power: 22kw.
8. CW61160 Series Lathe Machine( 16 tons load capacity):
Swing over bed: 1600mm;
Swing over cross slide: 1200mm;
Processing length: it's up to customer's requirements;
Bed width: 1100mm;
Load capacity: 16 tons;
Spindle bore: 130mm;
Main motor power: 22kw.
9. CW61200 / CW61250 Series Lathe Machine( 16 tons load capacity):
Swing over bed: 2000mm;
Swing over cross slide: 1600mm;
Processing length: it's up to customer's requirements;
Bed width: 1100mm;
Load capacity: 16 tons;
Spindle bore: 130mm;
Main motor power: 22kw.
10. C61200 Series Lathe Machine( 32 tons load capacity):
Swing over bed: 2000mm;
Swing over cross slide: 1600mm;
Processing length: it's up to customer's requirements;
Bed width: 1600mm (Three bed ways);
Load capacity: 32 tons;
Main motor power: 75kw.
11. CNC Series Horizontal Lathe Machine:
Swing over bed: from 500 to 3150mm.
Lathe Machine Manufacturer. Good price.
Welcome inquiry.
