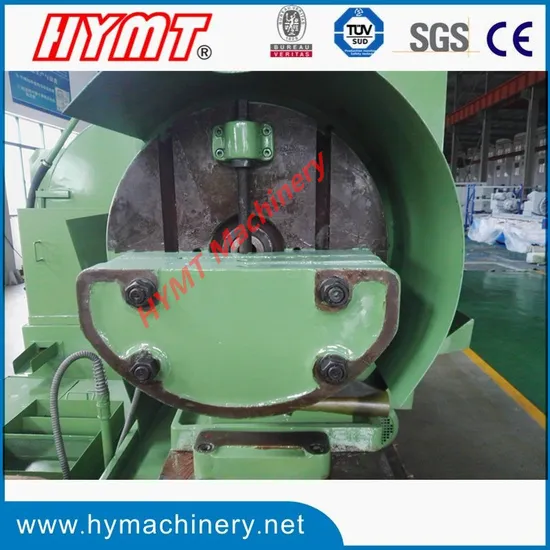

MQ8260Ax1600 mechanical type crankshaft grinding machine

Product Description

Main features:
MQ8260A series crankshaft grinding machine, the featured in simple structure, easy operation and wide application, is applicable for grinding of crank journal and main journal, as well as common cylindrical grinding.
Workpieces are gripped by center or chuck and driven by headstock motor, grinding manually;R/L cross chuck AND can be grimed if customers needed. Vertical maximum adjustment if up to 110mm and longitude one is up to 2.5mm, rotating R/L chuck to realized gearshift;Workpiece, grinding wheel, cooling pump and oil pump are driven by single motor; Rapid advance and retreat of wheel slide is driven by hydraulic.Electric interlocking structure of working table and wheel slide ensures safety in failure of adjusting and grinding.The wheel slide comes with reliable protection cover.
Main specifications:

item	MQ8260Ax1600
Max swing diameter worktable	580mm
Max radial of crank	110mm
Wearable diameter in the center rest	30-100mm
Max workpiece length	1600mm
3 jaw chuck diamter	1500mm
Final space	1600mm
Max workpiece weight	120kgs
Central height	300mm
Headstock speed	25/50/100r/min
Principal axis speed of grinding wheel rack	760r/min
Max travel along axostyle wheel head	200mm
Each table move quantity of feed hand wheel	1mm
Each table move quantity of feed hand wheel	0.005
Fast move quantity of grinding wheel	100mm
Max longitudinal move travel quantity of worktable	1600mm
Total motor	10.22kw
Wheel motor	7.5kw
Machine overall dimension	4000x2100x1630mm
Machine weight	6710kgs

HYMT SERVICES:
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you
may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
