Kc250b Large Package Tfo Twister Two for One Twisting Machine

Kc250b Large Package Tfo Twister Two for One Twisting Machine

US$460.00
10-59 Spindles
US$410.00
60-199 Spindles
US$360.00
200+ Spindles

Basic Info.

Model NO.
KC250B
Condition
New
After-sales Service
Provide
Spindle Gauge
300mm, 366mm Optional
Min. Spindles
10n, 100 Spindles Are Standard
Twist Direction
S or Z
Take-up Speed
Max. 120m/Min (Acorrding to The Twist)
Traverse
150mm~250mm
Machine Structure
Double Sides, Single Layer, Thread Manually
Take-up Angle
0-30°
Transport Package
Wooden Case
Specification
1859mm*978mm*1717mm
Trademark
KCGF
Origin
Zhejiang
HS Code
8445300000
Production Capacity
200 Sets Per Month

Product Description


Product Description

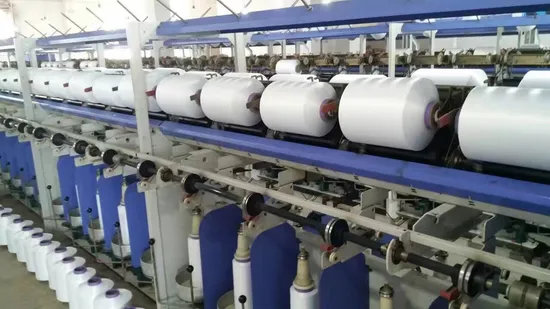

KC250B Large Package TFO Twister Two For One Twisting Machine
It is applied for making twisting of single-ply and multiplied yarns of DTY, POY, FDY, viscose rayon etc. in yarn count 75D-1000D.
Features
A. Convenient operation, reasonable transmission, compact construction and attractive appearance;
B. Flexible option on single spindle's packaging edge; also flexible operation on put on / take off taking-up bobbins;
C. It can possibly omit troubles other two-for-one twisters need to divide into small yan cones to produce; the processes of KC250B no need that so its process is decreased and easy, the efficiency and yarn quality can be improved also.
D. Manual renegade spindle-braking system is easier to operate, and also it can extend the life of belt and spindles.
Product Parameters
KC250B: make yarn twisted in the low and medium TPM;
Machine structure Double sides, single layer, thread manually
Twist direction S or Z
Twist range 65-500T/M (need to be selected)
Rated power 24KW
Spindle drive Apron belt circulation drive

Spindle gauge: 300mm, 366mm optional;
Traverse: 150mm-250mm (optional according to actual situation)
Take-up speed: max. 120m/min ( according to the twist);
Start-up mode: frequency conversion slow start;
Take-up package: max. 5kg (depend on the process parameters);
Spindle speed range: 2500-6000r/min (according to different yarns);
Spindle tensioner: ball type;
Take-up angle: 0-30°;
Number of spindles: 10n, 100 spindles are standard;

After Sales Service
For demo machine set:
10 spindles/set+Machine head;
Wooden case packing;
*provide the spare parts;
*Gurantee: one year;
*Provide remote installation or door-to-door installation service;
*Provide after sales service;
*Welcome to visit our factory;
Certifications
ISO9001; ISO14001; ISO45001; CE;
Company Profile
Zhejiang Kaicheng lntelligent Machinery Co., Ltd. is a national high-tech enterprise dedicated to manufacturing intelligent winders and twisters, and also researching, developing automation control software for high-end textile machinery. Kaicheng insists on technological innovation as its core competitiveness of the enterprise. We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe. We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North-America, Central and South America, as well as Europe. Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co., Ltd.& Zhejiang Sci-tech University in year of 2020.
