Leadcrete Prestresed Hydraulic Jack for Construction

Product Description

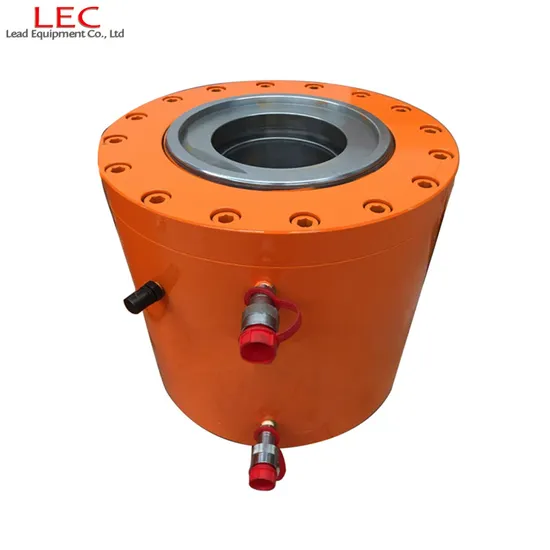

Leadcrete Prestresed Hydraulic Jack For Construction
Descriptions:
1. It is suitable for the tension of group anchors with 1860-2000 sizes, Φ15.24, Φ12.7 strands.
2. In some certain circumstance it can be used in the working of pushing, jacking and transforming and so on.
3. Easy to operate and used widely.
Notice: according to users' requirement, YDC prestressing jack can be configured
Applications:
It is matched with prestressed anchorage widely used in the construction of bridge and buildings, railway and subway,
water conservancy and hydropower engineering.
Features:
YDC Feed-through jacks are the new designed products in our company, are the upgrades of the primary jacks.
1. Using new seals, to synchronous strengthen the seal-ability under great pressure.
2. Using special alloy steel with heat treatment process, reducing the cylinder's expansion ratio in the tensioning
process. So the life of seals and sealing performance can be improved about 20%.
3. In the tensioning the operating process, jacks is easily damaged under overpressure because of the jack-based
pullback cylinder, so we added the overpressure valve on the jacks to pressure production. Meanwhile we improved
the original of commonly used structure by wire disc and flanged disc, to make the bearing capacity for oil pressure
strengthen. So enormously reduce the possibility of mechanical damage due to improper operation.
In the word, the YDC series feed-through jacks' performance is improved, and widely used in pre-stressing and post
stressing construction.
Technical parameter:

Item/ Dimensions	Nominal Tension	Rated Oil Pressure	Pulling Stroke	Area of Tensioning Piston	Center hole Diameter	Minimum Working Space		The Reserved Length of Strand	Over dimension
	KN	Mpa	mm	mm²	mm	L(mm)	E(mm)	K(mm)	out diameter (mm)	length (mm)
YDC60	60	54	150	1119	30	874	59.5	387	70	287
YDC130	130	50	160	2592	30	838	77	395	90	295
YDC270	270	61	185	4418	30	888	89	415	105	315
YDC650	650	50	150	13018	40	860	145	380	170	288
YDC1100	1100	51	200	19792	80	1210	184	680	217	330
YDC1500	1500	50	200	30257	90	1210	230	680	270	330
YDC2000	2000	51	200	39820	110	1296	272	723	320	360
YDC2500	2500	52	200	48381	127	1306	298	728	350	360
YDC3000	3000	52	200	57727	145	1322	336	736	375	380
YDC3500	3500	48	200	73435	162	1322	336	745	415	395
YDC4000	4000	51	200	79168	162	1324	374	745	435	395
YDC4600	4600	51	200	91028	180	1350	420	750	470	410
