Robust Body Steel Casting Frame Primary Jaw Crusher for Mining

Robust Body Steel Casting Frame Primary Jaw Crusher for Mining

US$3,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
PE250*400 400*600 600*900
Cutter Material
High-Speed Steel
Drive
Electric
Feed Size
150mm-299mm
Jaw Plate Material
High Manganese Steel
Object
Copper Ore, Gold Ore, Iron Ore, Limestone, Quartz
Model
PE150*250
Power
5.5kw
Capacity
1-3t/H
Size
720*660*850mm
Weight
0.8t
Diesel Engine
Optional
Input Size
125mm
Output Size
10-40mm
Transport Package
Wooden Case or Nude
Specification
1200*1500
Trademark
Kaichuang
Origin
Henan
HS Code
8474201000
Production Capacity
100 Sets/Month

Packaging & Delivery

Package Size
160.00cm * 150.00cm * 230.00cm
Package Gross Weight
1000.000kg

Product Description

Product Description Jaw crusher machine is a coarse crushing equipment widely used in mining, construction, building materials, highways, railways and other fields.
Working Principle The working principle of the jaw crusher is based on the squeezing effect between the movable jaw plate and the static jaw plate. The motor drives the eccentric shaft to rotate through the belt, causing the movable jaw plate to periodically approach and leave the static jaw plate, thereby squeezing, rubbing, grinding and other multiple crushing processes for the material.
The structure of the jaw crusher mainly includes the frame, eccentric shaft, large pulley, flywheel, movable jaw, side guards, toggle plate, toggle plate rear seat, gap adjustment screw, return spring, fixed jaw plate and movable jaw plate, etc. Features include: Simple structure, easy to maintain and operate. The crushing ratio is large and larger materials can be broken into smaller particles. Stable performance, reliable operation, able to adapt to various harsh working environments
Machine Parameters
Model Feed opening (mm) Max feed size(mm) C.S.S (mm) Capacity (t/h) Power (kw) Overall dimensions (mm)
PE250*400 400*250 200 20-50 5­-20 15 1430*1310*1340
PE400*600 400*600 350 40-100 15-60 30-37 1700*1732*1653
PE500*750 500*750 425 50-100 40-110 45-55 2035*1921*2000
PE600*900 600*900 480 65-160 90-180 55-75 2290*2206*2370
PE750*1060 750*1060 630 80-140 110-230 90-110 2655*2302*3110
PE900*1200 900*1200 750 95-165 220-450 110-132 3800*3166*3045
PE1000*1200 1000*1200 850 200-300 280-560 110-160 5350*4280*3050
PE1200*1500 1200*1500 1020 150-300 400-800 160-220 6380*5310*3710
PE1500*1800 1500*1800 1200 210-360 520-1100 280 7460*6235*4249

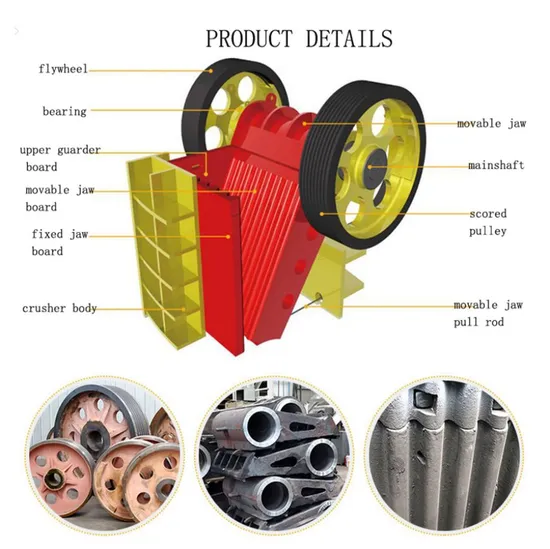

Product Details
Application
Product Show
Crushing
Company Profile
Henan Kaichuang Machinery Equipment Co., Ltd. is a modern enterprise focusing on the research, development, production and sales of stone crushers. The factory is located in Gongyi, Zhengzhou, Henan, with advanced production equipment and strong technical force.
Our factory has an experienced R&D team who constantly pursues innovation and combines market demand and advanced technology to carefully design a variety of stone crushers with excellent performance, high efficiency and energy saving. These products cover jaw crushers, impact crushers, cone crushers, hammer crushers and other types, which can meet the diverse needs of different customers in the fields of ore crushing, construction waste processing, road construction and other fields.
The factory has a professional after-sales team to provide customers with comprehensive service support such as equipment installation and commissioning, technical training, and maintenance. No matter where the customer is, as long as they encounter a problem, we can respond quickly to ensure that the customer's production is not affected.
Over the years, our stone crushers have been selling well in domestic and foreign markets and have won widespread praise and trust from customers. In the future, Henan Kaichuang Machinery Equipment Co., Ltd. will continue to adhere to the business philosophy of "quality first, customer first", continue to innovate and progress, provide customers with better products and services, and contribute to the development of the stone crushing industry.
