Beam Drilling Sawing Machine CNC High Quality H Beam 3-Drills Drilling Machine

Beam Drilling Sawing Machine CNC High Quality H Beam 3-Drills Drilling Machine

US$100,000.00-170,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
AMX-BD
Process Usage
Drill Holes
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.03~0.04(mm)
Certification
CE, ISO 9001
Condition
New
Max. Length of Workpiece
12m
Drilling Diameter
12mm-50 mm
Feed
0 ~10 M/Min
Spindle Rpm
Stepless120~560 Rpm
Structure
Plate Welded
Transport Package
Suitable Package
Trademark
AI-MACHINE
Origin
China
Production Capacity
5sets/Year

Product Description

Product Description

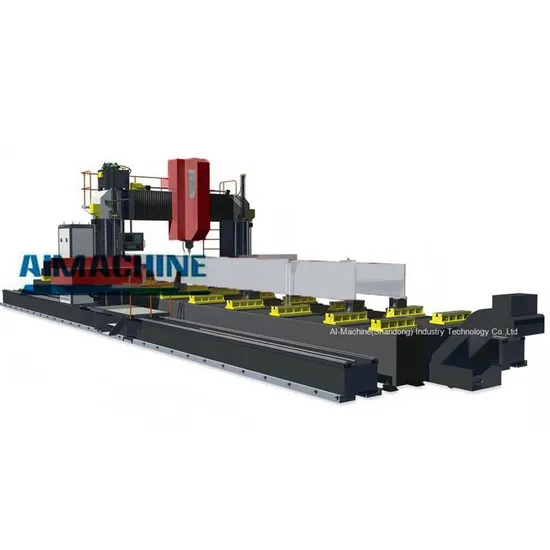

It was designed for large-section beam fabricators It is equipped with three moving drilling spindles. All spindles are built on the gantry and moving along with drilling table. All these 3 drilling units can work simultaneously on the web and flanges of the beam. Reduced setup time & simple to operate; Sturdy frame, no vibrations and noiseless; Circle-Controlled system to measure accurately; Specialized for large-section beam drilling. Layout marking function easy for welding. Autocad, X-STEEL & Tekla file reading instead of manual input. Detailed Photos
Product Parameters
H-Beam Web:500-1500 mm
Flange:200-1500mm
Max. Length of Workpiece 12,000 mm
Max. Loading Capacity 3 tons/m, total 35 Tons/whole worktable
No. of Drilling Spindle 3 (Left + Right + Top)
Drilling Diameter Φ12.5~Φ50 mm
Spindle taper 5#
Motor Power of Drilling Spindle 7.5 kW x 3
Spindle Y & Z movement Yes
Feed CNC feeding; 0 ~10 m/min (vertical to H-beam)
Cooling mode Outside cooling
Spindle rpm Stepless120~560 rpm
Profile Height Measuring Included
Profile Width Measuring Included
Layout Point Marking (not drilling through) Available (for welding purpose)
Moving Speed 0 ~ 10m/min
Drive Model Double side servo + Gear
Structure Plate welded
Manual Programming Available
Type Chain & Plate recycling moving type
Speed 1/min
No. of scraps removal system 1sets

Packaging & Shipping

Company Profile
AI-Machine(Shandong) Industry Technology Co.,Ltd is a high-tech company known for its advanced technology and perfect after-sales service. The company is mainly engaged in CNC Machines for angle steel tower, CNC Machines for steel structure ,CNC metal coil processing complete sets of equipment, like circle blanking line, cross-shear line, slitting line for hot-rolled and cold-rolled series plate. Design and manufacture of other non-standard equipment; design and manufacture of hydraulic and electric control systems; design and manufacture of special hydraulic machinery.
We have been engaged in design and development for many years and have a technical team with rich manufacturing experience, and have advanced production equipment as the backing.
We have a complete after-sales service network, which can provide you with full support from pre-sales to after-sales, so that you can get the most satisfactory equipment, to ensure that you solve all the problems you encounter in the most convenient and timely manner during use, and get our thoughtful services. Create your future with our technology and services.

Other products
FAQ
1. The delivery time?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. After-sale service?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Installation and Training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Model choose?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
