US$2.00-5.00
|
1,000 kg
(MOQ)
|
Basic Info.
Tensile Strength
66.6 MPa
Color
White, Black, Others
Market
Euro, Asia, Central and South America
Specification
Length 1000-3500mm
Production Capacity
200 Tons / Month
Packaging & Delivery
Package Size
105.00cm * 105.00cm * 80.00cm
Package Gross Weight
1000.000kg
Product Description
Re: Polyoxymethylene (POM) Rod
POM plastic particles are extruded by an extruder at high temperature, and then extruded through the corresponding die mouth to obtain rods of different diameter. It is a kind of thermoplastic engineering plastic with high hardness and high crystallinity. Because of the good characteristics, it is very suitable for machining on automatic lathe, especially for manufacturing precision parts.
1. Features: *Physical properties: polyoxymethylene is a hard and dense material with smooth surface and luster, light yellow or white, high crystallinity, good colourability, well proportioned size, and very small water absorption.
*Mechanical properties: polyoxymethylene has high hardness and steel property, high resistance to creep and stress relaxation, excellent wear resistance, self lubrication, and fatigue, which are incomparable with other engineering plastics.
*Thermal performance: polyoxymethylene has a high thermal deformation temperature and can be used for a long time in the temperature range of - 40 ºC - 104 ºC.
*Electrical performance: its dielectric loss and dielectric constant change little in a wide range of frequencies and temperatures, and maintain good arc resistance.
*Chemical properties: polyoxymethylene has good solvent resistance, oil resistance, weak acid resistance, weak base resistance and other properties.
2. Applications: POM rods are widely used to manufacture various sliding rotating machinery, precision parts, gears, bearings, etc. The use industry covers automobile, electronics, clothing, medical, machinery, sports equipment and other fields.
3. Types: POM-C/H (black and white) represents POM copolymer (POM-C) and POM homopolymer (POM-H) respectively. POM copolymer has low melting point, thermal stability, chemical corrosion resistance, flow characteristics, hydrolysis resistance, strong alkali resistance and thermal oxidation degradation, and its processability is better than homoformaldehyde. POM homopolymer has higher crystallinity, creep resistance, lower thermal expansion rate, and wear resistance, mechanical strength, rigidity & thermal deformation temperature better than copolymer formaldehyde. (At present, POM-C is widely used for POM semi-finished products on the market.)
4. Test Report:
No. | Item | Unit | Result | Test Method |
1 | Density | g/cm³ | 1.413 | GB/T 1033.1 -2008 |
2 | Tensile strength | MPa | 66.6 | GB/T 1040 .2/1B-2006 |
3 | Elongation at break | % | 24 |
4 | Bending strength | MPa | 102 | GB/T 9341 -2008 |
5 | Modulus of elasticity in static bending | MPa | 2820 |
6 | Charpy Notched Impact Strength | kJ/m² | 7.8 | GB/T 1043 . 1/1eA -2008 |
7 | Impact intensity of falling ball | / | No cracking | GB/T 13520 - 1992 |
8 | Vicat heat resistance (1kg , 50C/h) | ºC | 163 | GB/T 1633 -2000 |
9 | Variation Rate Of Heating Sizes(longitudinal) | % | 0.08 | GB/T 22789.1 -2008 |
10 | Variation Rate Of Heating Sizes(transverse) | % | 0.04 |
11 | Rockwell hardness | / | 118 | GB/T 3398.2 -2008 |
12 | Surface resistance coefficient | Ω | 8.5×1012 | GB/T 1410 -2006 |
13 | Volume resistance coefficient | Ω · m | 1.3×1012 |
14 | Dielectric constant (1MHz) | / | 3.7 | GB/T 1409 -2006 |
15 | Dielectric loss(1MHz) | / | 0.055 |
16 | Dielectric strength | kV/mm | 6.93 | GB/T 1408.1 -2016 |
17 | Friction coefficient | / | 0.18 | GB/T 3960 -2016 |
5. Specifications: *Length: 1000~3500mm
*Diameter: 8~350mm
6. Package:
Rods packed in pallet.

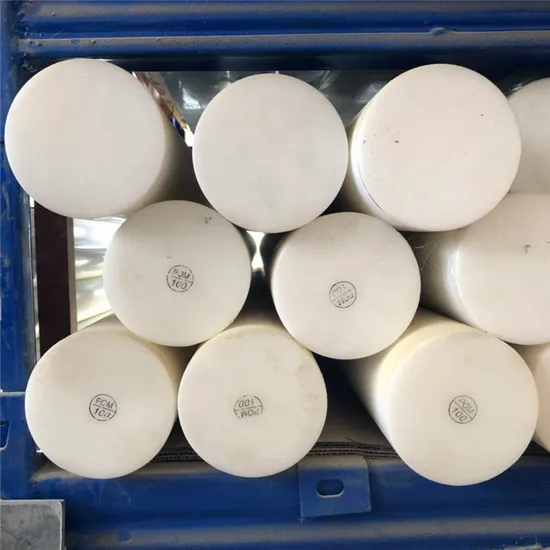

7. Product Photos:
**Recommend Products:
FAQ
Q: Are you trading company or manufacturer ?
A: Both
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5--15days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ? A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shipment.
