CNC Hydraulic Metal Stainless Steel Aluminum Shearing Guillotine Cutting Shearing Machine

CNC Hydraulic Metal Stainless Steel Aluminum Shearing Guillotine Cutting Shearing Machine

US$16,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
QC11K-16X2500
Certification
CE, ISO 9001:2000, ISO 9001:2008, SGS
Condition
New
Warranty
2 Years
Cutting Length
2600mm
Max Cutting Thickness
16mm
Motor Brand
Siemens
Blade Brand
Shanghai
Oil Pump
Sunny
Transport Package
Standard
Specification
2800mmX1630mmX2800mm
Trademark
XTW
Origin
China
HS Code
8462219000
Production Capacity
280 Sets Per Year

Packaging & Delivery

Package Size
288.00cm * 165.00cm * 225.00cm
Package Gross Weight
9700.000kg

Product Description

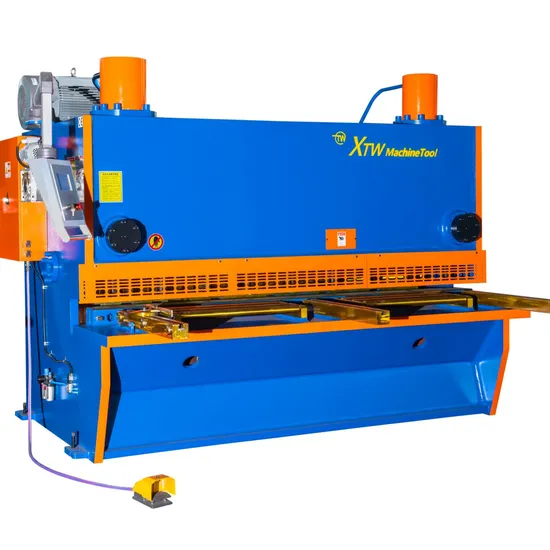

CNC Hydraulic Metal Stainless Steel Aluminum Shearing Guillotine Cutting Shearing Machine
Guillotine Shear Definition: A hydraulically operated cutting device that consists of a horizontallyoriented fixed lower blade and a horizontally-oriented moving upper blade that travels in vertical guide channels. May include a hydraulically-operated hopper that compresses the material to be sheared
Featured:
1.Premium shear machine with Delem CNC control(Optional) Normally Equipped Estun E21S.
2.Unique blade design allows for 4 different cutting tools on one blade.
3.Significantly longer working life than other machines.
4.High speed of backgauge of up to 250mm/s, and stoke of up to 1000mm/s.(Optional Servo Motor Driven Backgauge)
Specification Shearing Thickness(mm) Shearing Width(mm) Backgauge Range(mm) Shearing Angle(Degree) Height of working table(mm) Main Power(kw)
QC11Y/K-6X2500 6 2500 20-600 30°-1°30' 800 7.5
QC11Y/K-6X3200 6 3200 20-600 30°-1°30' 800 7.5
QC11Y/K-6X4000 6 4000 20-600 30°-1°30' 800 7.5
QC11Y/K-6X5000 6 5000 20-800 30°-1°30' 850 11
QC11Y/K-8X2500 8 2500 20-600 30°-1°30' 800 11
QC11Y/K-8X3200 8 3200 20-600 30°-2° 850 11
QC11Y/K-8X4000 8 4000 20-600 30°-2° 900 11
QC11Y/K-8X5000 8 5000 20-800 30°-2° 1000 15
QC11Y/K-8X6000 8 6000 20-800 30°-2° 1050 15
QC11Y/K-12X2500 12 2500 20-600 30°-2° 840 15
QC11Y/K-12X3200 12 3200 20-600 30°-2° 900 18.5
QC11Y/K-12X4000 12 4000 20-800 30°-2° 940 18.5
QC11Y/K-12X5000 12 5000 20-1000 30°-2° 1000 22
QC11Y/K-12X6000 12 6000 20-1000 30°-2° 1060 30
QC11Y/K-16X2500 16 2500 20-600 30°-2°30' 840 22
QC11Y/K-16X3200 16 3200 20-600 30°-2°30' 900 22
QC11Y/K-16X4000 16 4000 20-800 30°-2°30' 940 22
QC11Y/K-16X5000 16 5000 20-1000 30°-2°30' 1000 30
QC11Y/K-16X6000 16 6000 20-1000 30°-2°30' 1100 37
QC11Y/K-20X2500 20 2500 20-600 30°-3° 900 30
QC11Y/K-20X3200 20 3200 20-600 30°-3° 950 30
QC11Y/K-20X4000 20 4000 20-800 30°-3° 1100 30
QC11Y/K-20X5000 20 5000 20-1000 30°-3° 1100 37
QC11Y/K-20X6000 20 6000 20-1000 30°-3° 1200 37
QC11Y/K-25X2500 25 2500 20-600 30°-3°30' 900 37
QC11Y/K-25X3200 25 3200 20-600 30°-3°30' 950 37
QC11Y/K-25X4000 25 4000 20-800 30°-3°30' 1100 37
QC11Y/K-32X2500 32 2500 20-600 30°-4° 1000 55
QC11Y/K-32X3200 32 3200 20-600 30°-4° 1100 55
QC11Y/K-40X2500 40 2500 20-600 30°-4° 1200 55
QC11Y/K-40X3200 40 3200 20-1000 30°-4° 1200 55
QC11Y/K-50X3200 50 3200 20-1000 30°-4° 1200 90

NANTONG XINTONGWEI MACHINE TOOL CO.,LTD Located in the eastern part of the Central Jiangsu Plain, "the hometown of Chinese shearing, folding and rolling machine tools" - Haian Libao. It is adjacent to the Yellow Sea in the east, the Yangtze River in the south, Xinchang Railway in the west, and close to the 204 and 328 national highways. The company was formerly known as "the original Haian County Haiwei Machine Tool Factory." Specializing in the production of "Tongwei" brand series of shearing machines, bending machines, rolling machines, leveling machines, slitting machines, uncoiling and leveling production lines and other sheet metal processing equipment .The company has a group of professionals who have been engaged in forging design for a long time. Through the strong alliance with various casting and forging research institutes and major technical research institutes, the product structure is continuously improved, and the application of new technologies is in a leading position in the same industry. , so that the performance of the whole machine reaches the international advanced level, and it is an ideal substitute for imported machine tools. In the past few years, the company has developed a number of new structures and new technologies, and applied for a number of patents. The products have passed the provincial and municipal quality and technical supervision and inspections for many times, and have won the honorary title of "Contract-honoring and Promise-keeping" enterprises. The company's products are widely used and sold throughout the country and exported to Southeast Asia, West Asia, Africa, and Russia in recent years. And other European countries, have a place in the European and American markets. The company adheres to the tenet of "Quality First. Service First. Reputation First", takes customer satisfaction as the operating principle, and insists on providing customers with thoughtful pre-sale, in-sale, and after-sale services.
