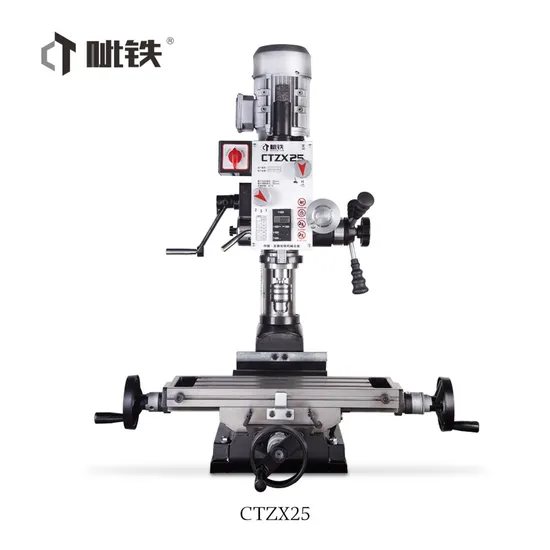

Factory Supply Discount Price Mini Zx25 Drilling Milling Machine
| US$2,960.00-3,200.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Zx25
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
960*580*780mm
Trademark
CTMACH
Origin
China
Production Capacity
1000
Packaging & Delivery
Package Size
96.00cm * 58.00cm * 78.00cm
Package Gross Weight
135.000kg
Product Description
Medium capacity benchtop milling machineDirect drive (no belts or gears)
Absolutely silent operation
Very good precision and excellent rigidity
Ground table, 3 standard grooves
Spindle speed adjustable by electronic speed control
Digital display of the rotation frequency
Digital depth gauge with reset
Micrometric fine feed or standard drilling function
Possible adjustment of the clearance on the 3 slides by conical slide
| Maximum drilling diameter | 25mm | Spindle taper | R8/M12 |
| Maximum face milling capacity | 63mm | Spindle stroke | 70mm |
| Maximum vertical milling capacity | 16mm | Distance spindle axis to column guide | 160mm |
| Workbench size | 700×180mm | Spindle end to table distance | 370mm |
| T-slot size | 12mm | Headstock swirl angle around | ±90° |
| X-axis travel | 485mm | Spindle speed/Grade | 100-2500rpm/variable |
| Y-axis travel | 140mm | Motor | 750w |
| N.W./G.W. | 123/135kg | Machine size | 960×580×780mm |
| Packing size | 730×770×900mm | \ | \ |
