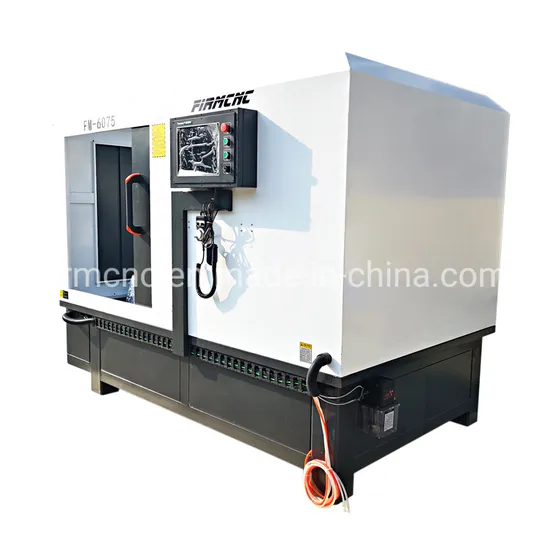

High Precision CNC Milling Metal Shoe Mould Making CNC Machine

High Precision CNC Milling Metal Shoe Mould Making CNC Machine

US$5,500.00-9,000.00 1 set (MOQ)

Basic Info.

Model NO.
FM6075
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Working Area
600*750mm
Machine Structure
The Whole Cast Iron Bed, Heavy-Duty
Spindle Power
3.0kw Constant Water Cooling Spindle
Inverter
Taiwan Delta Inverter
Motors & Driver
Original Yaskawa Servo Motors & Drivers
Trasmission Way
Taiwan Tbi Ball Screw
Guide Rails
Hiwin Linear Square Guide Rails
Control System
Original Nc Studio Control System
Software
Artcam of Type3
Weight
1500kg
Transport Package
Standard Box
Specification
CE, SGS, ISO
Trademark
FIRMCNC
Origin
Jinan, China
HS Code
8465990000
Production Capacity
100 Sets/Month

Product Description

High precision cnc milling metal shoe mould making cnc machine
Application:
Can be used for advertisement engraving, advertisement cutting, stone processing, Cutting and AL molding, mold manufacturing, wood processing, craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, light equipment mold processing, sign and mark manufacturing, acrylic board processing, as well as stamp cutting and PCB cutting
Advantage:
1.Whole cast iron structure, the body will not transform for long use.
2. X Y Z use 25mm HIWIN linear square guide rail, it is more stable than the normal round one.
3.X Y Z transmission use high precision ball screw, avoid the spindle suddenly up and down.
4.Gantry fixed,table move design make the machine more precise.
5. Imported control system,higher precision, easier and more convenient to operate.
6. YASKWA Servo motor and driver, break-point memory makes sure accidental workng and avoid the waste of materials.
7.X axis has steel cover,keep the machine clean and long life.
Technical Data:

Performance index

FM6075

X,Y working area

600×750mm

Z working area

200mm

Max travel speed

4m-5.5m/min

Max engraving speed

2m-3m/min

Resolution ratio

0.005mm

Repositioning precision

0.01mm

Max feeding heigh

150mm

Command

G Code *.mmg*.plt

Surroundings for software

windows98/2000/xp

Power

AC220V/60Hz

Main axle power rate

1.5kw Constant Water Cooling Spindle

Spindle speed

0-24000rpm/min

Work Mode

Servo system

Main configuration
Company information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
our machine including CNC router machines (CNC wood routers, stone carving machines, metal CNC machines, 3D CNC routers, 3 axis CNC routers,
4 axis CNC routers and 5 axis CNC routers), CNC laser machines (laser marking machines, laser engraving machines,
laser cutting machines and laser welding machines), CNC milling machines, CNC plasma cutting machines,
CNC machining centers, CNC wood turning lathe machines, CNC spare parts and other CNC machines etc.
Packing & Shipping:
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Guarantee:
Two years quality guaranty, the machine with main parts(excluding the
consumables) shall be changed free of charge when if any problem during the warranty period.
Service: ( Provide whole life technical support, 24h online )
Before sale:
We would always be here to provide any information you need at the first time, and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional
damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
5) Could be remote control if needed.
