Yej Electromagnetic Brake Motor Three Phase Induction AC Electric Brake Motors

Product Description

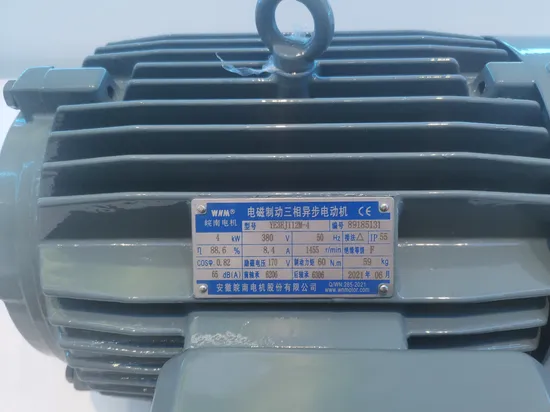

Electromagnetic Brake Motor
---------------------------------------------------------------------------------------------
Applications
Widely used for driving machine tools, printing machinery, forging press, transport machinery, packing machinery, food machinery, construction machinery, and woodworking machinery where quick stop, accurate braking, reciprocated operation are demanded.
General Description Frame sizes: 80 to 315 Rated output: 0.18 to 220kW Voltage: 380V Frequency: 50Hz Efficiency levels: IE1 Enclosure: IC411 - TEFC Degree of protection: IP55 (motor) & IP23 (brake) Braking mode: Power failure brake Rectification code: One-half period rectification Features
Electromagnetic brake, fast braking, energy saving, simple structure, exact position.
Optional Features:
Electrical:
Insulation Class:H
Thermal Protection: PTC Thermistor, Thermostat or PT100
Mechanical:
Others mountings
Sealing:Lip seal, Oil seal
Space Heater
Drain Hole

Model	Output kW	Rated Ampere A	RPM	Eff.%	Power Factor	Rated Torque N.m	LRT FLT Tst TN	LRA FLA Ist IN	BDT FLT Tmax TN	dB(A)
Synchronous speed 3000 r/min
YE3EJ80M1-2	0.75	1.7	2870	80.7	0.83	2.50	2.2	7.0	2.3	67
YE3EJ80M2-2	1.1	2.4	2875	82.7	0.83	3.65	2.2	7.3	2.3	71
YE3EJ90S-2	1.5	3.2	2880	84.2	0.84	4.97	2.2	7.6	2.3	75
YE3EJ90L-2	2.2	4.6	2880	85.9	0.85	7.29	2.2	7.6	2.3	75
YE3EJ100L-2	3	6.0	2880	87.1	0.87	9.95	2.2	7.8	2.3	79
YE3EJ112M-2	4	7.8	2915	88.1	0.88	13.1	2.2	8.3	2.3	79
YE3EJ132S1-2	5.5	10.6	2935	89.2	0.88	17.9	2.0	8.3	2.3	83
YE3EJ132S2-2	7.5	14.4	2930	90.1	0.88	24.4	2.0	7.9	2.3	83
YE3EJ160M1-2	11	20.6	2950	91.2	0.89	35.6	2.0	8.1	2.3	87
YE3EJ160M2-2	15	27.9	2945	91.9	0.89	48.6	2.0	8.1	2.3	87
YE3EJ160L-2	18.5	34.2	2945	92.4	0.89	60.0	2.0	8.2	2.3	87
YE3EJ180M-2	22	41.8	2950	92.7	0.89	71.2	2.0	8.2	2.3	92
YE3EJ200L1-2	30	54.7	2965	93.3	0.89	96.6	2.0	7.6	2.3	92
YE3EJ200L2-2	37	67.4	2965	93.7	0.89	119	2.0	7.6	2.3	95
YE3EJ225M-2	45	84.4	2965	94.0	0.90	145	2.0	7.7	2.3	97
YE3EJ250M-2	55	98.5	2975	94.3	0.90	177	2.0	7.7	2.3	98
YE3EJ280S-2	75	134	2975	94.7	0.90	241	1.8	7.1	2.3	99
YE3EJ280M-2	90	160	2975	95.0	0.90	289	1.8	7.1	2.3	99
YE3EJ315S-2	110	197	2975	95.2	0.90	353	1.8	7.1	2.3	101
YE3EJ315M-2	132	236	2975	95.4	0.90	424	1.8	7.1	2.3	101
YE3EJ315L1-2	160	282	2975	95.6	0.91	514	1.8	7.2	2.3	103
YE3EJ315L2-2	200	352	2975	95.8	0.91	642	1.8	7.2	2.2	103

Model	Output kW	Rated Ampere A	RPM	Eff.%	Power Factor	Rated Torque N.m	LRT FLT Tst TN	LRA FLA Ist IN	BDT FLT Tmax TN	dB(A)
Synchronous speed 1500 r/min
YE3EJ80M1-4	0.55	1.4	1430	80.6	0.75	3.67	2.3	6.0	2.3	61
YE3EJ80M2-4	0.75	1.8	1430	82.5	0.75	5.01	2.3	6.6	2.3	61
YE3EJ90S-4	1.1	2.6	1430	84.1	0.76	7.35	2.3	6.8	2.3	67
YE3EJ90L-4	1.5	3.5	1440	85.3	0.77	9.95	2.3	7.0	2.3	67
YE3EJ100L1-4	2.2	4.8	1440	86.7	0.81	14.6	2.3	7.6	2.3	70
YE3EJ100L2-4	3	6.3	1440	87.7	0.82	19.9	2.3	7.6	2.3	70
YE3EJ112M-4	4	8.4	1455	88.6	0.82	26.3	2.2	7.8	2.3	74
YE3EJ132S-4	5.5	11.2	1465	89.6	0.83	35.9	2.0	7.9	2.3	78
YE3EJ132M-4	7.5	15.0	1465	90.4	0.84	48.9	2.0	7.5	2.3	78
YE3EJ160M-4	11	21.5	1470	91.4	0.85	71.5	2.0	7.7	2.3	82
YE3EJ160L-4	15	28.8	1470	92.1	0.86	97.4	2.0	7.8	2.3	82
YE3EJ180M-4	18.5	35.3	1470	92.6	0.86	120	2.0	7.8	2.3	82
YE3EJ180L-4	22	41.8	1470	93.0	0.86	143	2.0	7.8	2.3	82
YE3EJ200L-4	30	56.6	1475	93.6	0.86	194	2.0	7.3	2.3	84
YE3EJ225S-4	37	69.6	1480	93.9	0.86	239	2.0	7.4	2.3	84
YE3EJ225M-4	45	84.4	1480	94.2	0.86	290	2.0	7.4	2.3	84
YE3EJ250M-4	55	103	1485	94.6	0.84	354	2.0	7.4	2.3	86
YE3EJ280S-4	75	136	1490	95.0	0.88	481	2.0	6.9	2.3	89
YE3EJ280M-4	90	163	1490	95.2	0.88	577	2.0	6.9	2.3	89
YE3EJ315S-4	110	199	1485	95.4	0.89	707	2.0	7.0	2.2	96
YE3EJ315M-4	132	241	1485	95.6	0.88	849	2.0	7.0	2.2	96
YE3EJ315L1-4	160	288	1485	95.8	0.89	1029	2.0	7.1	2.2	97
YE3EJ315L2-4	200	359	1485	96.0	0.90	1286	2.0	7.1	2.2	97
Synchronous speed 1000 r/min
YE3EJ80M1-6	0.37	1.2	910	68.0	0.70	3.88	1.9	5.5	2.1	58
YE3EJ80M2-6	0.55	1.6	925	72.0	0.71	5.68	1.9	5.5	2.1	58
YE3EJ90S-6	0.75	2.0	945	78.9	0.71	7.59	2.0	6.0	2.1	61
YE3EJ90L-6	1.1	2.8	950	81.0	0.73	11.1	2.0	6.0	2.1	65
YE3EJ100L-6	1.5	3.8	950	82.5	0.73	15.1	2.0	6.5	2.1	67
YE3EJ112M-6	2.2	5.4	965	84.3	0.74	21.8	2.0	6.6	2.1	74
YE3EJ132S-6	3	7.2	975	85.6	0.74	29.4	1.9	6.8	2.1	71
YE3EJ132M1-6	4	9.5	975	86.8	0.74	39.2	1.9	6.8	2.1	71
YE3EJ132M2-6	5.5	12.7	975	88.0	0.75	53.9	1.9	7.0	2.1	71
YE3EJ160M-6	7.5	16.2	980	89.1	0.79	73.1	2.0	7.0	2.1	75
YE3EJ160L-6	11	23.1	980	90.3	0.80	107	2.0	7.2	2.1	75
YE3EJ180L-6	15	30.9	980	91.2	0.81	146	1.9	7.3	2.1	78
YE3EJ200L1-6	18.5	37.8	985	91.7	0.81	179	1.9	7.3	2.1	78
YE3EJ200L2-6	22	44.8	985	92.2	0.81	213	1.9	7.4	2.1	78

Model	Output kW	Rated Ampere A	RPM	Eff.%	Power Factor	Rated Torque N.m	LRT FLT Tst TN	LRA FLA Ist IN	BDT FLT Tmax TN	dB(A)
Synchronous speed 1000 r/min
YE3EJ225M-6	30	59.1	985	92.9	0.83	291	1.9	6.9	2.1	81
YE3EJ250M-6	37	71.7	985	93.3	0.84	359	1.9	7.1	2.1	83
YE3EJ280S-6	45	85.8	990	93.7	0.85	434	1.9	7.3	2.0	85
YE3EJ280M-6	55	103	990	94.1	0.86	531	1.9	7.3	2.0	85
YE3EJ315S-6	75	145	990	94.6	0.84	723	1.9	6.6	2.0	90
YE3EJ315M-6	90	171	990	94.9	0.85	868	1.9	6.7	2.0	90
YE3EJ315L1-6	110	209	990	95.1	0.85	1061	1.9	6.7	2.0	90
YE3EJ315L2-6	132	247	990	95.4	0.86	1273	1.9	6.8	2.0	90
Synchronous speed 750 r/min
YE3EJ80M1-8	0.18	0.80	700	56.0	0.61	2.46	1.8	3.3	1.9	54
YE3EJ80M2-8	0.25	1.1	700	59.0	0.61	3.41	1.8	3.3	1.9	54
YE3EJ90S-8	0.37	1.4	695	66.0	0.61	5.08	1.8	4.0	2.0	58
YE3EJ90L-8	0.55	2.0	695	70.0	0.61	7.56	1.8	4.0	2.0	58
YE3EJ100L1-8	0.75	2.3	705	73.5	0.67	10.2	1.8	4.0	2.0	61
YE3EJ100L2-8	1.1	3.2	705	76.5	0.69	14.9	1.8	4.0	2.0	61
YE3EJ112M-8	1.5	4.2	715	77.5	0.70	20.0	1.8	4.0	2.0	63
YE3EJ132S-8	2.2	5.9	730	80.0	0.71	28.8	1.8	5.5	2.2	66
YE3EJ132M-8	3	7.6	730	82.5	0.73	39.2	1.8	5.5	2.2	66
YE3EJ160M1-8	4	9.8	725	85.0	0.73	52.7	1.9	6.0	2.2	69
YE3EJ160M2-8	5.5	13.1	725	86.0	0.74	72.4	1.9	6.0	2.2	69
YE3EJ160L-8	7.5	17.4	730	87.5	0.75	98.1	1.9	6.0	2.2	72
YE3EJ180L-8	11	25.0	725	89.0	0.75	145	1.9	6.0	2.2	72
YE3EJ200L-8	15	33.2	730	90.4	0.76	196	2.0	6.5	2.2	75
YE3EJ225S-8	18.5	40.6	735	91.2	0.76	240	2.0	6.5	2.2	75
YE3EJ225M-8	22	46.8	735	91.5	0.78	286	2.0	6.5	2.2	75
YE3EJ250M-8	30	62.6	735	92.2	0.79	390	1.9	6.5	2.0	77
YE3EJ280S-8	37	76.5	740	93.0	0.79	478	1.8	6.0	2.0	78
YE3EJ280M-8	45	92.6	740	93.5	0.79	581	1.8	6.0	2.0	78
YE3EJ315S-8	55	111	740	93.8	0.81	710	1.8	6.5	2.0	84
YE3EJ315M-8	75	151	740	94.0	0.81	968	1.8	6.5	2.0	85
YE3EJ315L1-8	90	181	740	94.5	0.81	1161	1.8	6.5	2.0	85
YE3EJ315L2-8	110	218	740	94.8	0.82	1420	1.8	6.5	2.0	85
Synchronous speed 600 r/min
YE3EJ315S-10	45	99.6	590	92.0	0.75	728	1.5	6.0	2.0	85
YE3EJ315M-10	55	121	590	92.5	0.75	890	1.5	6.0	2.0	85
YE3EJ315L1-10	75	162	590	93.0	0.76	1214	1.5	6.0	2.0	85
YE3EJ315L2-10	90	191	590	93.4	0.77	1457	1.5	6.0	2.0	85

Mounting
Conventional mounting type and suitable frame size are given in following table(with "√")

Frame

basic type

derived type

B3

B5

B35

V1

V3

V5

V6

B6

B7

B8

V15

V36

B14

B34

V18

80~112

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

132~160

√

√

√

√

√

√

√

√

√

√

√

√

-

-

-

180~280

√

√

√

√

-

-

-

-

-

-

-

-

-

-

-

315

√

-

√

√

-

-

-

-

-

-

-

-

-

-

-

If there is no other request in the order or agreement, terminal box standard position is at the right side of the frame; data above may be changed without prior notice.
