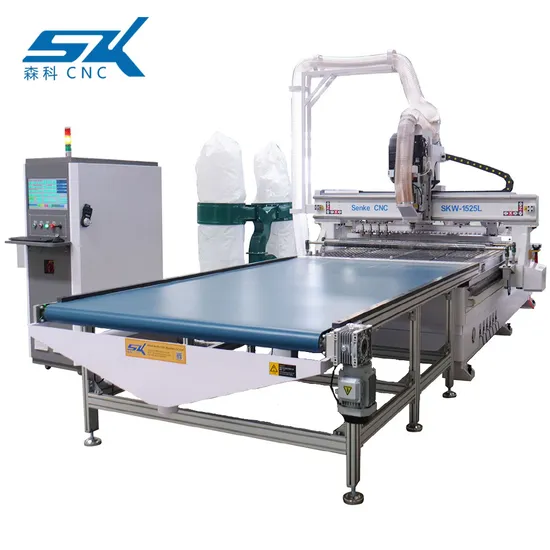

1224 1325 1530 Automatic Loading and Unloading Wood Cutting Atc CNC Nesting Machine for Wood Cabinet Door Making

1224 1325 1530 Automatic Loading and Unloading Wood Cutting Atc CNC Nesting Machine for Wood Cabinet Door Making

US$11,500.00
1-2 set
US$11,300.00
3-9 set
US$10,900.00
10+ set

Basic Info.

Certification
ISO, CE, SGS
CNC or Not
CNC
Voltage
220V, 380V, 415V
Kay Words
Woodworking CNC Router
Rails
Taiwan Tbi Ball Screw
Control System
Nc Studio/DSP/Mach3/Optional
Body Structure
Thicken Steel Made
Motor
Stepper Motors(Servo Motors and Driers Optiona)
Spindle Power
3.2kw Watercold/3.5kw Aircold/Optional
Software
Artcam
Guide
Taiwan Hiein/PMI 20 Square Rails
Spindle Speed
18000-24000rmp
OEM
Supplied
Working Dictate
G Code
Flash Memory
512m
Tool Sensor
Yes, Included
Auto Oil Lubricator
Yes, Included
Table
T-Slot /Vacuum
Transport Package
Standard Plywood Woodenbox
Specification
1300*2500mm
Trademark
SENKE
Origin
China
HS Code
8465990000
Production Capacity
200sets/Month

Product Description

1325 2030 2140 auto loading and unloading wood furniture production atc cnc nesting router machine for cabinet making Product Description
Main features: 1.Taiwan imported syntec or LNC control system, LCD screen touch operate with easy learn ,fully function.
2.Italy imported HSD brand 9kw aircooling spindle, supply enough strong power, stably run and use, at the same time higher precision.
3.Japan imported yaskawa servo motors and drivers, high speed, long life and higher precision.
4.Big size gear rack keep the machine run stabely.
5.Taiwan imported hiwin/pmi25-30 square rals.
6.Dust collect and vacuum table for optional choose.
SKW-1325L cnc router with ATC straight line
Working area (X*Y*Z)
1300*2500*200mm
Body structure
strong thicken steel made
X, Y Structure
Taiwan Miko rack and pinion
rails
Taiwan 25 HIWIN square rails
Z Structure
Taiwan TBI ball screw
X, Y Resolution
<0.01mm
Max Moving Speed
60000mm/min
Max Engraving Speed
30000mm/min
XYZ traveling positioning accuracy
±0.01mm
XYZ repositioning accuracy
±0.01mm
Spindle power
9kw HQD/HSD aircooling spindle
Spindle Speed
0-18,000rpm
Voltage
380v/3phase or as customer needed
Drive type
Japan yaskawa servo motors and drivers
Operating system
Taiwan Syntec control system
Working Dictate
G Code
Tool sensor
Yes,included
Auto oil lubricator
Yes,included
Wire protect
Yes,included
Running Environment
Temperature: 0ºC~45ºC
package
Export wooden box
After packed size
3.3*2.2*1.9M
G.W
1400kgs

Working Samples
Feedback
Our Company Jinan Senke CNC Machine Co.,ltd . committs to the industralization of CNC equipment development, our mainly products including stone engraving machine,glass engraving machine, wood engraving machine,tombastone engraving machine,adveristing engraving machine, laser engraving/cutting machine ,peen /laser marking machine and other cnc equipment etc. The company 's products cover the stone, wood adveristing, art crafts, building models ,electronics CAD /CAM industry mold ,construction decoration, indentification signs and other industries. Seeking to maximize customer satisfaction is our service tenct,company pays attention to custmer demand, including the domestic and international clients, in pursuit of quality, based on conditions existing technlogy can meet our customers customization,human and cultural services, also follow the advancement of technology can meet our customers ,the pursuit of quality Improvement,while technology R&D investment funds, developing new products , to provide high quality global advanced CNC engraving equipment the company's products have been distributed in Shandong,Bejing,Tianjin,Henan,Hebei,Anhui,Shanghai,and Jiangsu, Zhejiang,Jiangxi, Hunan,Hubei,Chongqin etc meium and samll cities across the country and the region, while some products ware exported to Southeast Asia, the Middle East,Africa, Europe and America, and its excellent quality, outstanding performance and perfect after-sell services win customers acclaim. Jinan Senke CNC Machine Co,ltd adhering to the "integrity as fundamental to quality of survival, innovation and development" business philosophy ,is willing to work with people who with insight, cooperation, mutual truct, win-win and common development.
Certificates
Packing & Delivery
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to customer's requirements for loading the whole container or LCL at Qingdao port.
FAQ
1. Q: Are you a factory or trading company?
A:We are a manufacturer with export license
2. Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
3. Q: How does your factory do regarding quality control?
A: "Quality is priority? Senke people always attach great importance to quality controlling from The very beginning to the very end: 1).All raw material we used are environmental-friendly; 2).Skillful workers care every details in handling the producing and packing processes; 3).Quality Control Department specially responsible for quality checking in each process.
4. Q: what kind machine do you offer?
A: we senke professional wood,marble,metal,foam etc various cnc routers.at the same time, meet customer requirements,laser cutting/marking machine, dot peen marker available.
5. Q: what kind materials your machine can process?
A: according to parts adopt,the senke cnc router suitable for all kinds of materails,including metals and non-metals,such as types of wood,marble,granite,metals(aluminum,brass,cooper, steel etc),foam(EPS),PVC,PCB board,double-colour board,glass,tiles etc etc.
6. Q: how shall i choose the models?
A: different models suitable for different materials,just told us,what your mainly materials,what the materials size and what the mainly job need the machine do. we senke engineer will supply you the best solutions.
