US$45.00-65.00
|
1 Piece
(MOQ)
|
Basic Info.
Installation
Direct Connected
Usage
Multi-Functional Energy Meter
Electric Equipment
Three-phase Four-wire
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Measuring Energy Range
0-999999
Output Voltage
AC 250V/5A, DC 30V/5A
Communication Interface
RS-485/Modbus-RTU
Rated Current
75mv by Shunt Sensor
Measuring
I/U/P/Ep/Demand/Max/Min
Power Supply
AC/DC 80-270V, DC 12/24V
Specification
72*90*63.5mm
Production Capacity
20000PCS/Per Month
Product Description

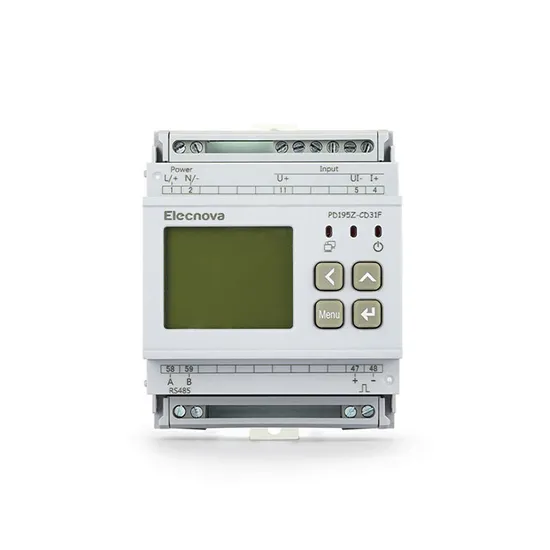

Product Name: Din rail mount 1000V direct input EV charger DC Energy Meter
PD195Z-CD31F is a DC rail-mounted electric energy meter designed and developed by ELECNOVA for EV Charger. The product can measure 1000V DC voltage, and a variety of auxiliary power supplies can be selected to adapt to different application environments of customers. Through the RS485 communication interface, it can be easily integrated with various intelligent power distribution systems and energy management systems to share monitoring data.
Accuracy | U/I/P 0.5, Energy 1 |
Data refresh rate | 1s |
Measuring | Voltage | Input | DC 1000V |
| | | 50V~1200V |
| | | 0.20% |
| Current | Input | DC 75mV |
| | Range | 0.002In~1.2In |
| | Accuracy | 0.20% |
| Power | Accuracy | 0.50% |
Power supply | Working range | | AC/DC 80~270V, DC24, DC12V |
| Power Consumption | | ≤1W |
Communication | RS485, Modbus-RTU |
Baud rate 1200~38400bps |
Protection level | | | IP20 |
Working temperature | | | '-10~85ºC |
Relative humidity | | | ≤95%RH |
Pollution class | | | 2 |
Altitude | | | 2000m |
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
