Water-Based Spray Booth European Standard Spray Booth Painting Equipment
| US$9,820.00-12,150.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
BZB-8400
Type
Spray Booth
Certification
CE
Substrate
Steel
Brand
Bzb
Coating
Painting
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Voltage
as Require
Quality
Middle Level
Certificate
CE, ISO:9001
Color
White, Red, Orange, Blue.......
Transport Package
Polyfoam and Carton
Specification
CE ISO9001: 2000
Trademark
BZB
Origin
Guangzhou, China
HS Code
84198990
Production Capacity
500sets/Year
Product Description

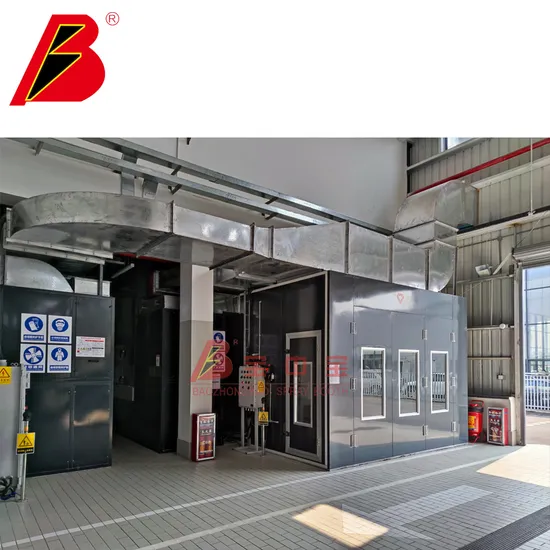

Vehicle Spray Paint CE Standard Paint Booth With Exhausted Big Capacity Intake FanModel: BZB-8400
| BZB-8500 Model Spraying&baking Booth | ||
| Outside size:mm | 7040×5500×3450 | |
| Inside size:mm | 6900×4000×2650 | |
| cabin system | 1,wall panel:EPS (polystyrene) insulation board,thickness 70mm,with life span 20 years. 2,entrance doors with aluminum frames. 3,full ramps made of embossed steel. | |
| air outlet and inlet system | 1,the YDW series centrifugal fan is of Siemens technology, this fan has low noise, large air volume,low energy consumption, etc. air inlet fan modelYDW4.5L;air capacity:14000m 3 /h;pressure800Pa;velocity:940rpm;power4KW;quatity:2sets. air outlet fan modelYDW5.6M;air capacity:20000m 3 /h;pressure800Pa;velocity:900rpm;power7.5KW;quatity:1set. 2,the ait inlet cabinet and air outlet cabinet is aluminum framed. | |
| air purification system | dual filtering structure:the primary fillter can capture granules larger than 15μm;the ceiling filter can capture granules larger than 5μm,with the total filtering rate 98%. | |
| heating system | 1,Italian RG3S diesel burner,16,0000calaries per hour,with fuel consumption5~6kg/vehicle, heating time 5~7minutes. 2,SUS304 stainless steel heat exchanger,argon arc welding,with heating-exchanging rate 90%. 3,th fuel tank is 50L,equipped with Fuel display device and diesel filtering device. | |
| lighting system | 32 pieces of lamps equipped with ballasts,and 16 pieces of bottom lamps,1000LUX. | |
| control system | spraying&baking switch,light switch,emergency stop,breakdown alarm,timer. | |
| environmental system | muti-layers of fiberglass filter and shelf with active carbon,ensuring a high level of environment-friendliness. | |
| others | 1,with one tool box where the spraying tools can be put. 2,with one set of Frame rail made of stainless steel,where little spare parts can be put and painted. | |
