180L Pre-Heated Solar Hot Water Heater with Copper Coil for Residential House with Pressure Water

180L Pre-Heated Solar Hot Water Heater with Copper Coil for Residential House with Pressure Water

US$261.00-273.00 1 Set (MOQ)

Basic Info.

Model NO.
SFD47185818
Max. Capacity
180L
Structure
Compact Type
Pressure
Unpressurized
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Composition
Tank&Frame&Vacuum Tube
Certification
CE, ISO9001, CCC, RoHS, CB, SASO
Transport Package
Carton
Specification
180L
Origin
Jiangsu, China
HS Code
8419120000

Product Description

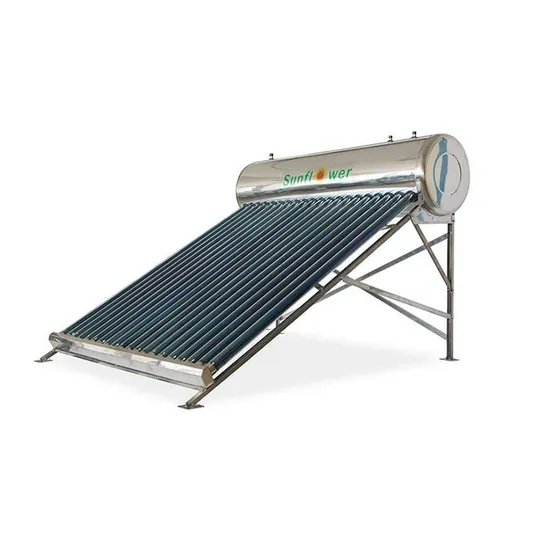

180L Pre-Heated Solar Hot Water Heater with Copper Coil for Residential House with Pressure Water
SFD47185818 High absorption and low reflection solar water heater SFD47185818 is a pressurized solar water heater with a copper coil (heat exchanger), the water tank itself is not under pressure. A copper coil is placed inside the water tank, and the water flows through the coil and is heated by the hot water in the water tank. The use of non-pressurized water tanks reduces costs. Use a copper coil (heat exchanger) to get pressurized hot water, and the bath is more comfortable and relaxing.
SFD47185818 can be intelligently connected with gas water heaters to automatically control hot water effluent and maximize the use of solar energy.
SFD47185818 provides fresh hot water for safer and healthier use.

Size of Product

Model SFD47185818
Capacity 180L
The Number of users 4-6 people
Inner tank SUS304, diameter 360
Outer tank Stainless steel,diameter 470mm
Welding procedure Automatic double - sided argon gas protection welding
Insulation Polyurethane 55mm, temperature drop 2ºC/12h
Brackets Stainless steel 1.2mm,20°/30°/40°/45°
Solar vacuum tubes Net aperture area:1.701Quantity and specifications: 18pcs*58*1800mmMaterial: 3.3 high borosilicate glassCoating: AL/N/ALAbsorptivity>93%Reflectivity<8%
Heat efficiency G=1000W/m2, temperature rise 45ºC/day
Package/volume/weight Carton/0.61cbm/76kg
Packing quantity 48/20GP,98/40GP,115/40HQ
Feature

SFD47205818 is a solar water heater unit with the lowest cost of obtaining high pressure hot water. Adding a copper coil device (heat exchanger) in the non-pressure storage hot water tank, the water flowing through the coil is heated by the hot water in the water tank, thereby providing high pressure fresh hot water, the bath is more comfortable and relaxed, and the use is safer. healthier.SFD47205818 can be intelligently connected with gas water heaters to automatically control hot water effluent and maximize the use of solar energy.SFD47205818 provides fresh hot water.Affordable Price, High Adopt natural circulation, 100% solar energy, no running cost; low cost, no need for post-maintenance, safe use for fifteen yearsThe solar vacuum collector tube absorbs solar energy through a high-efficiency AL/N/AL coating and converts it into usable heat. The vacuum is applied between the double-layer glass to effectively prevent heat loss. Bracket The bracket installation of solar hot water systems through a professional design of structural mechanics, which is not only solid and safe, but also easy to install. It's suitable to all kinds of roof structure and form, such as flat roof, sloping roof, tiled roof, metal roof and so on.
Solar heat storage water tank The solar water heater tank barrel adopts food grade stainless steel SUS304 material, good corrosion resistance, safe, non-toxic and no pollution. To protect the family with water safety and good health.
Solar water tank with automatic argon arc welding and argon double protection can effectively prevent the surface oxidation. Strict measures that control welding process can better protect SUS304 crystal structure not being destroyed. The service life of the barrel is more than 15 years.
Solar water tank with polyurethane insulation, good process and 55mm thickness, to ensure that the temperature drop of hot water is less than 2ºC within 12h.
Solar Water Heater Advantages 1. Fresh pressure hot water, bathing is more comfortable and healthier.
2. The use of natural circulation, 100% solar energy and do not need to run cost.
3. Solar collector adopts a double-layer vacuum glass tube, high thermal efficiency and durable service life.
4. The use of plug-in connection between solar collector and insulation water tank and very easy to install.
5. Parts with low cost, no maintenance and no expensive maintenance costs.
6. The use of food grade stainless steel SUS304 manufacturing barrels, no pollution and no corrosion, to keep water quality clean and sanitary.
7. Using ultra-thick polyurethane insulation, a long time to keep the tank temperature constant.
8. Can be combined with the use of electricity, gas and other alternative energy.
