US$100.00-2,000.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Appearance Quality Testing Machine Type
Paper and Board Folding Tester
Fabric Style Testing Machine Type
Paper and Board Folding Tester
Technological Characteristic Testing Machine Type
Paper and Board Folding Tester
Textile Fabric Testing Machine Type
Paper and Board Folding Tester
Universal Textile Testing Machine Type
Paper and Board Folding Tester
After-sales Service
12 Months
Standards
GB/T457; Qb2679.5; ISO 5626
Certificate
CE, ISO 17025
Power Supply
1pH AC 220V, 50Hz/60Hz
Application
Case Board, Craft Paper, Paperboard etc.
Paperboard Folding Tester
Test Folding Time of Paper
Transport Package
Standard Export Wooden Case
Specification
330x290x510mm
Packaging & Delivery
Package Size
43.00cm * 39.00cm * 61.00cm
Package Gross Weight
50.000kg
Product Description
Product Description

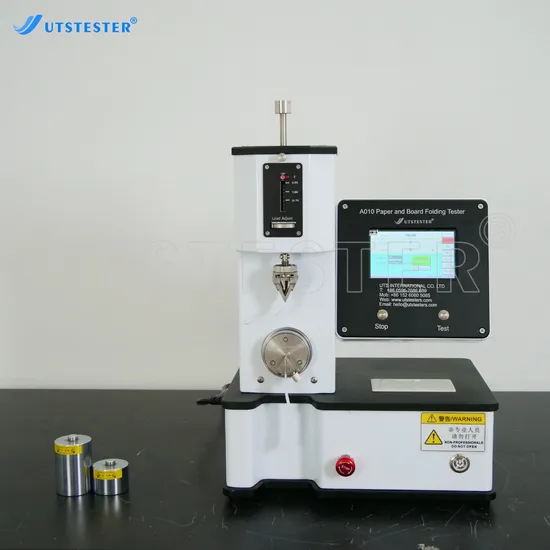

Paper folding tester is used to test folding time of paper, it can also be used to test other materails that need to have endure folding function, such as case board, craft paper, paperboard, corrugated paper grey paper.
Standard
GB/T457; QB2679.5; ISO 5626 |
Features Save the initial Settings when the power is off, and the test is automatically reset; Automatic measurement, intelligent judgment function, breakpoint automatic stop to save data; Independent suction ventilation and heat dissipation system, suitable for long-term fatigue test internal heat; Application Range
Various paper, case board, craft paper, paperboard, corrugated paper grey paper. |
Product Parameters
Model | Technical parameters: |
Pressure Measurement range | 5000N |
Measuring size selection: | (350×350×400)mm |
Resolution Ratio | 0.01N |
Force accuracy | ±1% or less |
Deformation amount error | ≤±1mm |
Test force test range | 0.4%~100%FS |
Parallelism of platen | ≤1mm |
Test speed | (55±5) mm/min |
Upper and lower air shift speed | 140 mm/min |
Unit interchangeability | N/Lbf /kgf |
Human-machine interface | liquid crystal display, with curve display |
Printer | modular one-piece thermal printer |
Working Environment | temperature (20 ± 10 ° C), humidity < 85% |
External dimensions | (L × b × h): 580 × 440 × 850mm |
Weight | about 150KG |
