Different Structure Hiflow PP Plastic Pall Ring for Random Packing

Different Structure Hiflow PP Plastic Pall Ring for Random Packing

Product Description

Product Description
Different Structure Hiflow PP Plastic Pall Ring for Random Packing

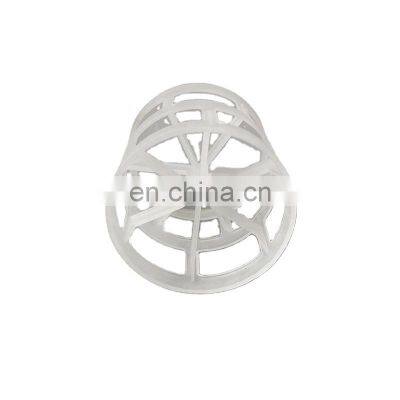

Plastic tower packing filter media column packing is an advanced improvement of rasching ring, the walls of it is open, height and diameter are the same and it has 4 diametrical ribs towards the inside of each "floor". Its structure improves distribution of gas-liquid and its efficiency can be improved above 50% and only has half of pressure drop compared with rasching ring.
Specification

Material

  Model
Size
Number per volume
Surface area
Void Volume
Dry Packing
Factor


D*H*δ mm
n/m3
m2/m3
%
m-1

PP PVC PVDD and so on
Dg16
16×16×1.0
180000
274
90
376

Dg25
25×25×1.2
49000
213
91
285

Dg38
38×38×1.4
13600
151
91
200

Dg50
50×50×1.5
6300
100
92
130

Dg76
76×76×2.6
1830
72
92
92

Performance of plastic tower packing:
* Higher capacity and lower pressure drop than ceramic packing.
* Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.
* Relatively high liquid hold-up allows good absorption efficiency with slow chemical reaction.
* Lower sensitivity to liquid and vapor distribution quality allows use with conventional liquid distributors.
* Ring and spoke construction provides high mechanical strength, which allows use in deep beds.
Application of plastic pall ring packing:
Widely used in chemical industry, Alkali industry ,protection of environmental, petroleum industry ,coal gas industry,etc .It’s
available for the distillation and absorption of a liquid and gas, atmospheric and vacuum distillation unit, crude distillation
unit, desulphurization system, gas liquid separator/separate of the gas and liquid etc.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.What's the MOQ?
A: Our MOQ is 1cubic meter. The price will be a lillte higher if the quantity is less than 1 cbm.2. Are you factory?
A:Yes, we are professional manufacturer of plastic tower packing with more than 10years experience.
