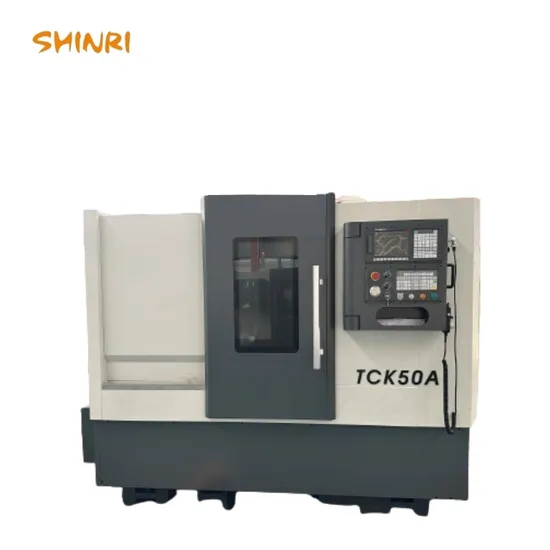

Tck50A-500 Slant Bed and Linear Guide Way CNC Lathe Processing Length 500mm

Product Description

Product Description
TCK50A machine features
High accuracy Taiwan linear guide ways
Higher speed spindle unit, optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece Casting slant bed CNC lathe TCK50A machine tool use
The machine is suitable to process all kindly to process all kinds of small and middle-sized shraft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body.
Product Parameters

Item	Specification	Unit	TCK50A-500
Machining capacity	Max. swing over bed	mm	Φ560
	Max. swing over cross slide	mm	Φ300
	Max. processing length	mm	500
Travel	Max. travel X axis	mm	240
	Max. travel Z axis	mm	540
Spindle	Spindle speed	r/min	3000
	Spindle nose		A2-6
	Spindle hole diameter	mm	Φ66
	Spindle unit	mm	200
Tailstock	Max. travel of tailstock	mm	80
	Tailstock taper	Morse	Morse5#
	Tailstock diameter	mm	70
Chuck	Hydraulic chuck		10″
Rapid rate	Rapid rate (X/Z)	m/min	30
Control system	CNC system		Optional
	Power of spindle motor	kW	11
	X/Z axis repeatability	mm	+/- 0.005
	X/Z axis feed motor torque	Nm	X:10 Z:10
Turret	Tool stations	tools	8T/12T
Machine dimension		mm	2700*1950*1950
Machine weight		KG	3600

Company Profile
SHINRI CNC Machinery Group is consisted of Jiangsu Shinri Heavy lndustry Science &Technology Co., Ltd, Jiangsu Shinri Gear Systems Co., Ltd Ningxia Shinri Changcheng Machinery Co., Ltd, Ningxia Shinri Changcheng Casting Company Co., Ltd. Lt is subordinate to the New United Group. Shinri products covered three time-honored brands, respectively Shinri, Changcheng and Duoleng and 12 different products series. So far Shinri becomes one of the biggest machine tool manufacturers covering nearly alltypes of machines in China.
By embracing new, high and outstanding technology, Shinri opens his hands to escalate his customers from their traditional applications and gives optimized solutions. The two R&D centers and manufactory bases, in Changzhou and Yinchuan, have totalarea of premises of 700 thousands m and 300 thousands m modernized plants. We introduced a good number of high precision mother machines from world first class makers and the yearly machine production reaches to 3500 pieces or more. In Yinchuan city, by invested 600 mllion RMB, the first phase of construction of foundry plant has established with yearly capacity 40 thousand tons With strong financial, intelligent and technical supports, the company is gigantic in R&D and manufactory.
Its products list covers VMC, HMC, CNC lathe, gantry boring milling/machining center/5 faces/5-axis synchronous, floor type boring miino/machining center, end facing & centering machine, drilling machine, FMC, FMS, Railway gear box, Wind power gear box and industrial gear box etc. The products are broadly applicable to aerospace, automobile, shipbuilding, electronic appliance, new energies sources, railway traffic, engineering mechanic, petro chemistry, die tooling and vocational education...etc.
As a national enterprise endowed with the mission of rejuvenating Chinese traditional industry, Shinri will follow the concept ofputing people first, making innovations & building a future of excellence. Work under the guiding principle of providing the highquality products & best service for customers in order to become the most competifive CNC machine tool manufacturer & bestsolution provider at home & abroad.
