Factory Price Indoor CATV House Amplifier Optional with Return Path

Factory Price Indoor CATV House Amplifier Optional with Return Path

US$30.00
1-19 Pieces
US$25.00
20-49 Pieces
US$20.00
50-199 Pieces
US$18.00
200+ Pieces

Basic Info.

Model NO.
HA3803A/B-R
Certification
CE, ISO, RoHS, GS
Condition
New
Frequency (Forward Patch
47/87-862MHz
Frequency (Return Path
5-30/65MHz
Ha3803A
7va/~198- 250V/50Hz
Ha3803b
5va/~24-65V/50Hz
Gain (Forward Path)
32dB
Gain (Return Path with Rpxx-01/ Raxx-0)
20/-1.5dB
Dimension
107×148×53mm
Transport Package
1PCS Per Carton
Specification
CE, RoHS, ISO9001
Trademark
SHG or OEM
Origin
China
HS Code
8543709200
Production Capacity
10000PCS Per Month

Packaging & Delivery

Package Size
61.00cm * 45.00cm * 21.00cm
Package Gross Weight
22.000kg

Product Description

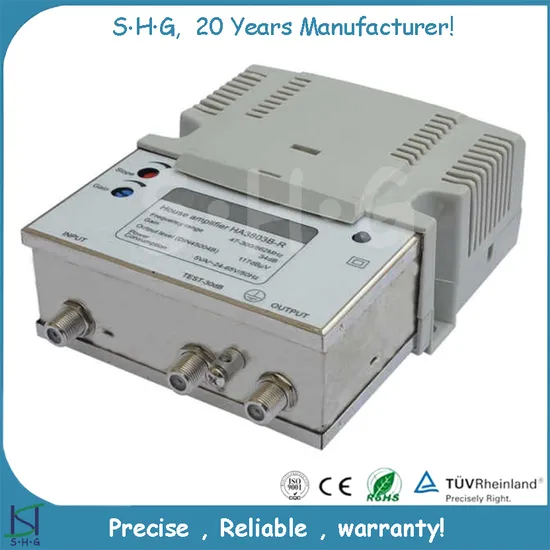

SHG HA3803 series CATV house amplifiers are designed for amplifyin and distributing TV signals in CATV networks.
House amplifiers (in text-amplifiers) are intended for amplifying and distributing TV signals in cable TV networks.
The amplifier are produced with built-in power supply for powering from mains ~198--250V and for remote powering from line ~24--65V(depending on type). The amplifiers have one input and two output.
The amplifiers are provided for plug-in return path amplifier and interstage attenuator.
Features
1. Type: House amplifier
2. Gain Adjustment: 20dB;
3. One input and two output;
4. Plug-in return path and interstage attenuator.
House amplifiers are designed intended for amplifying and distributing TV signals in cable TV networks.
The HA3803 series house amplifiers are made with built-in power supply for powering from mains ~198--250V and for remote powering from line ~24--65V(depending on type).
The HA3803 house amplifiers have one input and two output.
The HA3803 house amplifiers are provided for plug-in return path amplifier and interstage attenuator.
Specification
Type HA3803A-R HA3803B-R
Frequency
Range
forward path 47/87*-862MHz
return path 5-30/65*MHz

Gain
forward path 32dB**
return path with RPxx-01/ RAxx-01 20/-1.5dB
Frequency Response** ± 0.5dB**
Gain Adjustment 20dB
Slope Adjustment Typical 18dB
Maximum Output Level IMD3=60dB(DIN45004B) 117dBµ V
Maximum Output Level IMD3=60dB(EN50083-3) 111dBµ V
Maximum Output Level IMD2=60dB(EN50083-3) 114dBµ V
Input and Output Return Loss*** 14dB
Noise Figure 6dB
Test Point Attenuation -30dB

Power
Consumption

mains powering
7VA/~198-
250V/50Hz
-
remote powering - 5VA/~24-65V/50Hz
AC Pass Current (through IN and OUT, switchable) - 0.4A max
Operating Temperature Range -20~+50
Dimensions 107× 148× 53mm
Weight(packed) 0.66kg 0.43kg

Other Optical Transmission Equipment Other Optic test instruments Certificates
ISO9001:2008, CE, RoHS, REACH Our Advantages Why Choose us
FAQ FAQ
Q1: Are your company factory?
SHG: Yes! SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group. Q2: Do you company offer OEM service?
SHG: Yes! OEM available, your logo & reference on products & package available.
Q3. What's your products lead time?
SHG: Some are on stock, lead time is 2 days; some are not on stock, usually it take 7-25 days after order confirmed (deposit received). Q4. Where is your nearest sea-port and airport? SHG: The nearest sea-port is Ningbo, Shanghai.
The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge.
Q5. What's your Payment Term? SHG: We perfer T/T. 30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method.
Q6. Quality and Reputation: SHG: SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.
