US$10.00-12.50
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
NJ-314 Solenoid Electronic Vending Machine Locker
Certification
RoHS, CCC, CE
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Garage, Community
Working Principle
Electronically Controlled Lock
Function
Fail -Safe, Fail-Secure
Holding Strength
1200lbs(600kg)
Lock Size
110lx25wx31.5h(mm)
Strike Struiture
Zinc Die-Casting
Optional Functions
Lock Status Sensors
Suitable for
European Standard Narrow Wooden & Aluminum & Glass
Strike Plate Dimensions(L X W X D)
110lx25wx31.5h(mm)
Transport Package
Neutral Package
Specification
CE, ROHS, SGS, GMP
Origin
Guangdong, China (Mainland)
Production Capacity
20000
Packaging & Delivery
Package Size
55.00cm * 22.00cm * 32.00cm
Package Gross Weight
10.000kg
Product Description

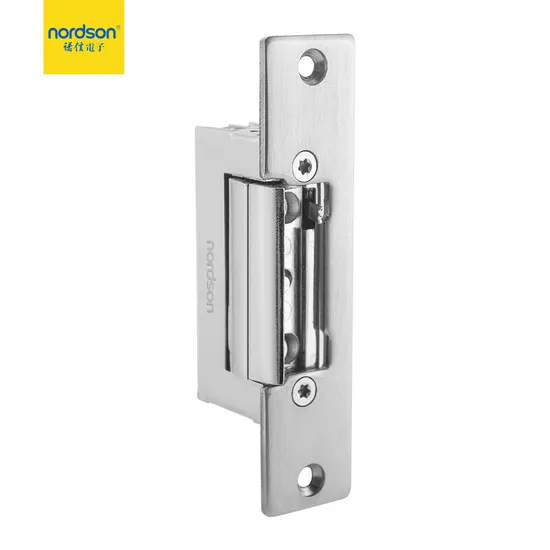

European Standard Adjust Lock-Tongue Fail-Unlocked Solenoid Electronic Vending Machine Locker Lock
NJ-314 is European standard electric strike lock with adjustable mode for Fail locked & Fail Unlocked.It works with magnetic force generated by electromagnetic field for locking/unlocking,particularly with short circuit protection.This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality aluminum for high hardness,corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc.
Specification:
Version | Fail-unlocked Special Design:Adjust Lock-tongue to Fail-locked style |
Shear strength | 1200Lbs(600kg) |
Lock Status Sensors | NO |
Rated Operating Voltage | DC 12V |
Standby Current | 650mA |
Optional Functions | Lock Status Sensors |
Face place material | High Aluminum |
Surface Temp | Low Temperature |
Ambient temperature in °C | -10°C - +55°C |
Suitable for | European standard Narrow Wooden & Aluminum & Glass & Fireproof &Metal door |
Strike Plate Dimensions(L x W x D) | 110Lx25Wx31.5H(mm) |
Weight in kg | 0.3kg |
CE-mark for building | YES |
Rohs-mark for building | YES |
Function:
1.Pass 1200lbs super linear static thrust test
2.Mode option: Fail locked & Fail Unlocked
3.Suitable for all European standard doors with adjustable tongue distance
4.Freely adjustable working mode for Power-to-open & Power-to-lock
5.Direct installation on metal door frame with mounting hole
6.Pass test of high temperature aging 100,000 times
7.Made of high-quality Aluminum alloy for high hardness,corrosion resistance & anti-deformation
8.CE Certificate & MA Certificate approved
