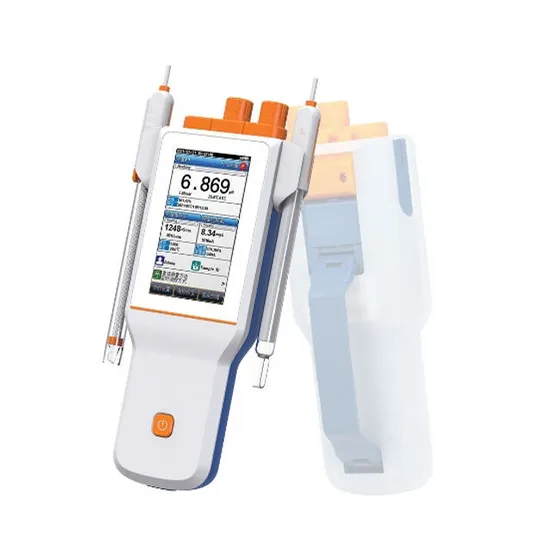

M510t-a Handheld Lab Water Analyzer Multi-Parameter pH/Ec/ISE/Temp. (mV/ORP/ pX/Resistivity/TDS/Sal.) Meter

M510t-a Handheld Lab Water Analyzer Multi-Parameter pH/Ec/ISE/Temp. (mV/ORP/ pX/Resistivity/TDS/Sal.) Meter

US$1,007.72
1-2 sets
US$895.82
3-4 sets
US$784.17
5-9 sets
US$727.94
10+ sets

Basic Info.

Model NO.
M510T-A
pH Calibration Points
up to 8
pH Range
-2.000 to 20.000 pH
pH Resolution
0.1, 0.01, 0.001pH
Mv/ORP Accuracy
± 0.1 Mv or ± 0.03%
Dimensions
90 *255 *40 mm
Customized Support
OEM
Mv/ORP Range
-2000.00 to 2000.00 Mv
Mv/ORP Resolution
0.1, 0.01 Mv
Classification
Other
Power
AC Adapter, 100-240V AC Input
Transport Package
Wood Box
Trademark
Haicoer
Origin
Shanghai, China
Production Capacity
5000 Set/Sets Per Month

Packaging & Delivery

Package Size
9.00cm * 25.00cm * 40.00cm
Package Gross Weight
6.800kg

Product Description

Product Overview M510T-A Multi-parameter Analyzer GENERAL FEATURES Color High contrast LCD touchscreen, 4.3 inches. Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management and etc. Multi-reading feature allows auto-read, timed-read and continuous-read. Automatic/Manual temperature compensation ensures accurate results. Auto-hold feature senses and locks the measurement endpoint. Data Storage 1000 sets for each parameter (GLP-compliant). Data analysis feature helps user review, compare and recalculate results. Support for USB communication. Auto-power off feature effectively extends the battery service life. Reset feature automatically resumes all settings back to factory default options. IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements. pH 1-8 points calibration with Standard Recognition. Selectable pH buffer groups, including USA, NIST, DIN, GB, MERK, JIS. User-defined pH buffer or buffer group is supported. Automatic electrode diagnosis with pH slope and offset display Ion 1-6 points calibration. Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, pX, ppm, ppb, etc. Multi-measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode. Over 10 methods are built-in, including F-, Cl-, Br-, I-, NO3-, BF4-, NH4+, K+, Na+, Ca2+, Cu2+, Pb2+, Ag+ and etc., user-defined method is supported. Conductivity 1-5 points calibration automatically recognizes the standard solutions. Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor. Temperature compensation type (none, linear, pure water). Large color touch screen. Easy operation and comfortable experience. Method management. Various methods are built-in, available for methods customization. Support for Bluetooth. Assortment of accessories.
Model M510T
Parameters pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)

pH
Range -2.000 to 20.000 pH
Resolution 0.1, 0.01, 0.001pH
Accuracy ± 0.002 pH
Calibration Points Up to 8
Standard Customization Yes
Calibration Reminder Yes
Standard Recognition USA, NIST, MERK, JIS, GB and DIN buffers
Slope Limit Yes

mV/ORP
Range -2000.00 to 2000.00 mV
Resolution 0.1, 0.01 mV
Accuracy ± 0.1 mV or ± 0.03%
EH ORP Mode Yes
ORP Calibration Points 1 custom point (relative mV)

pX
Range -2.000 to 20.000 pX
Resolution 0.1, 0.01, 0.001 pX
Accuracy ± 0.002 pX
Calibration Points Up to 6

ISE
Range 1.000e-9 to 9.999e+9
Units mol/L, mmol/L, g/L, mg/L, μ g/L, ppm, ppb
Resolution Up to 4 significant digits
Accuracy ± 0.3%
Calibration Points Up to 8

Conductivity
Range 0.000 μ S/cm to 3000 mS/cm
Resolution 0.001 μ S/cm minimum, various with range selection
Accuracy ± 0.5% FS
Reference Temperature 5, 10, 15, 18, 20, 25 ºC
Calibration Points Up to 5
Calibration Reminder Yes
Standard Recognition 10 μ S/cm, 84 μ S/cm, 500 μ S/cm, 1413 μ S/cm, 12.88mS/cm; 146.5 μ S/cm, 1408 μ S/cm, 12.85mS/cm, 111.3mS/cm
Resistivity Range 5.00 Ω ·cm~100.0 M Ω ·cm
Resolution 0.01 Ω ·cm minimum
Accuracy ± 0.5% FS
TDS Range 0.000 ppm~1000 ppt
Resolution 0.001ppm minimum, changed with range
Accuracy ± 0.5% FS
Salinity Range 0.0 ~ 80.0 ppt
Resolution 0.1ppt
Accuracy ± 1ppt

Dissolved
Oxygen Concentration
Sensor Type Polarographic
Range 0.00 to 99.99 ppm
Resolution 0.01 ppm
Accuracy ± 0.10 ppm
Calibration Reminder Yes
Calibration Points Air-saturated water or zero point
Barometric Compensation Yes
Manual Salinity Factor Correction Yes
Saturation Range (0.0 to 600.0)%
Resolution 0.10%
Accuracy ± 2.0%

Temperature
Range -10 to 135 ºC, 14 to 275 ºF
Unit ºC, ºF
Resolution 0.1
Relative Accuracy ± 0.1
Measurement Reading Mode Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temp. Compensation ATC, MTC
Data management Data Storage 1000 Groups
GLP Features Yes
Inputs pH Electrode BNC(Q9)
DO with Temp. Probe 4-pin aviation connector
Conductivity with Temp. Probe 5-pin aviation connector
Outputs USB USB 2.0 flash memory device, PC, scanner

Display options
Backlight Yes
Auto Shutdown 300, 600, 1200, 1800, 3600 sec., off
IP Rating IP65
Date and Time Yes
General Power Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
Dimensions 90 × 255 × 40 mm
Weight 500g (1.1 lb)
