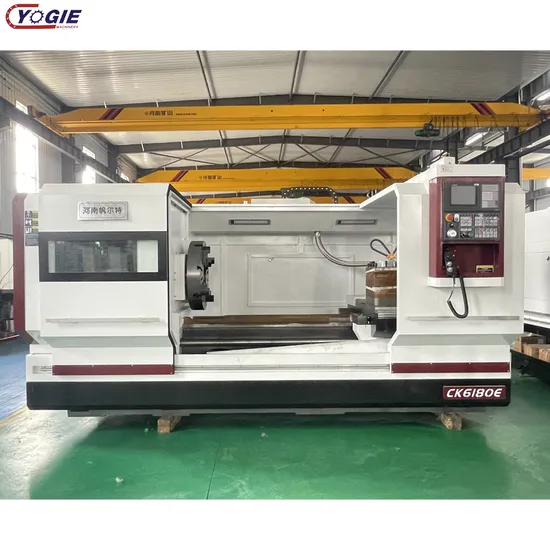

Ckj6163/6180 Metal Processing CNC Lathe Mill Turning Machine CNC Turning Lathe

Ckj6163/6180 Metal Processing CNC Lathe Mill Turning Machine CNC Turning Lathe

US$18,000.00-26,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CK-6180
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Bore(mm)
104
Spindle Motor Power(Kw)
11
No. of Spindles
Single
Number of Axes
3
Travel (X Axis)(mm)
420
Travel (Z Axis)(mm)
850
Weight (Kg)
2600
Max. Spindle Speed (r.p.m)
1000rpm/Min
Positioning Accuracy (mm)
0.01
Repeatability (X/Y/Z) (mm)
0.005
Voltage
380V
Max. Swing Diameter (mm)
500
Tailstock Sleeve Diameter
75
Transport Package
Box
Specification
Customized
Trademark
YOGIE
Origin
China, Henan

Product Description

Product Description
CNC LATHE
Our company is equipped with all kinds of advanced large-scale machining equipment, the main products are pipe thread lathe, CNC pipe thread lathe, oblique bed CNC pipe thread lathe, ordinary horizontal lathe, CNC lathe, obligue bed CNC lathe, heavy CNC lathe, turning iron compound turning center, CNC cylinder lathe, etc., with an annual output of more than 1000 sets ; it is widely used in petroleum exploitation, geological exploration, mineral mining, chemical smelting, pipeline construction, machinery manufacturing and ship construction all over the world.

Product Parameters
SPECIFICATION UNIT CKJ6163 CKJ6180(550)
Capacity Swing over bed mm 630 800
Swing over cross slide mm 350 520
Distance between centers mm 1000/1500/2000/3000/4000/5000/6000
Guideway width mm 550 550
Max. load capacity T 3 3
Spindle Spindle bore mm 104 104
Spindle bore taper - Metric φ120/MT5 Metric φ120/MT5
Spindle nose type - C11 C11
Spindle speed steps - VF.3 steps VF.3 steps
Spindle speed range rpm 10-1000 10-1000
Chuck mm φ315 3-jaw manual φ315 3-jaw manual
Turret Turret/tool post - NC turret 4 position NC turret 4 position
Tool shank size mm 32x32 32x32
Feed X axis travel mm 320 420
Z axis travel mm 850/1350/1850/2850/3850/4850/5850
X axis rapid traverse mm/min 4000 4000
Z axis rapid traverse mm/min 6000 6000
Tailstock Tailstock quill diameter mm φ100 φ100
Tailstock quill taper - MT5 MT5
Tailstock quill travel mm 250 250
Motor Main spindle motor kw 11 11
Coolant pump motor kw 0.125 0.125
Dimension Width x Height mm 1750x1850 1850x1900
Length mm 3300/3800/4300/5300/6300/7300/8300
Weight Net weight T 3.7/4.1/4.5/5.3/6.1/6.9/7.7 3.9/4.3/4.7/5.5/6.3/7.1/7.9

Company Profile
Our Customers

FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
