High Precision Stainless Steel Letters Making Notcher Auto Channel Letter Bending Machine

High Precision Stainless Steel Letters Making Notcher Auto Channel Letter Bending Machine

US$7,980.00 1 SET (MOQ)

Basic Info.

Model NO.
BWZ-C1
Warranty
2-year
Condition
New
Certification
CE, SGS
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy
Type
Coiling Bending Machine
Name
3D Channel Letter Bender / Letter Bending Machine
Key Words
Channel Letter Bender
Function
Automatic Feeding, Slotting and Bending
Applicable Material Alu=Aluminum
Stainless Steel Flat Alu Folding Alu Channelume
Max Material Width
160mm
Max Material Thickness
1.5mm
Slotting System
Motor Control
Air Pressure
0.6MPa
File Format
Dxf, Ai, Plt
Transport Package
Plywood Case Package
Specification
CE, SGS, TUV
Trademark
BaoYuanTong
Origin
Weifang, China
HS Code
8479819000
Production Capacity
200sets/Month

Packaging & Delivery

Package Size
287.00cm * 88.00cm * 170.00cm
Package Gross Weight
600.000kg

Product Description

Product Description

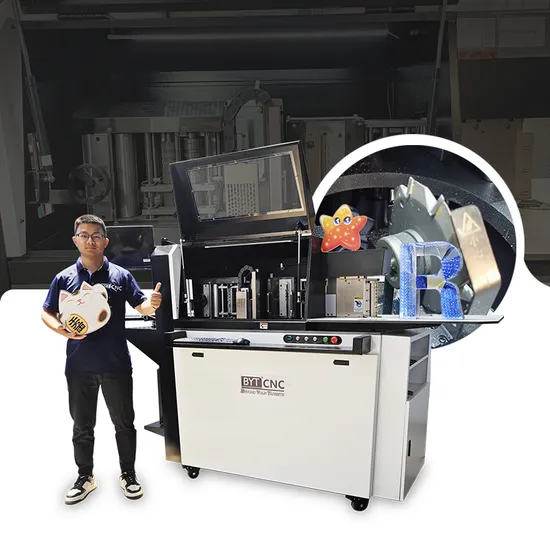

Multi Function channe leltter bending machine for Stainless steel and Aluminum
Application:
The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to do the luminous characters for the shops, it needs to use the channel letter bending machine to make the production. The channel letter bending machine can process many materials (stainless steel, iron sheet, aluminum profiles, aluminum strip ) and does not damage the material. The processing precision is high and the speed is fast. The material thickness and tool adjustments are all adjusted by software, more convenient, and faster.
Whole machine feature:
1.Whole machine guarantee 2 years, the motor guarantee 3 years
2. Processing material width:10-160mm, Thickness: Aluminum 0.3-1.5mm, Stainless steel 0.3-1.2mm
Suitable for most of Aluminum profile
3.All machining parts be treated with hard chromium plating, which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.
4.In the overall structure the working platform using 14mm whole plate deal with three times plain grinding finish, the internal workpiece thickness of 17mm, ensures the long-term working stability and accuracy
5.The motor and driver use the transformer with voltage digital display device to replace switching power, monitor the voltage situation, and remind customers to do the corresponding treatment when the voltage is unstable.
6.The software has a Length closed-loop control system, length precision ≤0.1mm.
Meantime Independent development software system, which can be updated according to customer need and more easy to use.
7.Whole machine weight meets 530kgs and more stable.
8.Install cutting protection device to prevent cutting debris from splashing.
Advertising widely used automatic CNC 3d channel letter bender / letter bending machine
Technical data:
Model BWZ-C1
Function Automatic feeding, slotting and bending
Applicable Material Stainless Steel, Aluminum
, Galvanized,Iron, Channelume
Material Width(mm)
SS=Stainless steel
Alu=Aluminum
SS:≤160 Flat Alu:≤160
Fold Alu≤130 Channelume:70,90,110
Material Thickness SS :0.3~1.2mm Alu:0.3~1.5mm
Bending Radius 7mm
Feeding φ45mm Feeding wheel +Guide Material +Encoder+Exit control device
SS slot Motor Japan Fuji servo motor
Slotting Motor control
Bending Coupled-Double copper shaft flat arc bender+Stainless steel arc bender
Control System DC bender
Power <2000W
Air Pressure 0.6MPa
File Format Dxf, Ai, Plt
Working Voltage 220V/ 50-60HZ/1P
Net Weight(kgs) 500
Overall Size(mm)(L*W*H) 2680*880*1590

Why Choose Us
Full Automatic Signs Making CNC Channel Letter Bending machine
Company Experience
1.Founded in 1996, with registered trademarks "BAOYUANTONG" and "BYT".
2.Own more than 30 patents for invention, utility model, and design.
3.Passed the "SGS certification" for 9 consecutive years, and all products have obtained the " Europe CE certification"
4.Exported to over 150 countries including North America, Europe, South America, the Middle East, and have more than 2000 clients.
5.Provide one-stop procurement, let customer's purchase more efficiently and safely.
6.According to the customer's different requirements, provide equipment customized solved plan and sample making.
Sales Service
1.Technical people have professional English ability and directly with customer communication.
2.24H/7D online service, when you need we all will be here.
3.Before delivery, accept the international third party to finish the inspection.
4.Regular return visits customers for technical guidance, and get high praise from customers.
5.For the products making, have a professional technical engineer provide a process guide.
Various Training Service
1.Provide U disk with detailed operation manual and video.
2.Via online chat way service for customers at any time.
3.Via remote control software to provide online guidance.
4. Customer come to our factory for learning how to operate the machines.
5.Engineer can go aboard for training if the customer needed.
Optional parts
1) Aluminum profiles: We have different types and color aluminum profiles to choose from, when you need I give you a quotation sheet.
2) Computer: When this machine working, there are control cards that need install on a computer. For control system no limited.
3) Compressor: Need 0.3-0.6Mpa Air compressor working.
Feedback
Our responsibility -- provide stable and reliable performance of the equipment and provide high-quality service, let every user satisfaction. (Click the picture, listen to user's voice)
Package and delivery
1.After the completion of machinery production, the factory inspectors shall check and put the equipment into storage. Before the delivery of the equipment, the after-sales engineer shall conduct a secondary inspection and ensure the quality of the machine meets the customer's requirements
2.Clean the whole machinery, protect the parts that need oil, and check the related parts again.
3. Anti-collision package edge: All parts of the machine are covered with some soft materials.
Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4. Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time and money.
FAQ
1. What is a Channel letter bending machine?
Introduction of the machine: mainly produces metal 3D letters and lightboxes
2. How to choose a suitable Letter bending machine?
1) According to local needs, which letters are more popular, aluminum alloy or stainless steel letters.
2) If the budget is less than 5000$, then you can choose an aluminum letter bending machine
More than 5000$, consider multifunctional one
3. What are the functions of the Letter bending machine?
It with automatic feeding, slotting, and bending functions, high precision, and save labor cost
4. What are the functions of the Letter bending machine?
Together with the machine, there is a detailed English install and operation manual &&video, meantime before you get this machine, our service engineer will contact you in advance, all questions you can contact them in anytime.
5.What is the type of shipping and producing time?
We offer EXW, FOB, CIF, DDU, and DDP which you can choose as you like.
When you pay for the deposit, We will arrange production which about 7-15days delivery.
