Drying Agent Silica Gel Filling Sealing Machine for Spiral Plastic Cap Effervescent Tablets Cover

Drying Agent Silica Gel Filling Sealing Machine for Spiral Plastic Cap Effervescent Tablets Cover

US$1,000.00-20,000.00 1 Set (MOQ)

Basic Info.

Model NO.
FRTB-ZH1
Automation
Automation
Certification
CE, ISO
Material
Stainless Steel
Capacity
1800-3600 PCS/H
Labor Needed
1 Worker
Guarantee
1 Year
After-Sale Service
Engineers Aviliable to Service Machine Overseas
Cap Type
Spiral Desiccant Closures
Transmission Type
Flexible
Automatic Production Line
Comprehensive
Flexible Production
Intelligent Manufacturing
Rhythm
Non Flow Production Line
Production Scope
Parts Production Line
Transport Package
Wooden Box
Specification
ISO9001: 2000
Trademark
FURI
Origin
China
HS Code
8422303090
Production Capacity
10 Sets/Month

Product Description

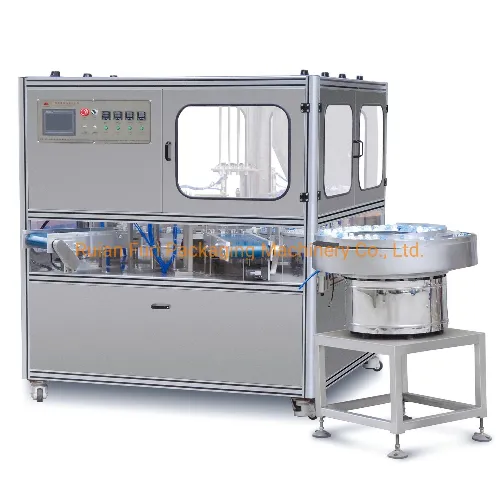

Spiral Desiccant Closures Drying Agent filling sealing Machine
1. Scope of Application:
Desiccant dryer filling sealing machine is widely used in the industry of Bottle Cap, Medicine, Foodstuff, Household Chemicals, Package, etc. It is an ideal filling and sealing machine. And this machine is specialized for spiral desiccant closures.
2. Details of Machine
3. Application Function
The desiccant dryer filling sealing machine combines desiccant spring caps Automatic sorting,feeding,desiccant dryer gel filling into caps,cardboard hot sealing,NG cap detect & Rejection,counting functions in one line
4 stations working in the same time.
Capacity:3000--4000 pcs/Hour.
Automatic counter is installed.
Re-set Function is provided.
The machine meets all state Environmental safety,Machinery safety,Electrical safety standards.There are safety top covers,over load protection,Emergency pressing functions installed to protect operators.
Vibrator Cap feeders,horizontal vibrating conveyor and belts connect with PLC panel under European standard.
All the detective sensor cable is express change connect,which are easy to change in the future.
There is not damages during the products working processes in the assembly machine,any wearing,scratches,pressing marks,greasy dirt or deformed caused by machine are deemed to be unqualified
4. Technical Parameters:
Aluminum foil specification 15-35mm
Production capacity 4000pcs/Hour
Power 3KW
Compressed air 0.3m³/hour 6kg pressure
G/N.W 1600/1400KG
Rated Voltage 380V,three Phase,50 HZ

Our Factory
Maching Packing
More Details , Kindly contact us.
Attn:Becky Pan
Location: (Zhixin Industrial Zone)C-13-12, No.66, Tingchao Rd., Shangwang Street, Ruian, Wenzhou, Zhejiang, China
By Flight: Arrive at Wenzhou Airport
By Train: Arrive at Ruian Station
We customize all kinds of nob-standard bottle cap processing auto solutions.
