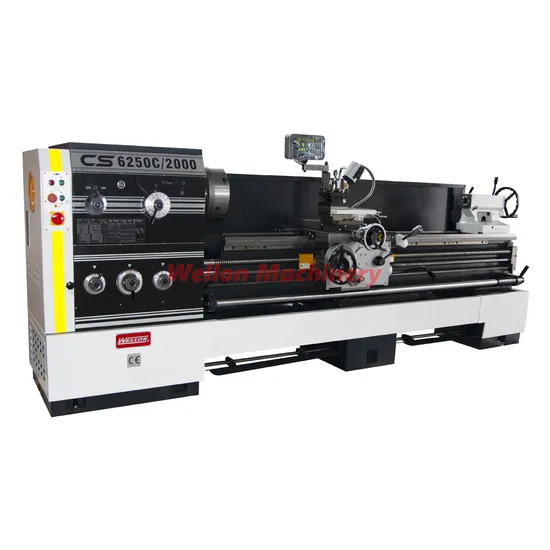

CS6250b Manual Lathe Machine/Gap Bed Lathe Machine
Basic Info.
Model NO.
CS6250B
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Swing Dia. Over Bed
500
Max. Swing Dia.in Gap
710
Max. Swing Dia. Over Slides
300
Spindle Bore Diameter
800
Bed Width
400
Max. X Travel
145
Max. Z Travel
320
Transport Package
Wooden
Specification
CE ISO900 rohs
Trademark
WELLON
Origin
Tengzhou China
Product Description
Detailed PhotosProduct Parameters
| SPECIFICATIONS | UNIT | CS6250B | |
| Capacity | Max. swing dia. over bed | mm | 500 |
| Max. swing dia.in gap | mm | 710 | |
| Max. swing dia. over slides | mm | 300 | |
| Max. workpiece length | mm | 1000 | |
| Bed width | mm | 400 | |
| Spindle | Spindle bore diameter | mm | 80 |
| Type of spindle nose | no | ISO 702/II NO.6 com-lock type | |
| Spindle speed | rpm | 24 steps 8-1400 | |
| Spindle motor power | KW | 7.5 | |
| Tailstock | Diameter of quill | mm | 75 |
| Max. travel of quill | mm | 150 | |
| Taper of quill (Morse) | MT | 5 | |
| Turret | Tool O.D. size | mm | 25X25 |
| Feed | Max. X travel | mm | 145 |
| Max. Z travel | mm | 320 | |
| X feed range | mm/r | 93 kinds 0.028-6.43 | |
| Z feed range | mm/r | 93 kinds 0.012-2.73 | |
| Metric threads | mm | 48 kinds 0.5-224 | |
| Inch threads | t.p.i | 48 kinds 72-1/4 | |
| Module threads | πmm | 42 kinds 0.5-112 | |
| Diametricpitch threads | t.p.i.π | 42 kinds 56-1/4 | |
| Others | Length | mm | 2632 |
| Width | mm | 975 | |
| Height | mm | 1270 | |
| Weight | kg | 2100 | |
Standard Accessories :
| 3-jaw chuck | 4-jaw chuck |
| Steady rest | Follow rest |
| Face plate | Drive plate |
| Dead centers | Splash guard |
| Oil tray | Longitudinal mechanical stop |
| Coolant system | Work lamp |
| Foot Brake | Wrench&spanners |
Optional Accessories :
| Live center |
| Quick change tool post (One body, 4 holders) |
| 2 axis Digital readout/1000mm |
| Thread chasing dial |
| Tapper turning attachment |
| Chuck guard |
| Tool post guard |
