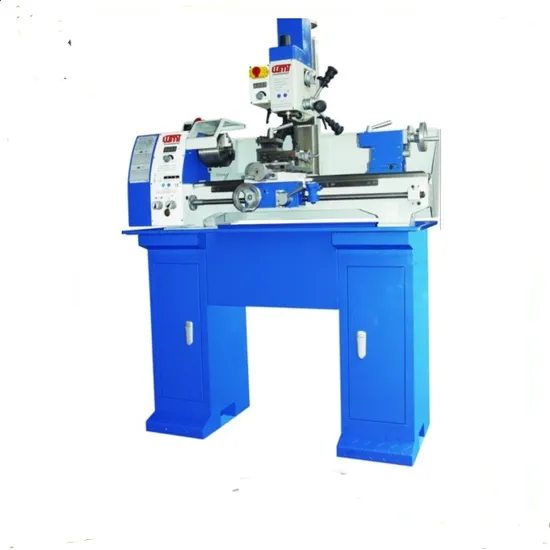

MPV280 Precision Multi Purpose Machine with Ce Standard
| US$1,800.00-2,100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MPV280
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Position
Power Source
Manual
Controlling Mode
Artificial
Setting Mode
Table
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Swing Over Bed
280mm
Spindle Bore
26mm
Transport Package
Standard Plywood Pakcsge
Specification
CE
Trademark
WMT
Origin
Anhui
HS Code
84589900
Production Capacity
50 Sets/ Month
Packaging & Delivery
Package Size
140.00cm * 60.00cm * 110.00cm
Package Gross Weight
250.000kg
Product Description
Feature
Multi-purpose lathe mill drill machine:
Most popular, widely useful variable speed lathe.
V-way bed is hardened and precision ground.
Spindle is supported by precision tapered roller bearing.
MT5 spindle hole gets more capacity.
High precision chuck.
T-slotted cross slide.
Power longitudinal feed allows threading.
Adjustable grids for slidedways.
Top design of gearbox gets more function.
Right and left hand threads cutting is available.
Tailstock can be off set for turning tapers(MT3).
Gear mill head gets more torque.
Mill head can be tilled.
Tolerance test certificate, test chart included.
Main specification
| Model | MPV250 | MPV280/700mm | |
| TURNING | Max.swing over bed | 250mm(10") | 280mm(11") |
| Distance between centers | 550/750mm( | 700mm(27-5/9") | |
| Swing over cross slide | 150mm(6") | 170mm(6-5/7") | |
| Width of bed | 135mm(5-1/3") | 180mm(7") | |
| Taper of spindle bore | MT4 | MT4 | |
| Spindle bore | 26mm(1") | 26mm | |
| Range of spindle speeds | 50-2500rpm | 50-2500rpm | |
| Range of longitudinal feed | 0.07-0.40mm/r | 0.07-0.40mm/r | |
| Range of inch threads | 8-56TPI | 8-56TPI | |
| Range of metric threads | 0.2-3.5mm | 0.2-3.5MM | |
| Taper of tailstock quill | MT2 | MT2 | |
| Motor power | 0.75kw | 1.1KW | |
| DRILLING & MILLING | Max.drilling capacity | Max.φ16mm(5/8") | Max.φ20mm(4/5") |
| Milling cap. of cutter head | Max.φ52mm(2") | Max.φ63mm(2-1/2") | |
| Milling cap.of end mill cutter | Max.φ16mm(5/8") | Max.φ20mm(4/5") | |
| Taper of spindle bore | MT2 | MT2 | |
| Sleeve travel | 52mm(2") | 52mm | |
| T T-slot size | 10mm(2/5") | 12mm(1/2") | |
| Range of spindle speeds | 50-3000rpm | 50-3000rpm | |
| Max.distance spindle to table | 280mm(11") | 380mm(15") | |
| Working range | 175mm(6-8/9") | 190mm(7-1/2") | |
| Motor power | 600W | 750w | |
| SHIPMENT DATA | Packing dimensions ( L×W×H ) | 1270×680×930mm | 1390×850×1060mm |
| Net weight | 180kg | 235kg | |
