US$10,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
MZLH320 MZLH350 MZLH420 MZLH508 MZLH678 MZLH768
Automatic Grade
Semiautomatic
Controlling Mode
Electrical Cabinet
Energy Saving
Energy Saving
Customized
Non-Customized
After-sales Service
Technical Consultant, Guide, Installation&Testing
Usage
Making Cat Litter/ Tofu Cat Litter
Size
2mm, 2.5mm, 3mm or Others
Transport Package
Wooden Box or Iron Frame
Specification
2800*1150*1730
Production Capacity
1000pieces/ Year
Product Description
2t/h pine wood cat litter machine bentonite tofu cat litter pellet machine price
TECHNICAL PARAMETER
Model | Constituent part | Power | Pellet size | Capacity | Weight | Dimension |
(KW) | (mm) | (T/H) | (KG) | (mm) |
MZLH320 | Screw Feeder | 1.1KW | 4-12mm | 0.3-0.4T/H | 1500KG | 2200*900*1300 |
Force Feeder | 0.55KW |
Pellet machine | 37KW |
MZLH350 | Screw Feeder | 1.1KW | 4-12mm | 0.5-0.6T/H | 2200KG | 2500*1100*1600 |
Force Feeder | 0.55KW |
Pellet machine | 55KW |
MZLH420 | Screw Feeder | 2.2KW | 4-12mm | 0.8- 1.2T/H | 3200KG | 2900*1150*2100 |
Force Feeder | 1.5KW |
Pellet machine | 90/110KW |
MZLH508 | Screw Feeder | 3KW | 4-12mm | 1.5-2.0T/H | 4500KG | 3000*1260*2150 |
Force Feeder | 1.5KW |
Pellet machine | 110/132KW |
MZLH678 | Screw Feeder | 3KW | 4-12mm | 2.0-2.5T/H | 5800KG | 3300*1450*2200 |
Force Feeder | 2.2KW |
Pellet machine | 160/200KW |
MZLH768 | Screw Feeder | 3KW | 4-12mm | 2.5-3.5T/H | 6500KG | 3300*1550*2200 |
Force Feeder | 2.2KW |
Pellet machine | 200/220KW |
FEATURE 2.1. Main drive adopts high accurate gear drive,with an output of about 20% higher than belt drive,and the die adopts the quick removing clamps.
2.2. The drive part of the machine(including motor)optimize the high quality bearings made in Switzerland and Japan,which ensure high efficient and steady driving with low noise.
2.3. Adopts the frequency -conversion speed ,regulating control to guarantee quality pellet feed.
2.4. Main spare parts, such as ring dies& rollers etc. are produced strictly according to high quality standard. Ring dies are produced by automatic CNC gun drill machine&coutersinking machine, heat treatment by vacuum furnace, with long service life and making good feeds.
2.5. The international advanced compensation type flexible coupling is of novel and compact structure,safety,low noise and less trouble.
CAT LITTER PROCESS TECHNOLOGY
1.Raw materials receiving& Mixing Process:
Raw materials can be tofu, bean curd residue, soybean curb residue, soyabean fiber, corn starch, pea flour, bentonite, corn flour, soyabean meal, guar gum and etc. Raw materials are mixed according to a certain formula and ratio.Mixing is considered to be one of the essential operations in cat litter processing.
2.Pelletizing Process:
Cat Litter pellet mill is the core equipment of the whole cat litter production line. According to different raw material, material formula and working condition, we can offer you different pellet mills.
3. Drying Process:
After cat litter is pelletized, the moisture content is high, cat litters are dired to about 8% and sterilized by our micro-wave dryer, it could be stored for long time.
4.Cooling& Sifting Process:
The dried cat litter is a little hot. Counter-flow cooler & sifter is designed to cool tofu bentonite cat litter and screen qualified cat litters. It can decrease the temperature of cat litters, after processing, you can get the qualified cat litter without fine powder.
5. Packing Process:Finally, tofu cat litter/ bentonite cat litter/ pine wood cat litter should be packed for transporting, storing or selling.
6.Automatic Electrical Control System(Customized):
With the automatic electrical control system, the production line is with high efficiency and convenient operation.
FLOW CHART OF CAT LITTER PRODUCTION LINE
We can design and customize different capacity, processing according to your formula and requirement.
Here is the flow chart for cat litter line for your reference.

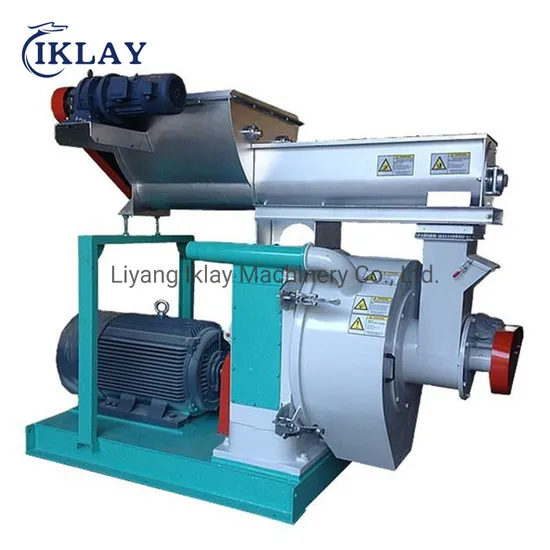

PHOTOS FOR CAT LITTER PELLET MACHINE
PHOTOS FOR CAT LITTER PRODUCTION LINE
