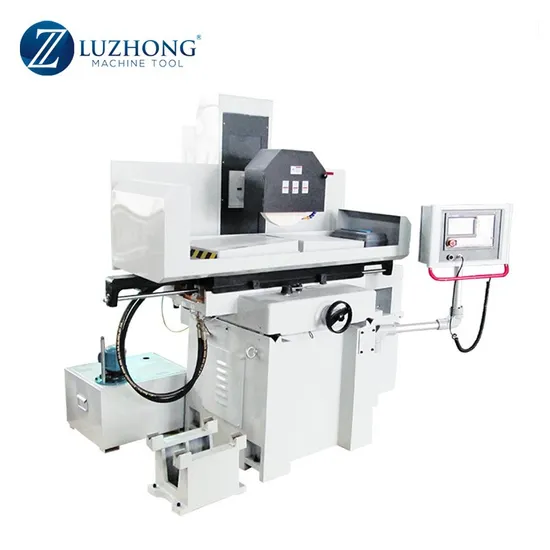

MK1224 Chinese manufacture 3 axis control system cnc surface ginding machine
| US$8,800.00-15,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
MK1224
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Model
MK1224
Worktable size
600x300mm
Max. travel of table
650x320mm
Table T slot
1x14mm
Special grinding wheel size
Ø300×30×Ø76.2
Distance spindle center line to working
520mm
Grinding wheel speed
1450 r/min
Shipping terms
EXW,FOB,CFR,CIF
Transport Package
Plywood Case
Specification
1630x1170x1940mm
Trademark
LUZHONG
Origin
China
Production Capacity
2000 Pieces/Year
Product Description
MK1224 Chinese manufacture 3 axis control system cnc surface ginding machineProduct Description
Product Parameters
| Specifications | Units | MYK1224 | ||
| workbench | Worktable size (L * W) | mm | 600x300 | |
| Max. travel of table | mm | 650x320 | ||
| Table T slot (slot number x slot width) | mm | 1x14 | ||
| Grinding head | Special grinding wheel size (o. d * w * i. d.) | mm | Ø300×30×Ø76.2 | |
| Distance spindle center line to working table | mm | 520 | ||
| Grinding wheel speed | r/min | 1450 | ||
| The amount of feed | Table longitudinal (left and right) speed | m/min | 3-25 | |
| Table transverse (front and rear) feed handwheel feed | m/min | 0.5-15 | ||
| Grinding head(up and down)automatic feed | mm | 0.005-0.05 | ||
| Grinding head up and down is fast lifting speed (approximate value) | m/min | 0.6 | ||
| Hydraulic system | Hydraulic motor | KW | 2.2 | |
| working pressure | MPa | 4 | ||
| Fuel tank capacity | L | 100 | ||
| Maximum flow rate | L/min | 20 | ||
| Motor power | Spindle motor | kw | 3 | |
| Cooling motor | W | 90 | ||
| Elevator servo motor | kw | 1.0 | ||
| Front and rear servo motor | kw | 1.0 | ||
| working accuracy | The process surface of the base level of the parallel degree | mm | 300:0.005 | |
| Surface roughness | μm | Ra0.32 | ||
| Machine weight | Net weight | kg | 1500 | |
| Gross weight | kg | 1600 | ||
| Suction cup specification | mm | 600x300 | ||
| External size (L * w * h) | mm | 2800×1600×1800 | ||
| Packing size (L * w * h) | mm | 2900×1700×2000 | ||
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
