High Quality Abundant Color Designs Spc Floor
| US$6.50-12.50 | 1,500 Square Meters (MOQ) |
Basic Info.
Model NO.
NVF0306-1
Function
Anti-Slip, Moisture Proof, Rot Proof, Wear-Resistant, Fireproof, Waterproof, Soundproof
Thickness
4mm, 5mm, 6mm
Lead Hardness
Semi-Rigid
Surface Treatment
Deep Embossed
Pattern
Wood Grain
Color
Single Color
State
Block
Usage
Household, Commercial
Click Types
Unilin, Valinge 5gi, I4f, Drop Lock
Profiling Machine
Homag
Gloss
Matt, Semi-Matt, Customized
Edge Treatment
Micro-Bevel, V-Groove Painting, Squre Edge
Back Options
EVA, IXPE, Cork
Certificate
Floorscore, Ce, SGS, ISO9001 etc
Transport Package
Carton&Pallet
Specification
6"x36" / 6"x48 / 7"x48" / 9" x 48"
Trademark
NEWGOOD
Origin
China
HS Code
3918109000
Production Capacity
1500, 000sq. M Per Month
Product Description
Product Name:High quality abundant color designs SPC floor
Product Specifications:
| Plank Thickness | 4mm,4.5 mm,5mm,5.5mm,6mm etc. |
| Wear Layer Thickness | 12mil,20mil etc./ 0.3mm, 0.5mm etc. |
| Material | 100 % virgin Material: PVC Resin,Calcium Carbonate,Stabilizer, Lubrication agent,Modifying agent. |
| Plank Sizes | Wood patterns: 1220x180mm,1220x150mm,930x150mm, 1524x180mm,1524x228mm,1828x180mm,1828x228mm etc. Stone and Carpet patterns: 300x600mm etc. |
| Loading Quantity | 4mm:2688 SQM/20GP |
| 5mm:2400 SQM/20GP | |
| 6mm:2200 SQM/20GP | |
| Warranty | 20 years for residential,10 years for commercial |
| Edge Detail | Squared edge & Micro-bevel without painting & Beveled with painting |
| Surface Treatment | UV coating |
| Surface Texture | Deep embossed, Wood Texture, EIR, Crystal, Hand-scraped,Slate,Leather, etc. |
| Backing Options | EVA,IXPE,Cork etc. |
| Installation | Valinge 5Gi, Valinge 2G, Drop Lock, Unilin, I4F |

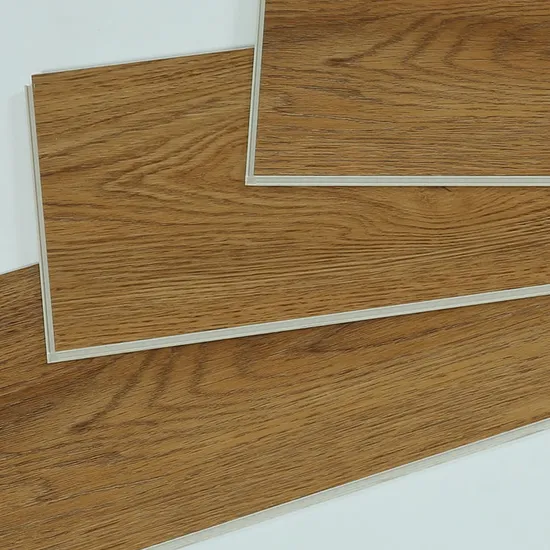

Product Photos:
Production Processes:
Technical Datas:
| Thechnical Data Sheet | |||||
| Item | EN Norms | Result | ASTM Norms | Result | Remark |
| Size | EN 427 | 1220x150 mm | ASTM F536 | 1220x150 mm | |
| Dimension Squareness and Straightness | EN 427 | Squareness:0.18mm | |||
| Straightness:0.07mm | |||||
| Chemical Resistance | EN 423 | Pass | ASTM F925 | Pass | available upon request |
| Color Fastness to Artificial light | EN 20105:B02 method A | Pass, >=Grade6 | ASTM F1515 | Pass | available upon request |
| Wear Resistance | EN 660-1 | Weargroup: T | available upon request | ||
| Resistant to impact | ASTM F1265 | Pass | available upon request | ||
| Dimensional Stability | E434 | Pass | ASTM F1700 | Pass, | |
| Residual Indentation | EN 433 | Pass, 0.06mm | ASTM F970 | Pass | |
| Slip Resistance | EN 13893 | Class DS | |||
| Behaviour to Fire | EN 13501-1 | Bf1-S1 | ASTM E648-06 | Pass/Class 1 | |
| Smoke Density | ASTM E662 | Pass, <=450 | |||
| Specifications | |||||
| Length x Width(mm) | 1220x150 | overall thickness(mm) | 5.5+1.5=7.0 | ||
| Wearlayer(mm) | 0.3 | Gloss level | 4-6° | ||
| Virgin materials | Yes | bevel edges on 4 sides | Micro bevel | ||
| UV matt coating | Yes | Special Glass fiber reinforced | No | ||
| Jiont | Click | Floating installation | No | ||
| Planks per box | 9 | Boxes per pallet | 60 | ||
| Pallets per 20 feet container | 20 | Gross weight per 20 feet container | 22800 kgs | ||
| Content per box(sqm) | 1.647 | Content per 20 feet container(sqm) | 1,976.40 | ||
Marketing Tools Available:
Certifications:
For more information, please feel free to contact us via E-mail or call me directly
