Heavy-Duty Flanging Machine for Mattress Manufacturing Machine

Heavy-Duty Flanging Machine for Mattress Manufacturing Machine

US$7,500.00-9,500.00 1 SET (MOQ)

Basic Info.

Mechanical Configuration
Flat-Bed
Overall Dimensions
1
Stitch Formation
Lock Stitch
Feed Mechanism
Manual
Max. Sewing Speed
5000 S.P.M
Type
Industrial Sewing Machine
Power
600W
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Max. Sewing Thickness
70mm
Stitch Length
0-6mm (Adjustable)
Transport Package
Polywood Case
Trademark
BCD
Origin
Jiangsu, China

Product Description

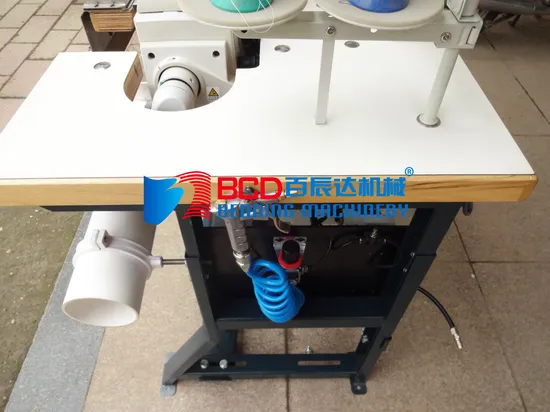

Product Description Product Application This machine is used for both overlocking and doing flanging on the mattress panel border. Its feature as: Taiwan KINGTEX modified ,HoHsing motor , strong-suction waste collection device, synchronization belt feeder, 5thread ,with non-woven fabric stand and system .
Technical data
Max.panel thickness 70mm
Overlocking width 25mm
Pressor foot lift 15mm
Needle stitch 0-6mm (adjustable)
Max. sewing speed 5000 S.P.M
Rated pressure 0.5-0.8Mpa
Sewing head type Japanese JUKI modified
Upper feeding belt Yes
Waste collection device Yes
Motor brand Ho Hsing(Taiwan)
Total motor power 600W
Packing & Delivery
Packaging
Size 980 (L) * 1230 (W) *1050 (D)
Weight 4.2 T
Packaging Details The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Delivery
Standard export packaging:
Outer package: standard export wooden cases.
Inner package: plastic paper or wrapped with stretch film and etc.
